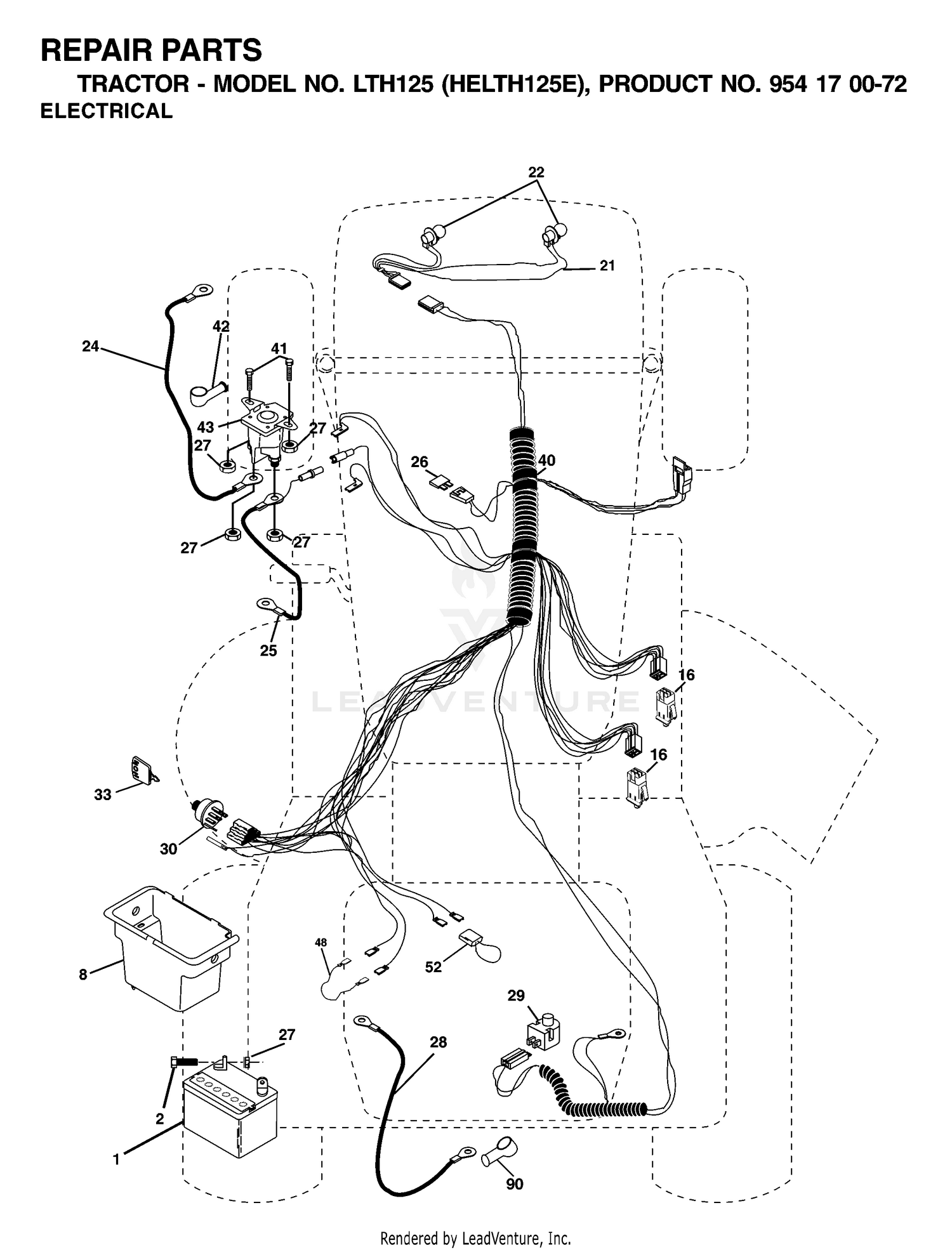

| Ref | Part Number | Description |
|---|
| 1 |
121-1658 |
SCREW-HH Price: $3.19 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
121-1744 |
LEFT ROPS ASM Price: $212.67 |
| 4 |
121-1632-03 |
ROPS-LOWER, RH Price: $212.67 |
| 5 |
121-1660 |
SPACER Price: $29.98 |
| 6 |
325-35 |
SCREW-HH Price: $2.37 |
| 7 |
3234-41 |
SCREW-HHF Price: $0.31 |
| 8 |
106-0877 |
SPACER-SHIELD Price: $11.68 |
| 8 |
532176689 |
BOX.BATTERY.FENDER Price: $9.99 |
| 9 |
121-1629 |
ROPS FOLD PIN ASM Price: $13.91 |
| 10 |
121-1642 |
ROPS-UPPER Price: $452.25 |
| 11 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 12 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
121-1604 |
BUMPER-RUBBER Price: $18.44 |
| 15 |
61-2220 |
SPACER Price: $9.77 |
| 16 |
121-1638 |
TUBE-VENT Price: $105.90 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 18 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 21 |
532175685 |
HARNESS.ASM.LIGHT WSL Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
110-5701 |
HOSE-FUEL Price: $14.62 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532179720 |
HARNESS.IGNITION Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
