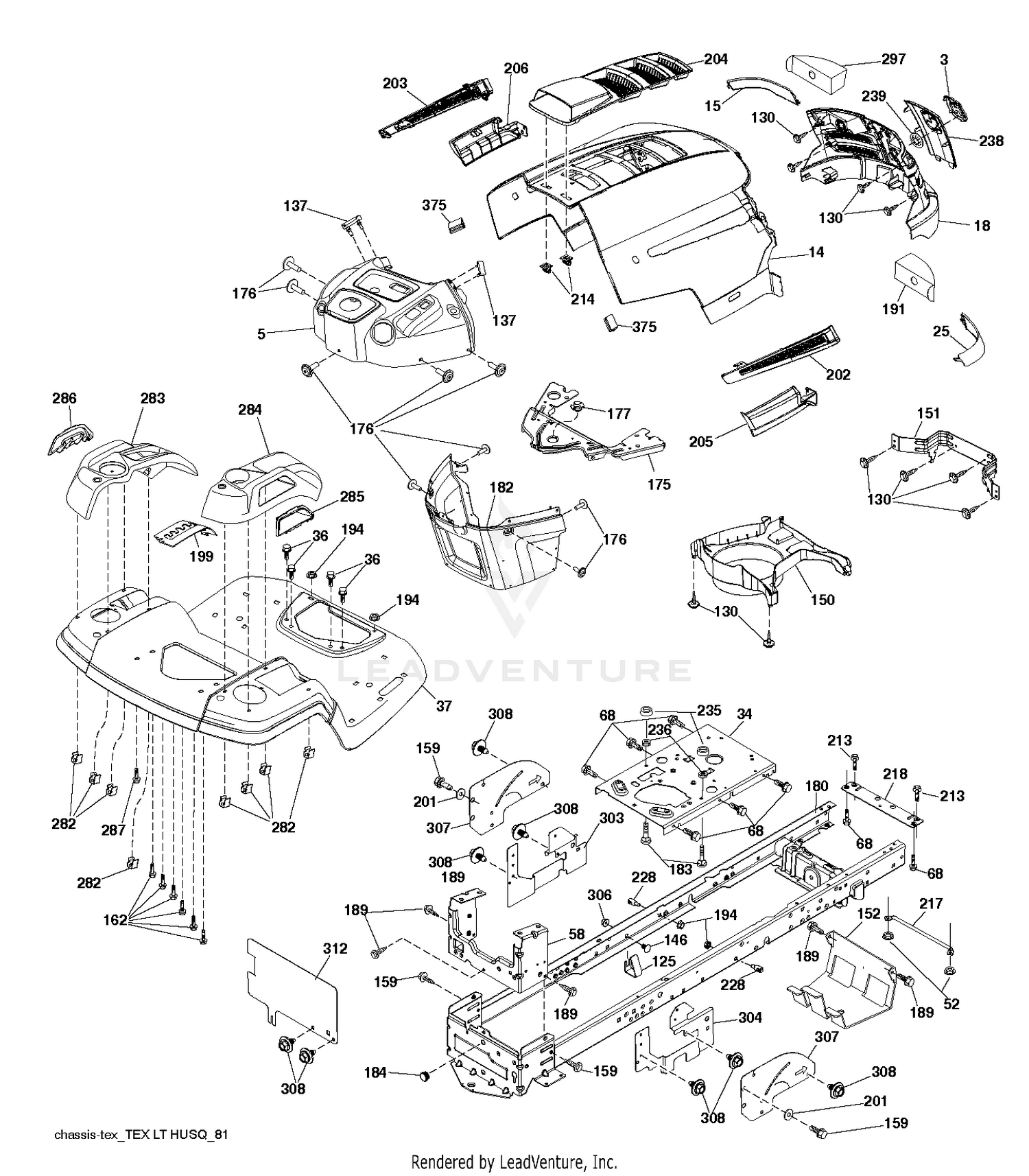

| Ref | Part Number | Description |
|---|
| 1 |
125-2018 |
HOUSING Price: $45.90 |
| 2 |
136-8002 |
LIFT ARM #2 Price: $382.73 |
| 3 |
136-8003 |
LIFT ARM #3 Price: $382.73 |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 581056301. Price: $5.99 |
| 4 |
63-8410 |
WASHER Price: $1.76 |
| 5 |
585529807 |
DASH.HUSLT.PTO.RS.CHG.SRV.498 This part replaces 585477907. Price: $84.99 |
| 6 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 7 |
120-6283 |
STUD-SHOULDERED Price: $3.32 |
| 9 |
125-2037 |
SHAFT Price: $88.55 |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 11 |
138-1248 |
PIVOT YOKE ASM This part replaces 107-2052. Price: $429.41 |
| 12 |
92-1298 |
PIN-LYNCH Price: $2.27 |
| 13 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 14 |
532441267 |
HOOD.HUSQVARNA.LT.ORANGE Price: $79.99 |
| 15 |
532406664 |
LENS.HUSQVARNA LT.LH This part replaces 532441428. Price: $14.99 |
| 16 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 17 |
107-4027 |
CAP Price: $12.59 |
| 18 |
110-0922 |
HOOP-CHAIN Price: $15.10 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
323-7 |
SCREW-HH Price: $0.65 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
84-2450 |
CHAIN-STRAIGHT, 4-LINK Price: $7.74 |
| 23 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 24 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 25 |
110-5345 |
WASHER Price: $2.29 |
| 25 |
532406663 |
LENS.HUSQVARNA LT.RH This part replaces 532441427. Price: $14.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441266 |
FENDER.TLT.FS.W/CUPHLD.ORANGE Price: $179.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532406662 |
AIR DUCT Price: $24.99 |
| 151 |
532407807 |
BRACKET PIVOT Price: $27.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
532199472 |
CROSSMEMBER Price: $24.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
531437601 |
CHASSIS WELDMENT This part replaces 532415064. Price: $219.99 |
| 182 |
532407176 |
DASH.LOWER.PREDATOR LT Price: $69.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 184 |
587554101 |
PLUG.DEMO.625 Price: $5.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
583358401 |
INSERT.REFLECTIVE.RH. This part replaces 532416501. Price: $11.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 199 |
532413485 |
PLATE.DECK.LIFT.HUSQ.LT Price: $9.99 |
| 201 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 202 |
532441342 |
VENT.SIDE.HUSQVARNA.LT.RT Price: $11.99 |
| 203 |
532406671 |
VENT SIDE HOOD This part replaces 532441343. Price: $8.99 |
| 204 |
532441375 |
SUBASM.TOP.VENT.HUSQ.LT Price: $17.99 |
| 205 |
532441344 |
SKIRT.SIDE.HUSQVARNA.LT.RT Price: $11.99 |
| 206 |
532441345 |
SKIRT.SIDE.HUSQVARNA.LT.LEFT Price: $11.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532407881 |
TRIM.HUSQ LT.668 This part replaces 532441374. Price: $19.99 |
| 239 |
532404883 |
IS ITO Price: $5.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532439151 |
CONSOLE.ASM.LFT.RSF.HUSQ.LT This part replaces 532442039. Price: $37.99 |
| 284 |
532439150 |
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT This part replaces 532439823. Price: $39.99 |
| 285 |
532416315 |
CONSOLE INSERT RH Price: $14.99 |
| 286 |
532416317 |
CONSOLE.INSRT.LH.HUSQ.LT.BLACK Price: $11.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532406665 |
INSERT REFLECTIVE Price: $6.99 |
| 303 |
587493402 |
SHIELD.LOWER.LH/LT/GT/BLK.EDIP This part replaces 587493401. Price: $22.99 |
| 304 |
587865102 |
SHIELD.RH.LOW.LT/GT.NON-30.PNT Price: $37.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 307 |
587494601 |
SHIELD.UPPER.LT.GT.ISO Price: $17.99 |
| 308 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 312 |
532425926 |
SHIELD.PNT.DRAWBAR.FRENCH Price: $9.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
