| Ref | Part Number | Description |
|---|
| 1 |
08201319 |

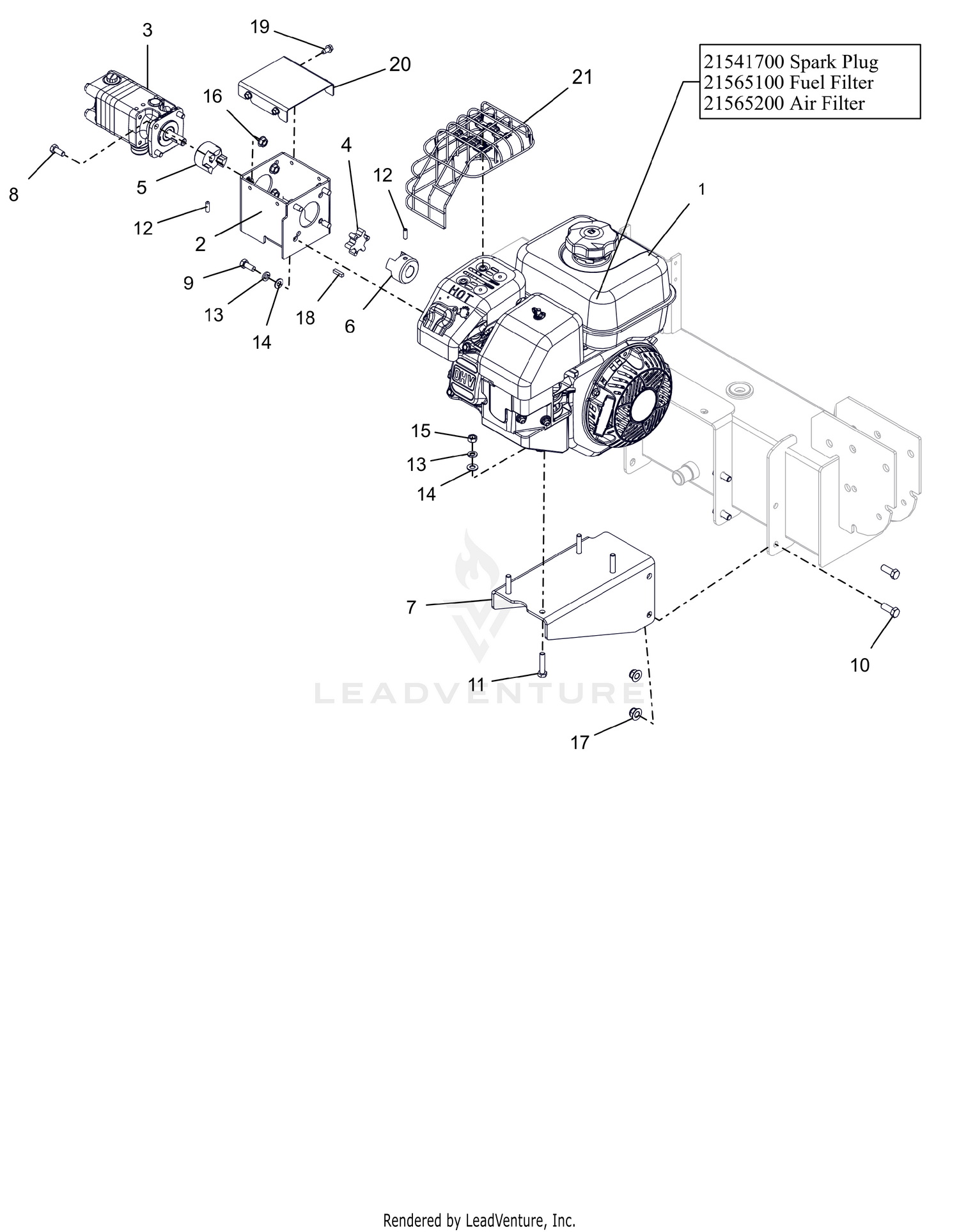

ENGINE, KOHLER SH265 (CARB) Price: Call Us |
| 1 |
11-8960 |
FASTENER ASM Price: $1.90 |
| 2 |
03858351 |
WLDMT, PUMP MOUNT BRKT Price: $48.95 |
| 2 |
5-1460 |
COVER-PINION, REEL Price: $6.07 |
| 3 |
03874000 |
PUMP,SPLITTER-13 GPM Price: $597.45 |
| 3 |
106-5408 |
GASKET-COVER This part replaces 5-1458. Price: $2.12 |
| 4 |
04586500 |
SPIDER - URETHANE Price: $5.45 |
| 4 |
3-9117 |
SHAFT-IDLER PINION, LH Price: $27.41 |
| 5 |
04586600 |
COUPLER - DRIVE 1/2" Price: $22.45 |
| 5 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 6 |
04586700 |
COUPLER - DRIVE, 3/4" Price: $23.95 |
| 6 |
12-1190 |
PINION-IDLER Price: $81.80 |
| 7 |
04966959 |
MOUNT-ENGINE Price: Call Us |
| 7 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 8 |
05901704 |
BLT,HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 8 |
47-4470 |
RETAINER-RATCHET RING, RH Price: $78.24 |
| 9 |
05902014 |
BLT, HEX .31-24X.750 G5 ZCC This part replaces 05947300. Price: $1.45 |
| 9 |
3-4170 |
RH IDLER RING ASM Price: $108.03 |
| 10 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 10 |
3-7445 |
STUD-RING, RATCHET Price: $26.01 |
| 11 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 11 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 12 |
06000222 |
SCR,SET .25-20X.75 PCPT SH Price: $1.95 |
| 12 |
17-2520 |
STUD-TYPE, DRIVE Price: $9.72 |
| 13 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC This part replaces 06307400. Price: $0.45 |
| 13 |
302-39 |
FITTING-PLUG Price: $10.74 |
| 14 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 14 |
3-3892 |
BEARING-FINGER, THROWOUT Price: $47.64 |
| 15 |
06500938 |
NUT, HEX .312-18 ZCC This part replaces 06529200. Price: $0.95 |
| 15 |
237-21 |
O-RING Price: $0.70 |
| 16 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 16 |
3283-1 |
PIN-GROOVED Price: $1.97 |
| 17 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 17 |
5-1464-03 |
HANDLE-RATCHET, THROWOUT This part replaces 5-1464. Price: $31.84 |
| 18 |
06606100 |
KEY-SQ .188X.75X.188 Price: $3.45 |
| 18 |
68-7530 |
BUSHING Price: $19.19 |
| 19 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 19 |
47-4430 |
BUSHING-FLANGED Price: $4.04 |
| 20 |
47-5640 |
SPACER-RUBBER Price: $1.76 |
| 20 |
51700600 |
COVER W/DECALS Price: $39.95 |
| 21 |
47-4460 |
BOLT-SHOULDER, ECC Price: $44.83 |
| 22 |
11-5049 |
LH GEAR CASE ASM This part replaces 11-9419. Price: $820.85 |
| 23 |
3-3904 |
FINGER-THROWOUT, RH Price: $49.71 |
| 24 |
281-3 |
PLUG-PIPE, SQH Price: $3.92 |
| 25 |
3219-10 |
NUT-HEX Price: $1.22 |
| 26 |
3256-15 |
WASHER-FLAT Price: $0.68 |
| 27 |
11-5059 |
RH GEAR CASE ASM This part replaces 11-9409. Price: $820.85 |
| 28 |
5-1457 |
GEAR-WHEEL, DRIVE Price: $352.84 |
| 29 |
95-1828 |
HUB-GEAR, RING Price: $97.60 |
| 30 |
84-8200 |
SEAL-OIL Price: $13.93 |
| 31 |
3262-3 |
RIVET-BUTTON HEAD Price: $0.88 |
| 32 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 33 |
254-78 |
BEARING-CONE Price: $12.22 |
| 34 |
106-5409 |
GASKET-CASE, GEAR This part replaces 3-5002. Price: $8.86 |
| 35 |
140-5509 |
ASM - GEARCASE COVER This part replaces 47-4060. Price: $75.48 |
| 36 |
49-4100 |
SHAFT-AXLE, STUB Price: $28.31 |
| 37 |
3254-17 |
WASHER-LOCK Price: $0.81 |
| 38 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 39 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 40 |
237-38 |
O-RING Price: $1.94 |
| 41 |
68-9970 |
GUARD-SEAL Price: $2.76 |
| 42 |
94-6305 |
DECAL-CLUTCH, RH Price: $6.85 |
