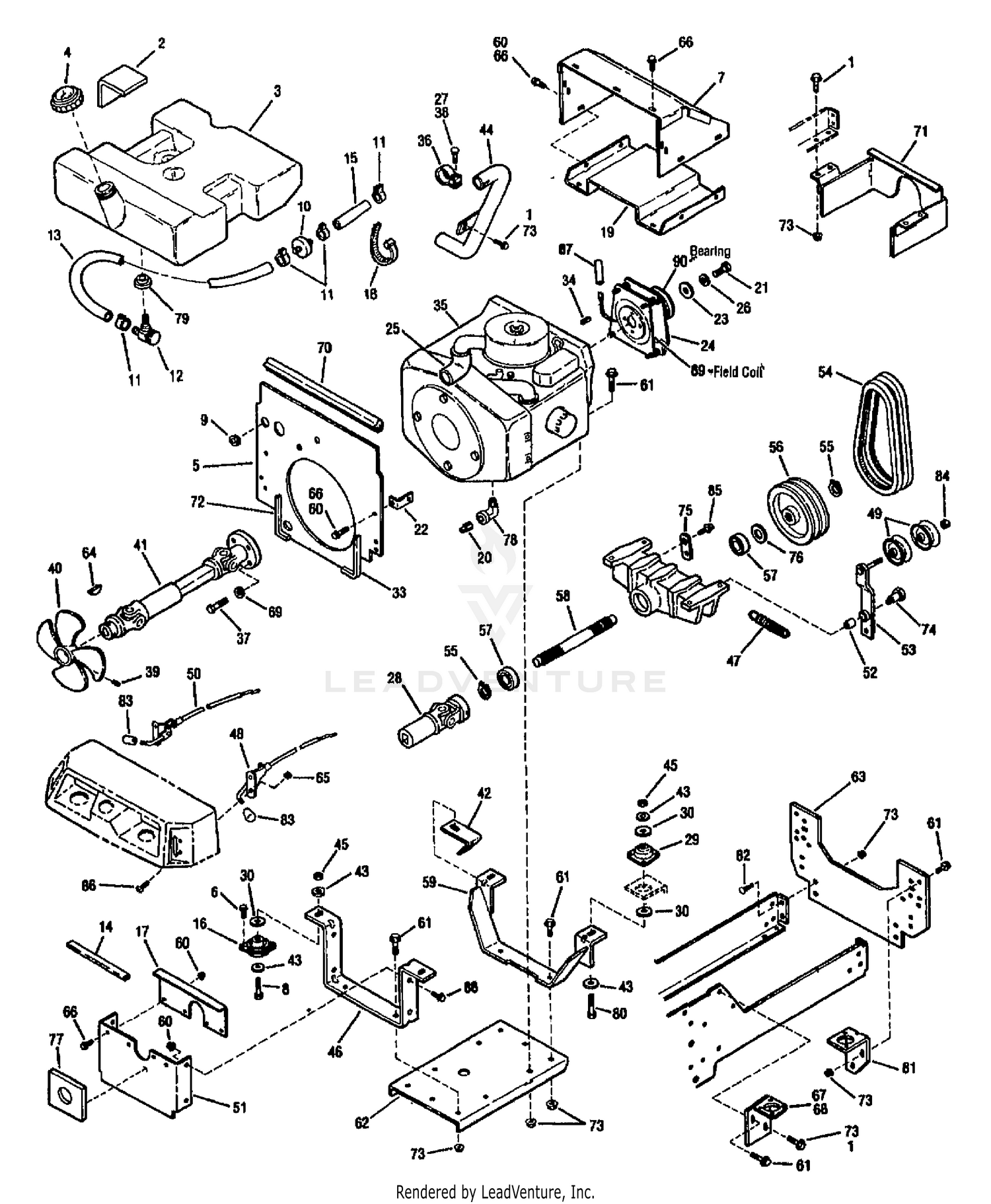

| Ref | Part Number | Description |
|---|
| 1 |
1186345 |
SCREW Not Available Price: |
| 2 |
1749079 |
FUEL TANK Not Available Price: |
| 3 |
1755888 |
ASSM-FUEL Not Available Price: |
| 4 |
1755726 |
FUEL CAP Not Available Price: |
| 5 |
1752713001 |
SHIELD-HEAT Price: Call Us |
| 6 |
1185712 |
SCREW Not Available Price: |
| 7 |
1753985001 |
ASSM-HEAT SHIELD Not Available Price: |
| 8 |
710-3011 |
Screw 3/8-16 X 2.25 Gr5 This part replaces 1100049. Price: $6.49 |
| 9 |
1729587 |
BUSHING Not Available Price: |
| 10 |
BS-298090S |
Fuel Filter This part replaces 1727491. Price: $5.76 |
| 11 |
726-0205 |
Hose Clamp This part replaces 1750687. Price: $3.71 |
| 12 |
951-0171 |
Fuel Shut-Off Valve with Screen This part replaces 1747184. Price: $18.13 |
| 13 |
1735561 |
FUEL LINE Not Available Price: |
| 14 |
1755536 |
GASKET - H Not Available Price: |
| 15 |
1734941 |
LINE-FUEL Price: Call Us |
| 16 |
1725856 |
ENGINE MOUNT Not Available Price: |
| 17 |
1752725001 |
SHIELD-GRA Not Available Price: |
| 19 |
1753913001 |
HEAT SHIELD Not Available Price: |
| 20 |
1105678 |
PIPE PLUG Not Available Price: |
| 21 |
710-3029 |
Hex Cap Screw, 7/16-20 x 1.25 This part replaces 1736485. Price: $3.82 |
| 22 |
1752714001 |
BRACKET-HEAT SHIELD Not Available Price: |
| 23 |
1741801 |
WASHER-1.7X.453X.25 Price: Call Us |
| 24 |
1744401 |
ELEC-CLUTCH/BRAKE Not Available Price: |
| 24 |
1747059 |
CLUTCH Not Available Price: |
| 25 |
1752468 |
AIR CLEANE Not Available Price: |
| 26 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 27 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 1110107. Price: $2.83 |
| 28 |
1714208 |
KIT-CROSS REPAIR Not Available Price: |
| 28 |
1760049001 |
JOINT-UNIVERSAL Not Available Price: |
| 29 |
1738010 |
MOUNT Not Available Price: |
| 30 |
1186047 |
WASHER Not Available Price: |
| 33 |
1755535 |
SEAL (RH) Not Available Price: |
| 34 |
1708034 |
KEY Not Available Price: |
| 36 |
1752790 |
CLAMP Not Available Price: |
| 37 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 38 |
1186102 |
SCR-CARR 5 Not Available Price: |
| 39 |
1737419 |
SCREW SET Not Available Price: |
| 40 |
1770934 |
FAN Not Available This part replaces 1746503. Price: |
| 41 |
1750338 |
DRIVESHAFT Not Available Price: |
| 42 |
1753915001 |
BRACKET-EXHAUST Not Available Price: |
| 43 |
1701055 |
WASHER-FLAT 1.25X.406X.179 Not Available Price: |
| 44 |
1753914001 |
PIPE-EXHAUST Price: Call Us |
| 45 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 46 |
1750828001 |
SUPPORT-REAR MOUNT Price: Call Us |
| 47 |
1746769 |
SPRING EXTENSION This part replaces 1724822. Price: $14.30 |
| 48 |
1755720 |
THROTTLE-CONTROL Price: Call Us |
| 49 |
1756757 |
PULLEY-IDLER Price: $48.05 |
| 50 |
1755721 |
CHOKE CONT Not Available Price: |
| 51 |
1752726001 |
SHIELD-GRA Not Available Price: |
| 52 |
1892945 |
BUSHING Not Available Price: |
| 53 |
1756788001 |
IDLER ARM Not Available Price: |
| 54 |
1742628 |
BELT SET Not Available Price: |
| 55 |
1185689 |
RETAINING RING EXT Not Available Price: |
| 56 |
1744379 |
SHEAVE-PTO Price: Call Us |
| 57 |
1725087 |
BALL BEARING Not Available Price: |
| 58 |
1755219 |
SHAFT PTO Not Available Price: |
| 59 |
1756541001 |
SUPPORT-FRONT MOUN Not Available Price: |
| 60 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 61 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 62 |
1744408001 |
MOUNT-ENGINE Price: Call Us |
| 63 |
1752665001 |
PLATE-FRON Not Available Price: |
| 64 |
1185885 |
WOODRUFF KEY Not Available Price: |
| 65 |
712-0272 |
Hex Sems Nut 010-24 Thd. This part replaces 1185985. Price: $3.58 |
| 66 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 1186308. Price: $3.86 |
| 67 |
1750835001 |
ASSEMBLY HANGER R/H Not Available Price: |
| 68 |
1750834001 |
ASSM-HANGE Not Available Price: |
| 69 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 70 |
1752791 |
GASKET Price: Call Us |
| 71 |
1756157001 |
GUARD PTO Not Available Price: |
| 72 |
1755534 |
SEAL (LH) Not Available Price: |
| 73 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 74 |
1754322 |
SHOULDER SCREW 5/16-18X Not Available Price: |
| 75 |
1744451001 |
ARM-SPRING ANCHOR Not Available Price: |
| 76 |
1915058 |
WASHER-1.0X1.5X.0 Not Available This part replaces 1703073. Price: |
| 77 |
1754644 |
SEAL Not Available Price: |
| 78 |
1743683 |
ELBOW 45 D Not Available Price: |
| 79 |
935-0149 |
BUSHING This part replaces 1738433. Price: $2.43 |
| 80 |
1911403 |
SCREW-HH 3/8-16X3.25 Not Available This part replaces 1110644. Price: |
| 81 |
1752746001 |
SUPPORT-ENGINE Not Available Price: |
| 82 |
1739656 |
SCR-CARR 3 Not Available Price: |
| 83 |
720-04001 |
BRAKE LOCK KNOB Not Available This part replaces 1755412. Price: |
| 84 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1185506. Price: $4.02 |
| 85 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 1753222 |
SUPT-EL |
SWITCH Price: Call Us 1753222 |
