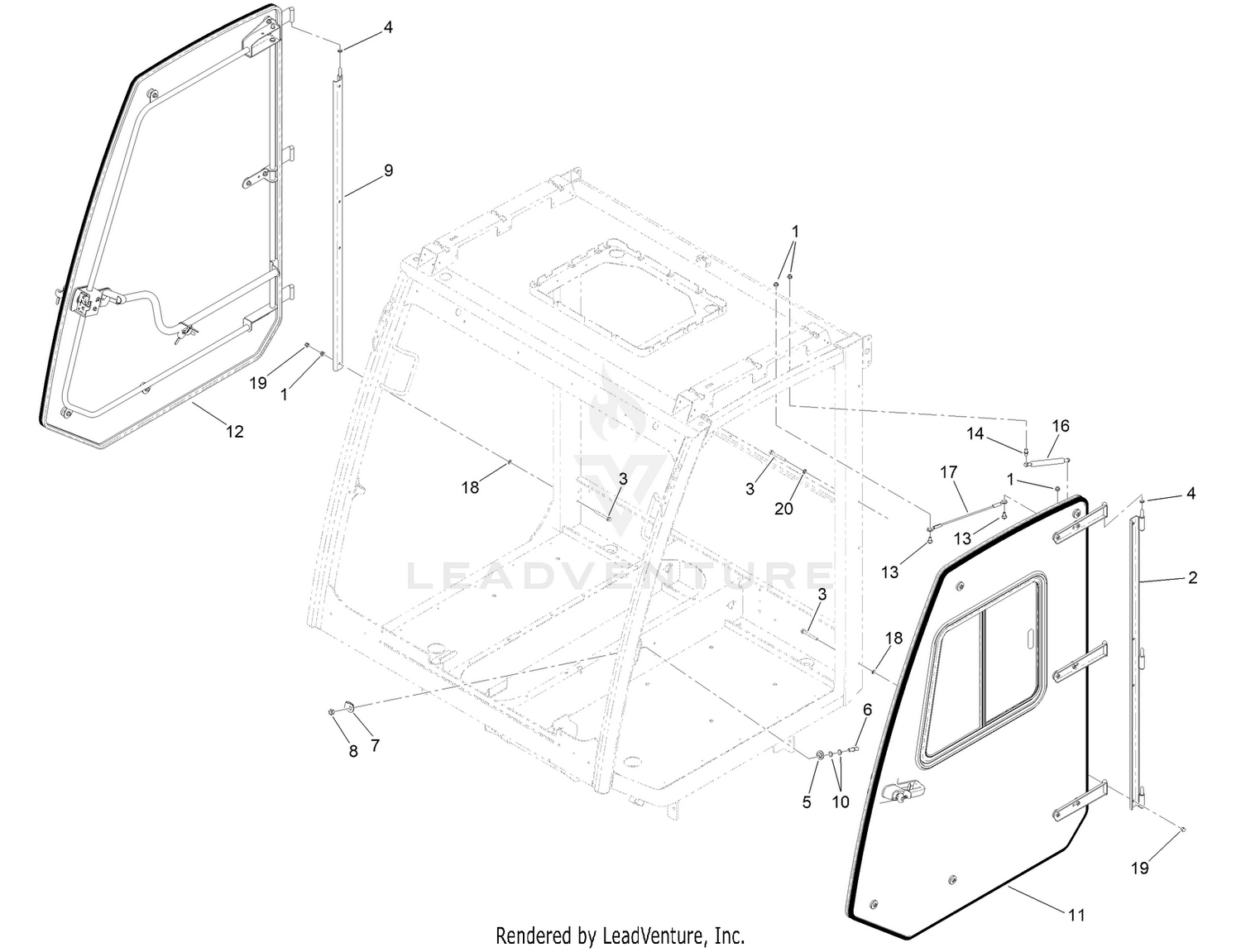

Door Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 2 | 137-1229-03 | LH DOOR MOUNT ASM Price: $117.22 |
| 3 | 139-1891 | SCREW-HHF Price: $3.12 |
| 4 | 121-8441 | WASHER-SPACER Price: $2.17 |
| 5 | 125-9992 | ADJUSTER-STUD Price: $40.51 |
| 6 | 132-3718 | STUD-STRIKER Price: $27.07 |
| 7 | 121-8393 | GUARD-STRIKER Price: $5.13 |
| 8 | 106-0327 | NUT-HEX Price: $0.41 |
| 9 | 137-1230-03 | RH DOOR MOUNT ASM Price: $117.22 |
| 10 | 73-0040 | WASHER-THRUST Price: $1.29 |
| 13 | 120-9471 | BOLT-SHOULDER Price: $2.37 |
| 14 | 98-3104 | STUD-BALL Price: $4.61 |
| 16 | 144-3517 | SPRING-GAS, DOOR Price: $72.38 |
| 17 | 140-1636 | LANYARD-COATED Price: $18.62 |
| 18 | 109-5667 | RING-RETAINING, BOLT Price: $4.07 |
| 19 | 137-4808 | NUT-ACORN Price: $1.13 |
