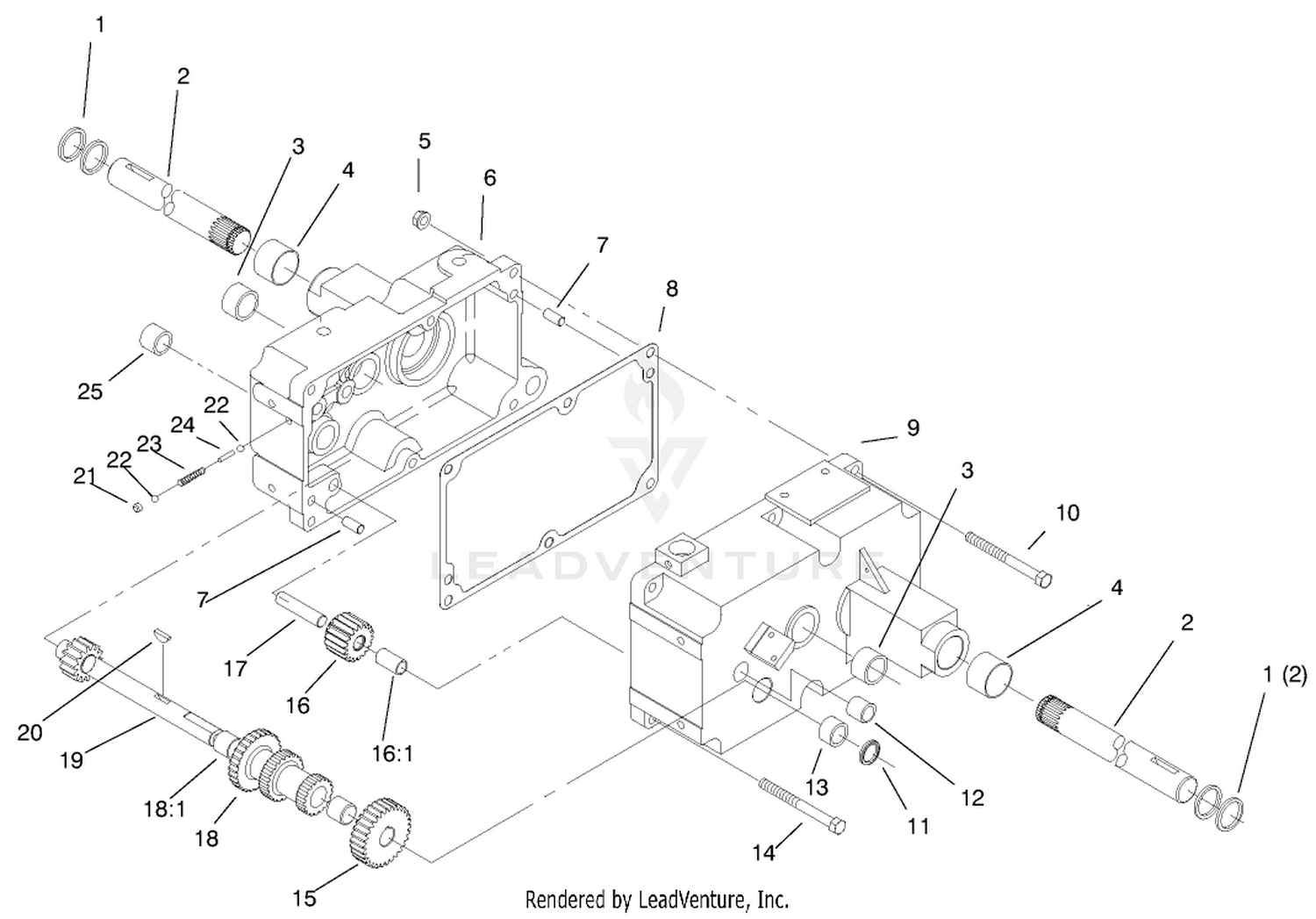

| Ref | Part Number | Description |
|---|
| 1 |
1-800805 |
SCREW-HH This part replaces 911423. Price: $2.42 |
| 1 |
100443 |
SEAL-OIL Price: $7.85 |
| 2 |
105875 |
AXLE-REAR Price: $237.89 |
| 2 |
111199 |
BEARING-BALL Price: $81.47 |
| 3 |
107374 |
WASHER Price: $0.43 |
| 3 |
1532 |
BEARING-NEEDLE Price: $33.82 |
| 4 |
111196 |
END CAP-DIFFERENTIAL Price: $158.76 |
| 4 |
9416 |
BEARING Price: $46.65 |
| 5 |
101889 |
GEAR-AXLE DIFFERENTIAL Price: $50.11 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
105876 |
RING-SNAP Price: $3.31 |
| 6 |
111200-01 |
CASE-RH TRANS Price: $672.74 |
| 7 |
3915 |
PIN-DOWEL Price: $4.41 |
| 7 |
9547 |
WASHER-THRUST Price: $5.69 |
| 8 |
105061 |
GEAR-DIFFERENTIAL RING, 43T Price: $707.09 |
| 8 |
3912 |
GASKET-TRANSMISSION Price: $5.81 |
| 9 |
102974 |
DISCONTINUED Price: Call Us |
| 9 |
95-5143-01 |
CASE-TRANS LH Price: $672.74 |
| 10 |
101623 |
GEAR-PINION, 11T Price: $66.25 |
| 10 |
323-16 |
SCREW-HH Price: $2.89 |
| 11 |
100441 |
SEAL-OIL Price: $5.54 |
| 11 |
108881 |
NUT-HEX Price: $4.99 |
| 12 |
281-2 |
PLUG-PIPE, SQH Price: $2.09 |
| 12 |
83-2890 |
DISCONTINUED Price: Call Us |
| 13 |
1523 |
BEARING-NEEDLE Price: $35.99 |
| 13 |
281-10 |
PLUG Price: $14.99 |
| 14 |
323-11 |
SCREW-HH Price: $1.08 |
| 14 |
5615 |
RAIL-SHIFT Price: $68.13 |
| 15 |
3527 |
DISCONTINUED Price: Call Us |
| 15 |
5616 |
RAIL-REAR SHIFT Price: $52.08 |
| 16 |
4204 |
GEAR/BUSHING ASM-REVERSE IDLER Price: $94.58 |
| 16 |
933156 |
PIN-ROLL Price: $0.45 |
| 17 |
3503 |
FORK-SHIFT Price: $79.84 |
| 17 |
3909 |
PIN-DIFFERENTIAL Price: $7.93 |
| 18 |
7213 |
BOLT-DETENT Price: $31.72 |
| 18 |
7269 |
GEAR-CLUSTER Price: $609.72 |
| 19 |
116636 |
SHIFT FORK ASM Price: Call Us |
| 19 |
83-3530 |
SHAFT-CLUSTER Price: $307.03 |
| 20 |
106030 |
SPRING-SHIFT STOP Price: $1.58 |
| 21 |
1243 |
CUP-PLUG Price: $3.33 |
| 21 |
3517 |
BALL-DETENT Price: $0.34 |
| 22 |
3517 |
BALL-DETENT Price: $0.34 |
| 22 |
7207 |
BEARING-NEEDLE Price: $19.96 |
| 23 |
100-1338 |
ASM-GEAR REDUCTION This part replaces 7206. Price: $181.73 |
| 23 |
106030 |
SPRING-SHIFT STOP Price: $1.58 |
| 24 |
5614 |
PIN-SHIFT Price: $5.69 |
| 24 |
7208 |
GEAR-SHAFT REDUCTION Price: $7.52 |
| 25 |
1529 |
BEARING-NEEDLE Price: $28.65 |
| 25 |
7214 |
SHIFT ASM Price: $26.66 |
| 26 |
111099 |
Gear Price: Call Us |
| 26 |
5175 |
GEAR Price: $180.97 |
| 27 |
5174 |
GEAR-LOW AND REVERSE Price: $112.82 |
| 28 |
5173 |
GEAR-HI AND 2ND Price: $85.78 |
| 29 |
7204 |
DISCONTINUED This part replaces 111096. Price: Call Us |
| 30 |
7205 |
GEAR-SLIDING Price: $96.56 |
| 31 |
7201 |
SHAFT-INPUT Price: $318.19 |
| 32 |
7418 |
WASHER-THRUST Price: $4.30 |
| 33 |
1542 |
BEARING-NEEDLE Price: $24.76 |
