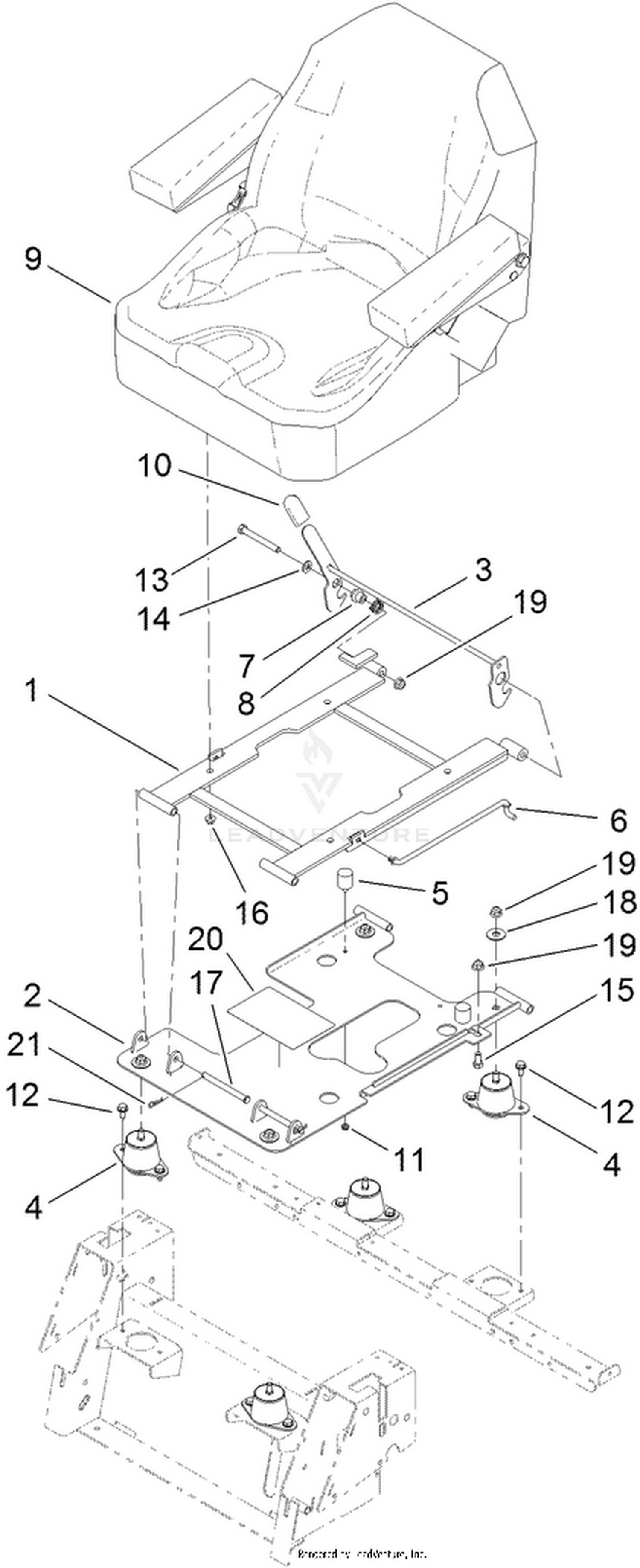

Seat Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-7441-03 | SEAT PAN ASM Price: $168.87 |
| 2 | 117-7449-03 | SEAT BASE ASM Price: $176.90 |
| 3 | 119-8918 | LATCH ASM Price: $48.21 |
| 4 | 109-9034 | ISOLATOR-SEAT Price: $65.99 |
| 5 | 106-5891 | BUMPER Price: $37.33 |
| 6 | 116-0070 | ROD-PROP Price: $20.99 |
| 7 | 107-0075 | BUSHING-LATCH, SEAT Price: $2.96 |
| 8 | 110-5831 | SPRING-TORSION Price: $6.72 |
| 9 | 116-0038 | SEAT ASM Price: $531.89 |
| 10 | 103-4434 | GRIP-LEVER Price: $1.23 |
| 11 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 12 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 13 | 323-20 | SCREW-HH Price: $1.28 |
| 14 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 15 | 323-4 | SCREW-HH Price: $1.02 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 100-1413 | PIN-CLEVIS Price: $7.06 |
| 18 | 3256-5 | WASHER-FLAT Price: $0.27 |
| 19 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 20 | 115-9630 | DECAL-MAINTENANCE Price: $5.36 |
