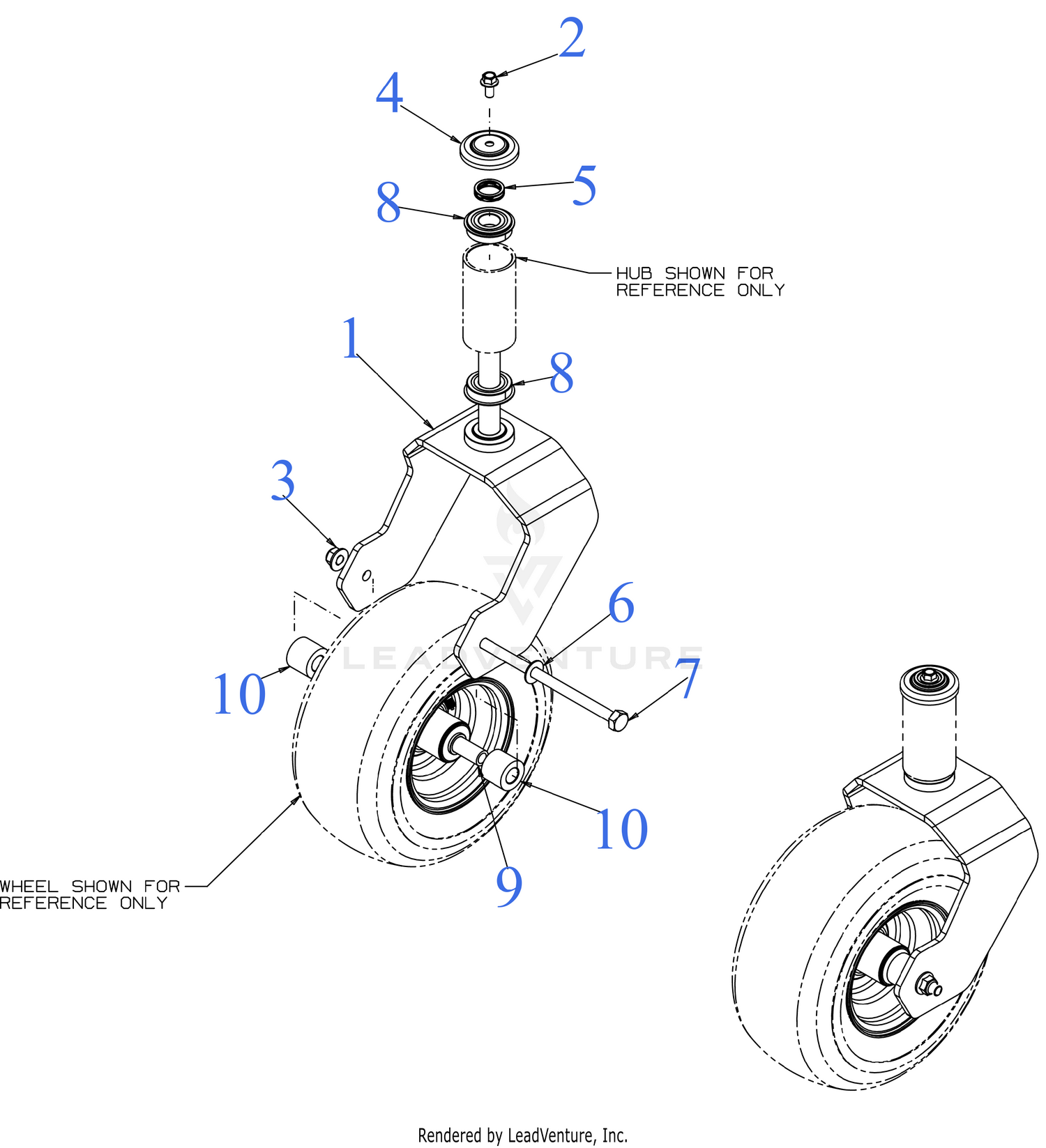

Front Caster
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 710-06551 | BOLT - 3/8-16:.75:GR5:PATCH LOCK Price: $4.55 |
| 3 | 712-04150 | NUT Price: $3.74 |
| 4 | 721-04961A | AXLE CAP Price: $19.31 |
| 5 | 736-05033A | WAVE WASHER Price: $4.19 |
| 6 | 736-3084 | FLAT WASHER Price: $4.39 |
| 7 | 738-05192B | SCREW-1/2-13X8.5 GR5 FLG RZF-SX Price: $27.37 |
| 8 | 941-05022A | BALL BEARING 25X52X15 Price: $17.83 |
| 9 | 750-05351A | CASTER AXLE SPACER This part replaces 750-05351. Price: $18.26 |
