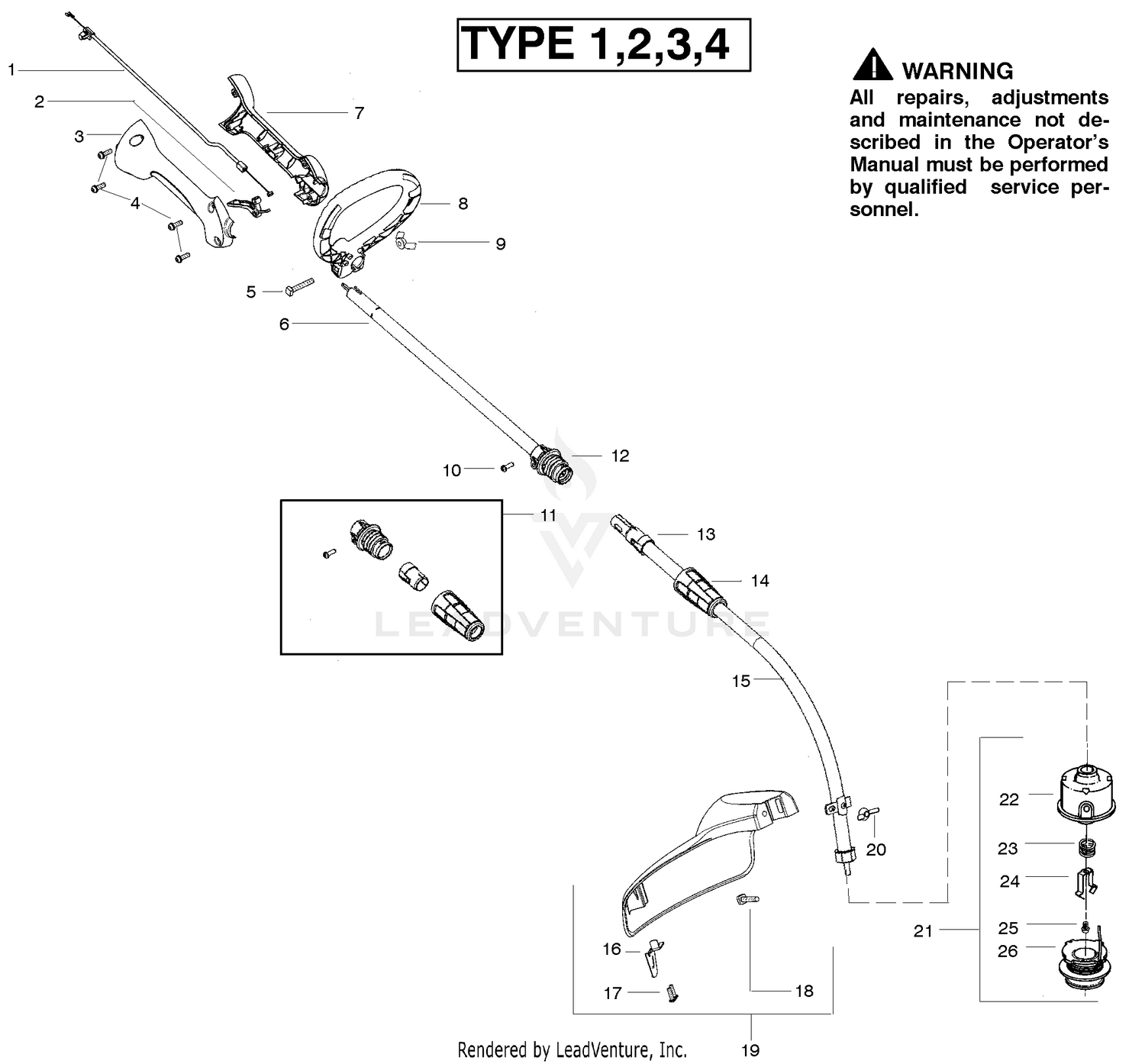

| Ref | Part Number | Description |
|---|
| 1 |
530057991 |
Assy-Throttle Cable Price: $8.99 |
| 1 |
SGH08702-03 |
HEAD-TINE, ADAPTER Price: $296.40 |
| 2 |
530058000 |
Trigger Price: $2.99 |
| 3 |
530057582 |
Throttle Hsg. (Right) Price: $7.99 |
| 4 |
530015880 |
Screw-Throttle Hsg. Price: $1.99 |
| 5 |
530015821 |
Bolt Price: $1.99 |
| 7 |
530057581 |
Throttle Hsg. (Left) Price: $7.99 |
| 9 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 10 |
530015886 |
Screw (10-14 x 5/8) Price: $1.99 |
| 17 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 18 |
530015820 |
Bolt Price: $1.99 |
| 20 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 22 |
530095769 |
Assy-Hub Price: $8.99 |
| 23 |
530401464 |
Spring-Compression Price: $0.99 |
| 24 |
530401466 |
Clip-Retainer-Head Price: $1.99 |
| 25 |
530401467 |
Screw Price: Call Us |
| 26 |
952711527 |
Accy- Spool w/Line Price: $7.95 |
