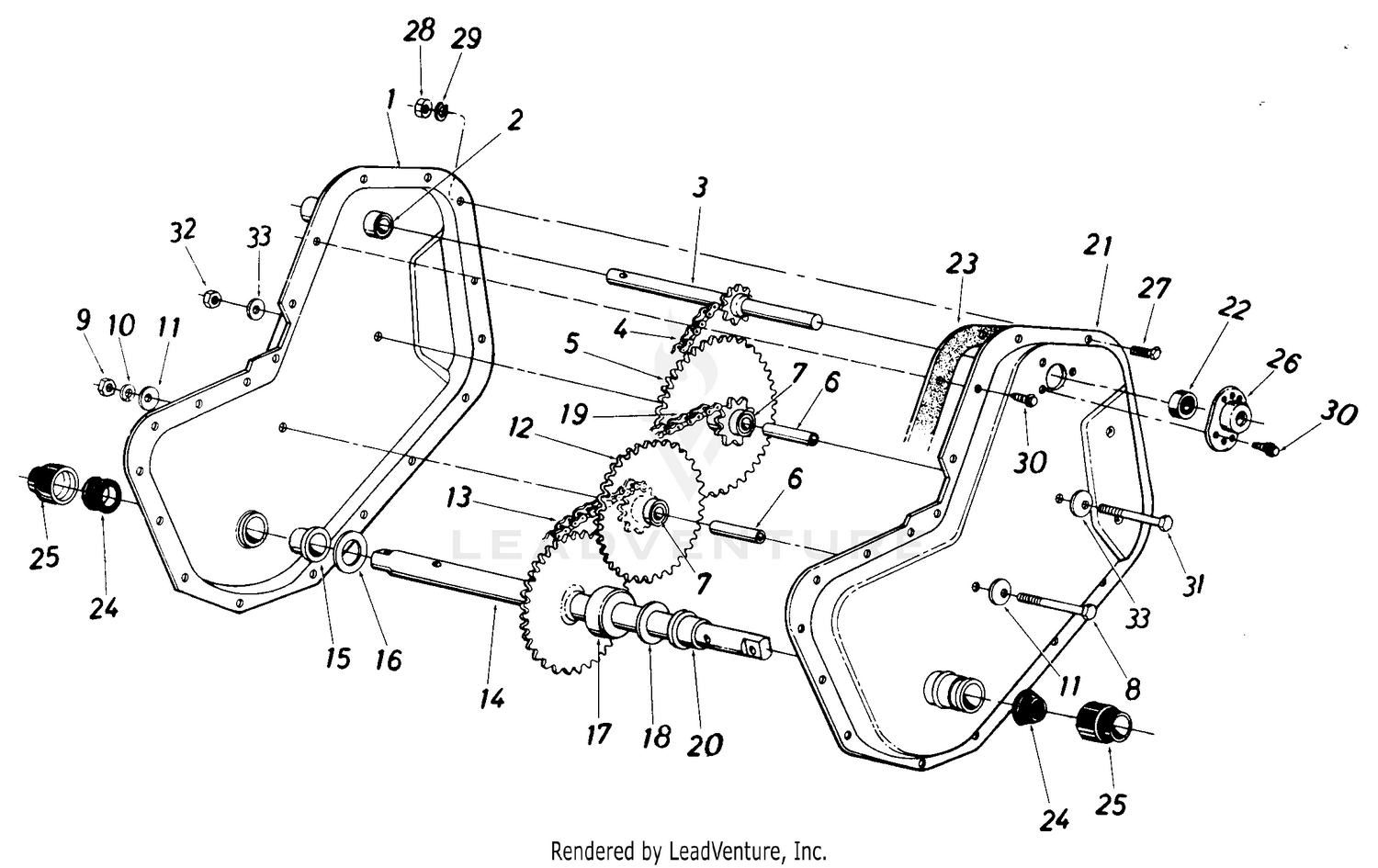

| Ref | Part Number | Description |
|---|
| 1 |
14962 |
HOUSING-CH Not Available Price: |
| 2 |
748-0154 |
BEARING Not Available Price: |
| 3 |
34960 |
Input Shaft Ass'y. Price: Call Us |
| 4 |
713-0325 |
CHAIN 3/8 Not Available Price: |
| 5 |
713-0316 |
Sprocket and Hub Ass'y. Price: Call Us |
| 6 |
750-0351 |
SLEEVE .623 OD x .380 ID x 1.5 LG Not Available Price: |
| 7 |
741-0228 |
BEARING Not Available Price: |
| 8 |
710-0369 |
Hex Bolt 3/8-24 x 2.50" Lg. Price: $5.59 |
| 9 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 10 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 11 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 12 |
713-0330 |
SPROCKET & HUB ASSEMBLY (9T & 22T) Not Available Price: |
| 15 |
741-0227 |
Flange Bearing Price: $10.23 |
| 16 |
736-0265 |
FLAT WASHER .88 x 1.50 x .030 Not Available Price: |
| 17 |
750-0354A |
SPACER Not Available This part replaces 750-0354. Price: |
| 18 |
736-0265 |
FLAT WASHER .88 x 1.50 x .030 Not Available Price: |
| 20 |
741-0227 |
Flange Bearing Price: $10.23 |
| 21 |
15797 |
WHEEL CHAIN CASE ASSY - LH Not Available Price: |
| 22 |
941-0155 |
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. This part replaces 741-0155. Price: $22.09 |
| 23 |
921-0156A |
GASKET Not Available This part replaces 721-0156. Price: |
| 24 |
721-0157 |
SEAL Not Available Price: |
| 25 |
731-0486 |
DUST CAP Not Available Price: |
| 26 |
05034A |
BEARING HOUSING Not Available This part replaces 05034. Price: |
| 27 |
910-0195 |
HEX SCREW 1/4-28 x .62 Not Available This part replaces 710-0195. Price: |
| 28 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 29 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 30 |
710-0599 |
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 31 |
710-0378 |
Hex Bolt 5/16-18 x 2.5" Lg. Price: $4.09 |
| 32 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 33 |
736-0159 |
Fl-Wash. 5/16" I.D. Price: $3.71 |
