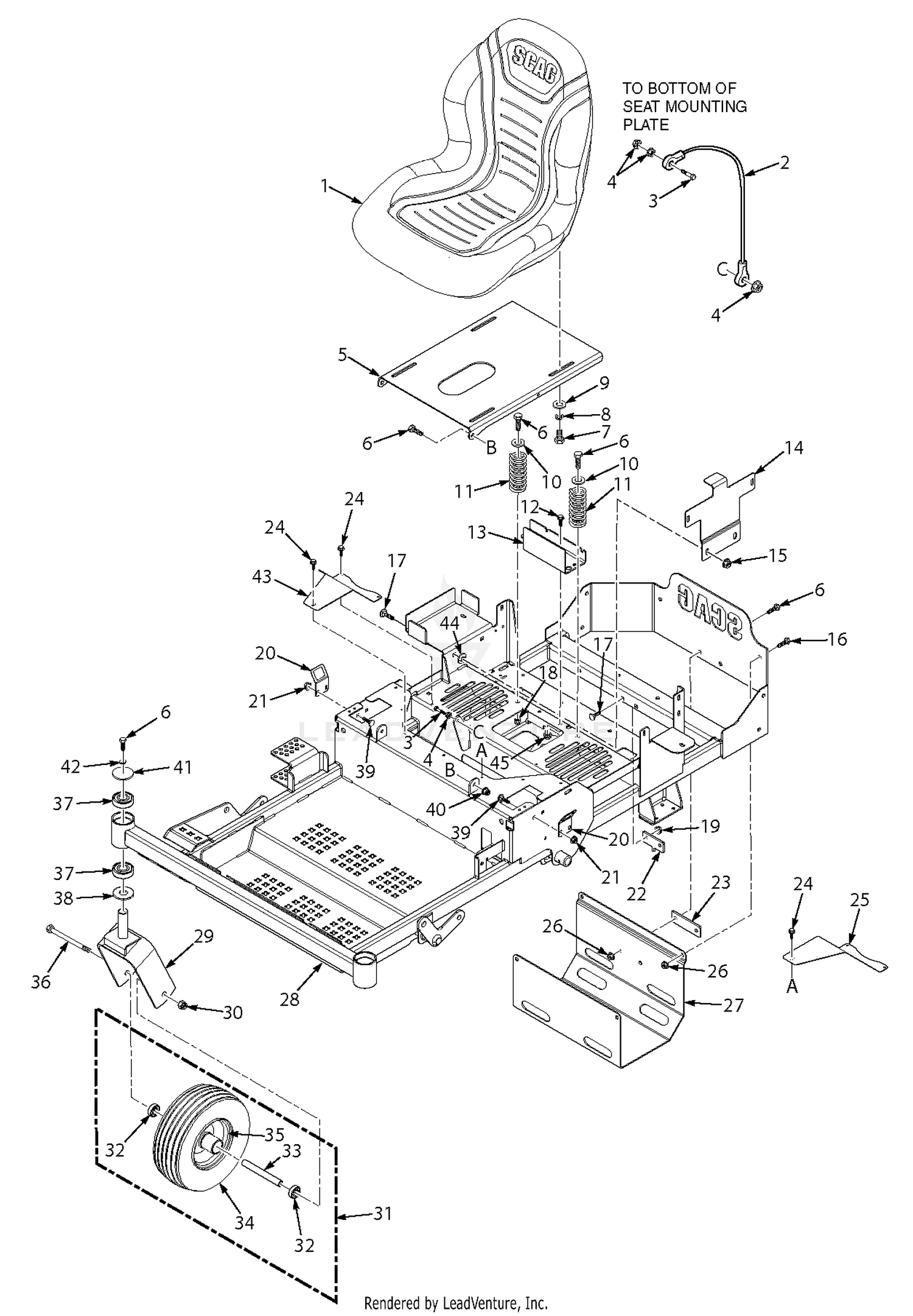

| Ref | Part Number | Description |
|---|
| 1 |
485361 |
Seat, SZL Price: Call Us |
| 2 |
483559 |
Cable, Seat Stop Price: Call Us |
| 3 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 4 |
04019-02 |
Nut, 1/4-20 Serrated Flange Price: Call Us |
| 5 |
462791 |
Seat Plate w/Decal Price: Call Us |
| 6 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 7 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 8 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 9 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 10 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 11 |
483372 |
Spring, Seat Price: Call Us |
| 12 |
04017-16 |
Bolt, Hex Head 5/16-18 x 3/4" Serrated Flange Price: Call Us |
| 13 |
426768 |
Channel, Hose Price: Call Us |
| 14 |
426766 |
Battery Hold Down Price: Call Us |
| 15 |
04117-01 |
Nut, 5/16-18 Flange Elastic Stop Price: Call Us |
| 16 |
04001-18 |
Bolt, Hex Head 3/8-16 x 3/4" Price: Call Us |
| 17 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 18 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 19 |
04117-01 |
Nut, 5/16-18 Flange Elastic Stop Price: Call Us |
| 20 |
426727 |
Bracket, Switch Price: Call Us |
| 21 |
04117-03 |
Nut, 1/4-20 Flange Elastic Stop Price: Call Us |
| 22 |
426726 |
Plate, Anti-Rotation Price: Call Us |
| 23 |
426843 |
Plate, Spacer Price: Call Us |
| 24 |
04011-11 |
Screw, #10-32 x .56 Price: Call Us |
| 25 |
426767 |
Guard, Belt - LH Price: Call Us |
| 26 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 27 |
426828 |
Skid Plate, SZL Price: Call Us |
| 28 |
463035 |
Frame Assembly, SZL-36 This part replaces 462927. Price: Call Us |
| 29 |
451845 |
Yoke Weldment, Caster Price: Call Us |
| 30 |
04021-07 |
Nut, 1/2-13 Elastic Stop Price: Call Us |
| 32 |
485243 |
Bearing Price: Call Us |
| 33 |
43974 |
Spacer, Wheel Bearing Price: Call Us |
| 34 |
483417 |
Tire, 11 x 4 Price: Call Us |
| 36 |
04001-80 |
Bolt, Hex Head 1/2-13 x 6-1/2" Price: Call Us |
| 37 |
483466 |
Bearing Price: Call Us |
| 38 |
424636 |
Spacer, Yoke Price: Call Us |
| 39 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 40 |
04117-02 |
Nut, 3/8-16 Flange Elastic Stop Price: Call Us |
| 41 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25 x .188 Price: Call Us |
| 42 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 43 |
424785 |
Guard, Belt - RH Price: Call Us |
| 44 |
04024-03 |
U-Nut, 5/16 Push-On Price: Call Us |
