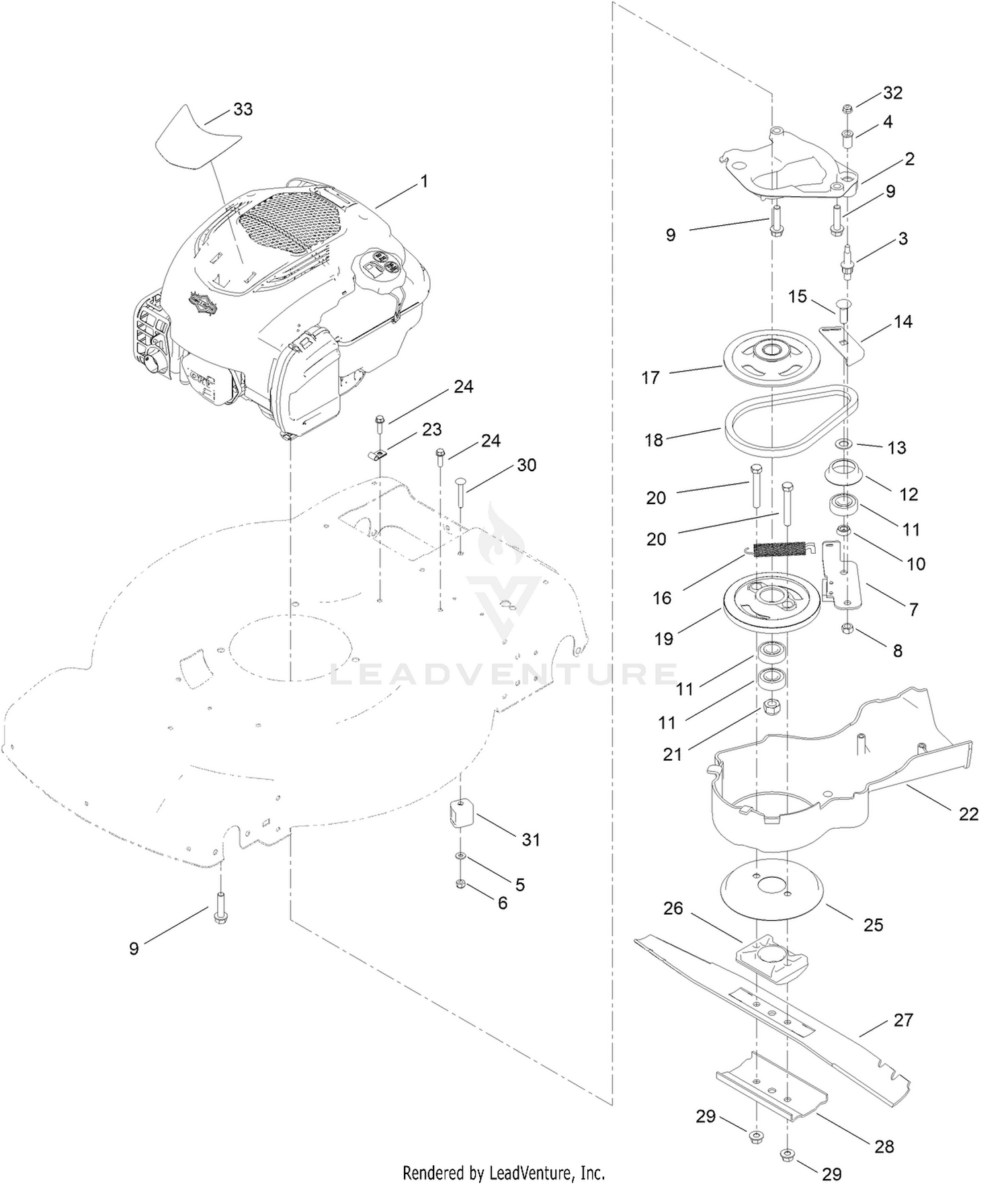

Engine and Blade Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 132-4469 | PLATE-ANCHOR Price: $19.96 |
| 3 | 107-0759 | BOLT-SHOULDER Price: $6.54 |
| 4 | 107-0797 | BUSHING Price: $3.48 |
| 5 | 139-1722 | WASHER-FLAT Price: $1.11 |
| 6 | 137-3094 | NUT-HEX Price: $0.34 |
| 7 | 125-1063 | PLATE-BRAKE Price: $15.98 |
| 8 | 603773 | LOCKNUT Price: $2.09 |
| 9 | 32144-102 | SCREW-HWH Price: $3.19 |
| 10 | 107-0758 | SPACER-BEARING Price: $2.09 |
| 11 | 38-7820 | BEARING-BALL Price: $13.99 |
| 12 | 138-3217 | RETAINER-BELT Price: $2.04 |
| 13 | 605256 | SPACER Price: $1.31 |
| 14 | 138-3222 | PLATE-GUIDE Price: $2.28 |
| 15 | 119-4162 | SCREW-CARR Price: $1.73 |
| 16 | 108-3792 | SPRING-TENSION, BRAKE Price: $7.49 |
| 17 | 117-5970 | PULLEY Price: $21.57 |
| 18 | 110-1790 | BELT Price: $26.26 |
| 19 | 126-8108 | DRUM Price: $36.33 |
| 20 | 139-1711 | SCREW-HH Price: $2.29 |
| 21 | 139-1705 | NUT-HEX Price: $0.90 |
| 22 | 115-2892 | COVER Price: $16.85 |
| 23 | 2412-72 | CLIP-CLOSED, INSULATED Price: $1.90 |
| 24 | 137-3099 | SCREW-PLASTITE, HWH Price: $0.61 |
| 25 | 138-3225 | DISK Price: $7.95 |
| 26 | 107-7487 | SUPPORT-BLADE Price: $14.79 |
| 27 | 131-9683-03 | BLADE Price: $20.79 |
| 28 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 29 | 139-1706 | NUT-FLANGE, LOCK Price: $2.55 |
| 30 | 120-9698 | BOLT-CARR Price: $0.41 |
| 31 | 106-6801 | ANCHOR-CABLE Price: $4.49 |
| 32 | 119-4040 | NUT-FLANGE, NI Price: $0.52 |
