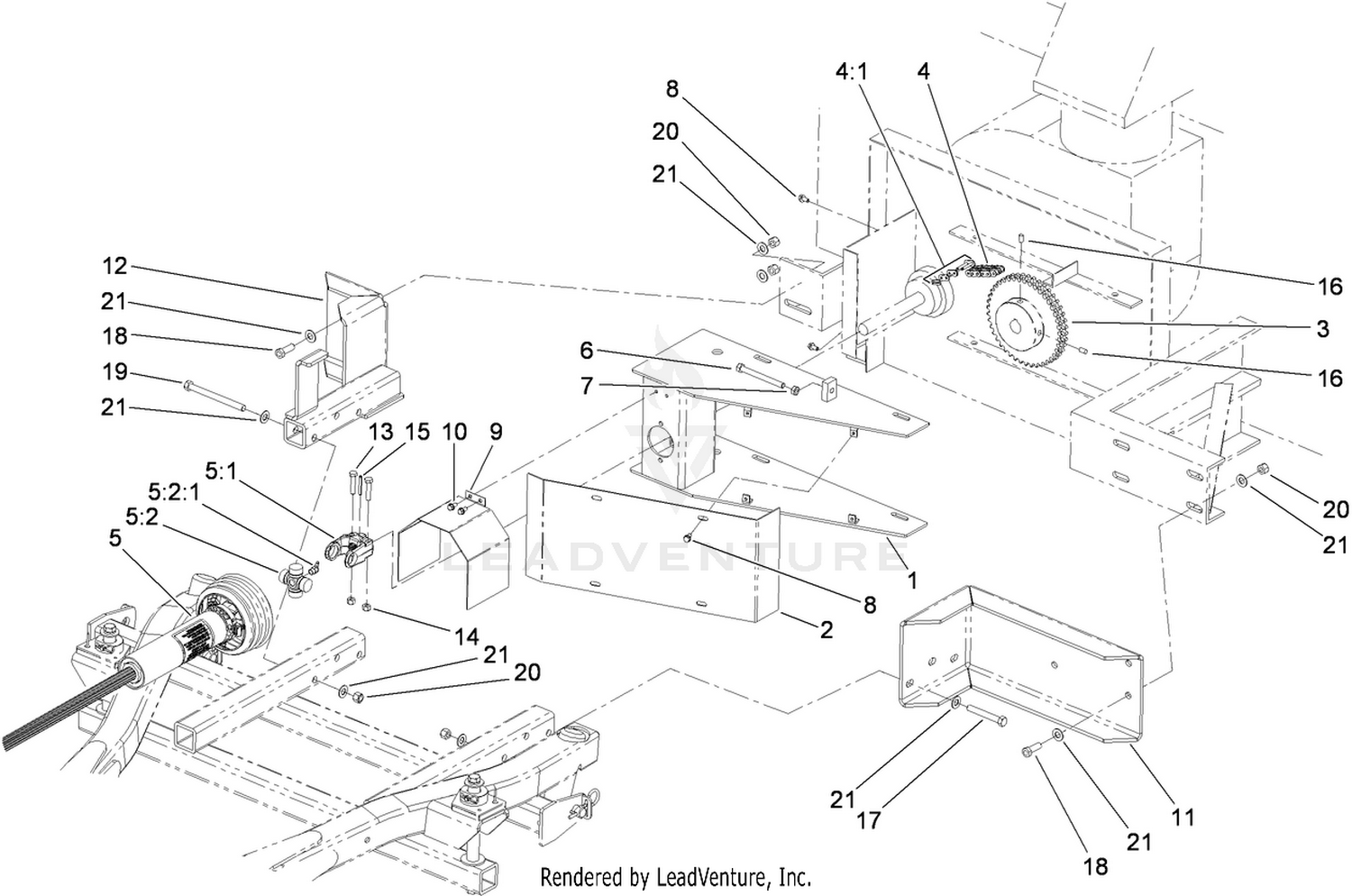

Snowthrower Drive and Mounting Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-4115-01 | MOUNT-CHAIN DRIVE Price: $392.72 |
| 2 | 114-4139-01 | COVER Price: $92.71 |
| 3 | 115-4922 | SPROCKET-DOUBLE, 42T Price: $551.60 |
| 4 | 115-4923 | CHAIN-ROLLER Price: $155.50 |
| 5 | 110-8525 | SHAFT HALF ASM Price: $985.30 |
| 6 | 107-4026 | SCREW-HH Price: $5.28 |
| 7 | 3217-7 | NUT-HEX Price: $0.28 |
| 8 | 3234-13 | SCREW-HHF Price: $0.77 |
| 9 | 114-4145-01 | GUARD Price: $72.63 |
| 10 | 32144-4 | SCREW-HWH Price: $1.29 |
| 11 | 114-4144-01 | BRACKET Price: $189.49 |
| 12 | 114-4146-01 | MOUNTING-BRACKET Price: $306.77 |
| 13 | 322-7 | SCREW-HH Price: $0.89 |
| 14 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 15 | 32121-34 | PIN-ROLL Price: $1.31 |
| 16 | 3246-4 | SCREW-SET Price: $0.75 |
| 17 | 3212-12 | SCREW-HH Price: $2.12 |
| 18 | 3212-5 | SCREW-HH Price: $2.46 |
| 19 | 3212-19 | SCREW-HH Price: $5.37 |
| 20 | 3296-7 | NUT-LOCK Price: $0.34 |
