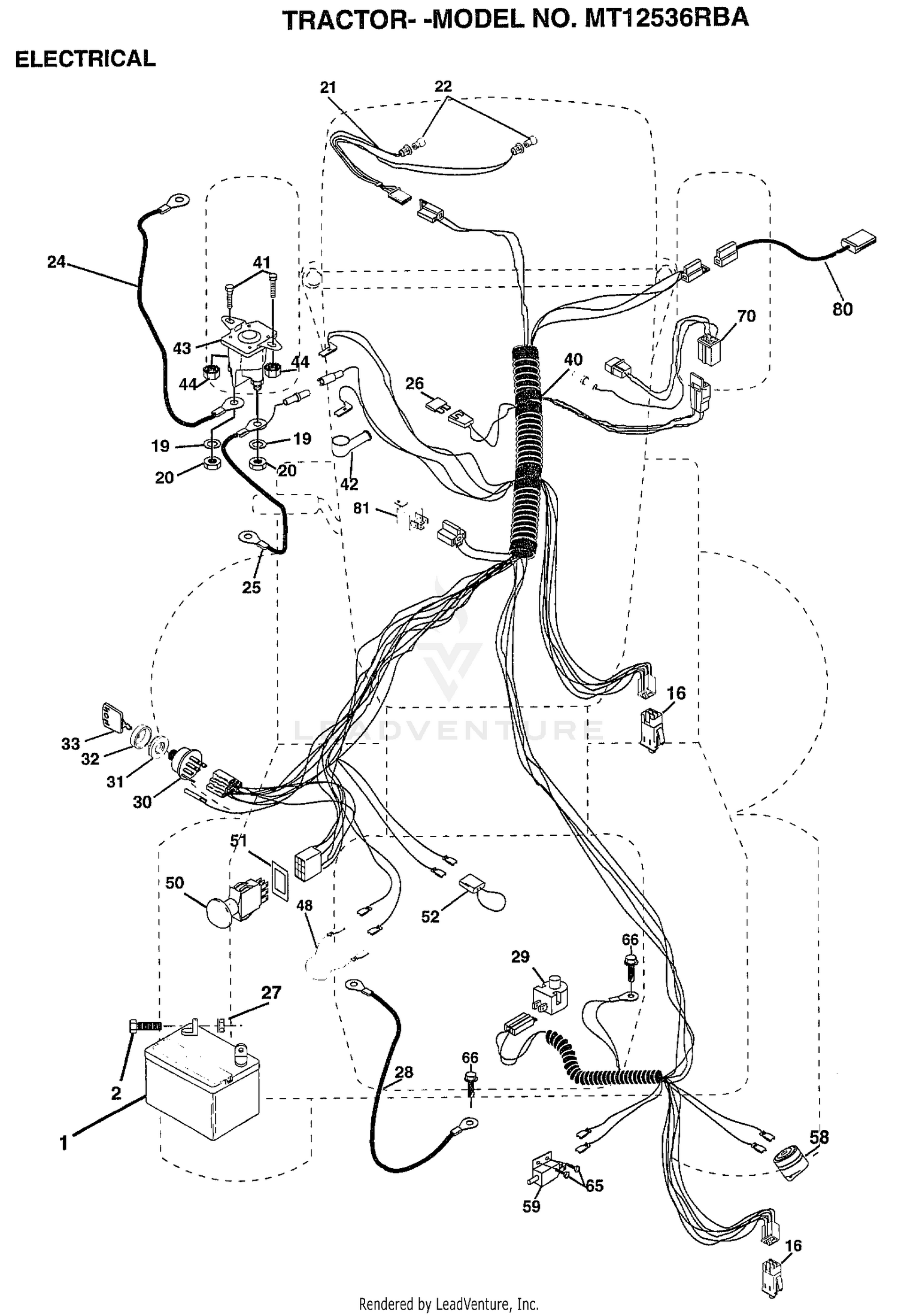

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 2 |
2412-110 |
CLAMP-BAND/SCREW Price: $3.60 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
95-6459 |
HOSE-INLET, AIR Price: $98.91 |
| 4 |
99-2277 |
GASKET Price: $55.02 |
| 5 |
105-0560 |
EXHAUST TUBE ASM Price: $322.41 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
69-9710 |
NUT-HEX Price: $3.58 |
| 9 |
105-0578 |
MUFFLER Price: $1,110.76 |
| 10 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 11 |
105-0579-03 |
MOUNT-FRAME Price: $92.20 |
| 12 |
323-4 |
SCREW-HH Price: $1.02 |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
107-1143 |
BAND-CLEANER, AIR Price: $104.51 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 17 |
32128-25 |
NUT-HF Price: $3.19 |
| 18 |
33114-020 |
SCREW-HH Price: $0.28 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
166181 |
HARNESS.ASM.LIGHT W/4152J Price: Call Us |
| 21 |
95-6462-03 |
BRACKET-CLEANER, AIR Price: $93.29 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
69-1940 |
INDICATOR-ELECTRICAL Price: $80.62 |
| 23 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 24 |
98-0800 |
AIR CLEANER ASM Price: $531.86 |
| 25 |
165987 |
CABLE.BATTERY.CRD Price: Call Us |
| 25 |
95-6457 |
HOSE-OUTLET, AIR Price: $66.10 |
| 26 |
166180 |
FUSE.15 AMP Price: Call Us |
| 26 |
98-7347 |
CLAMP-HOSE Price: $8.40 |
| 27 |
73510400 |
NUT Price: Call Us |
| 27 |
95-6461 |
TUBE-INTAKE Price: $131.60 |
| 28 |
95-6458 |
HOSE-OUTLET, AIR Price: $66.00 |
| 29 |
160784 |
SWITCH.PLUNGER Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
166158 |
HARNESS.IGN.CRD.ELECT Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 50 |
154963 |
PTO SWITCH.RED Price: Call Us |
| 51 |
140405 |
RING RETAIN PTO Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 58 |
165943 |
BUZZER CRD Price: Call Us |
| 59 |
166299 |
SWITCH.FBI.CRD Price: Call Us |
| 65 |
17211008 |
SCREW Price: Call Us |
| 66 |
17490608 |
SCREW LT Price: Call Us |
| 70 |
166668 |
HARNESS.ENGINE Price: Call Us |
| 80 |
146685 |
HARNESS.CLUT.EVX. Price: Call Us |
