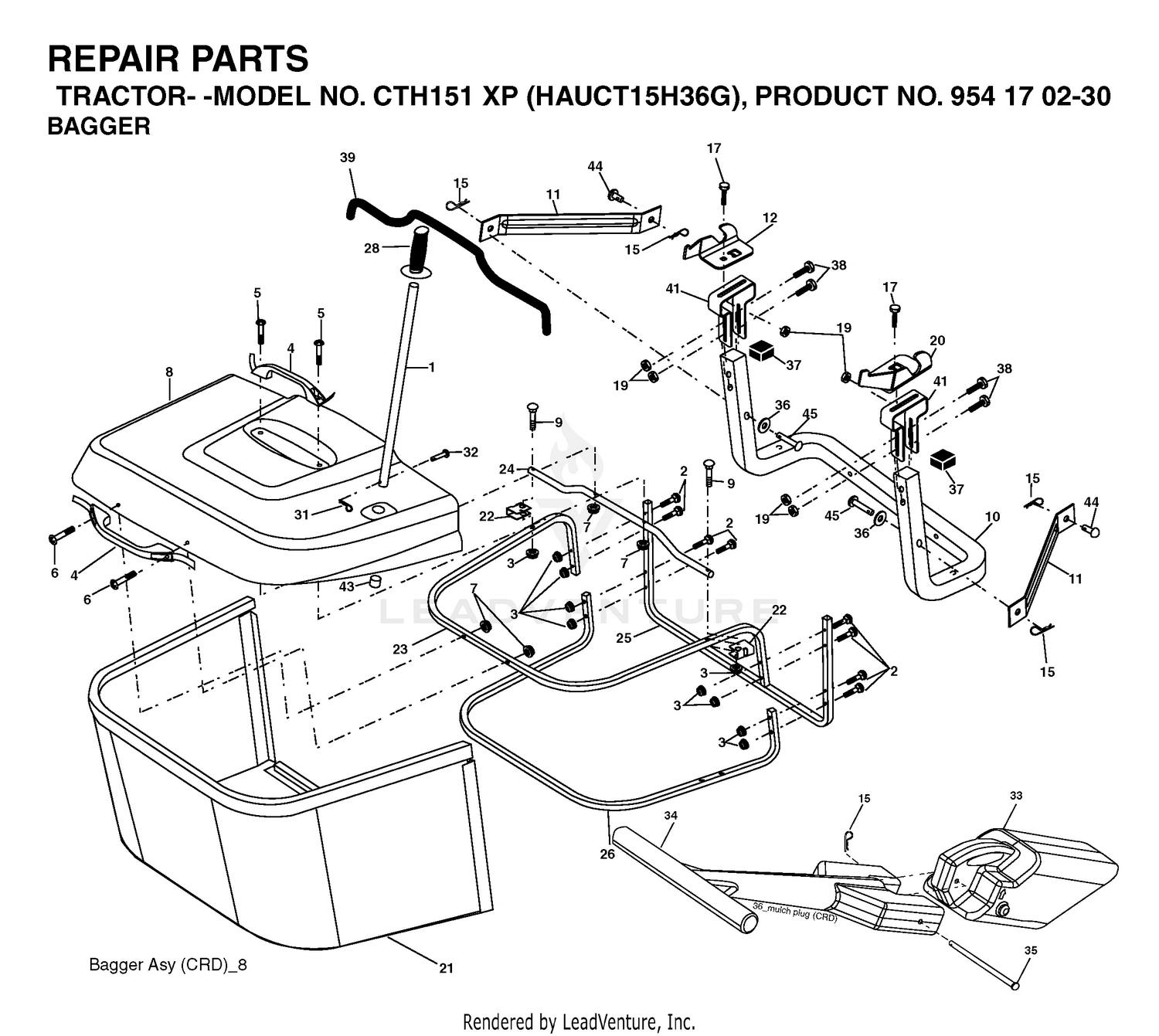

| Ref | Part Number | Description |
|---|
| 1 |
253-144 |
SEAL-GREASE Price: $20.77 |
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
254-103 |
CONE-BEARING, INNER Price: $38.71 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
115-4944 |
WHEEL HUB ASM Price: $281.80 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
254-104 |
CUP-BEARING, INNER Price: $17.18 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 6 |
56-7960 |
TIRE (11-15) 8-PLY Price: $201.63 |
| 7 |
217-109 |
WHEEL Price: $694.71 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
3272-19 |
PIN-COTTER Price: $0.31 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
217-111 |
CAP-HUB Price: $22.31 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 12 |
47-2540 |
WASHER-FLAT Price: $4.14 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 14 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 44 |
532193312 |
NEEDS DESCRIPTION Price: Call Us |
| 45 |
532193313 |
NEEDS DESCRIPTION Price: Call Us |
