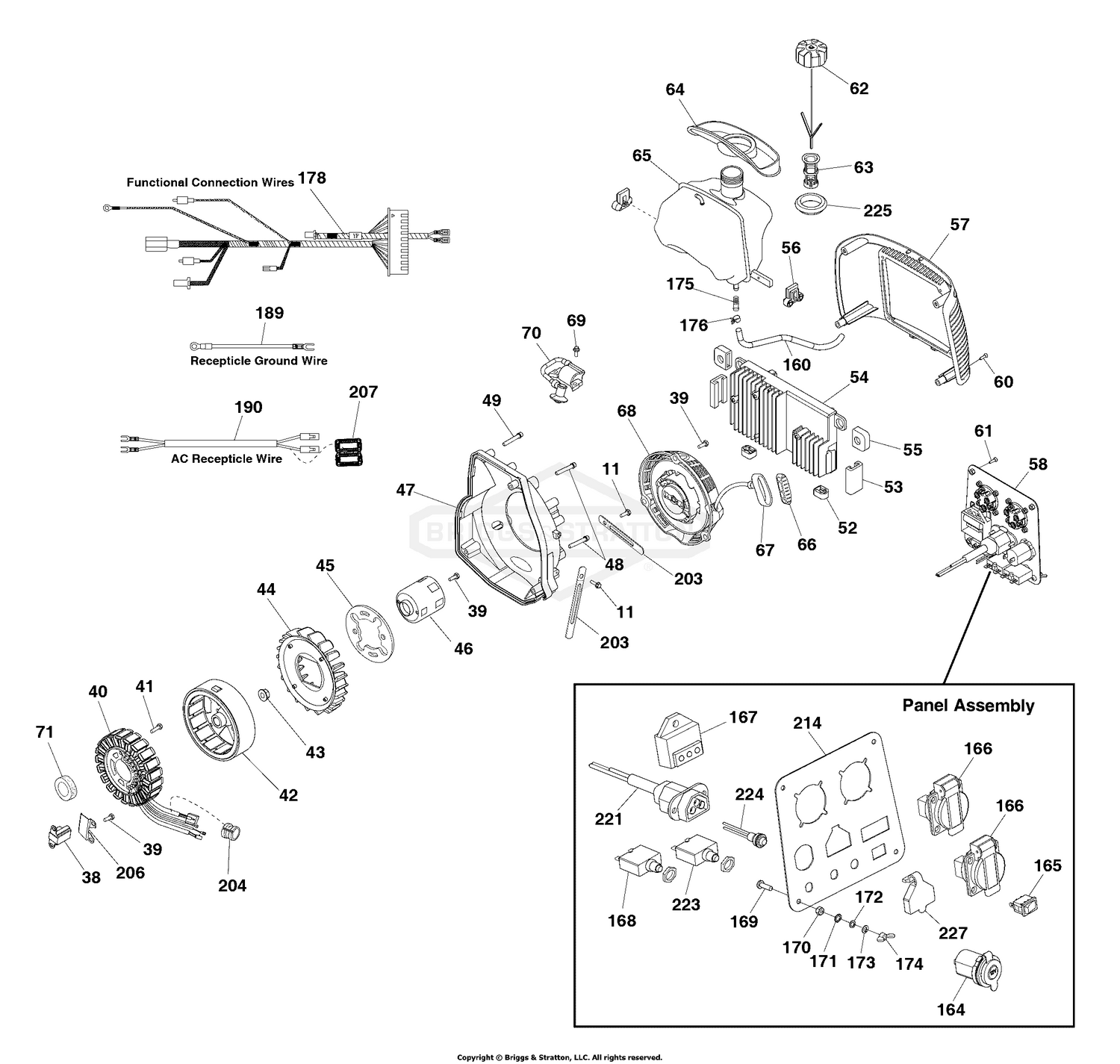

| Ref | Part Number | Description |
|---|
| 38 |
311399GS |
TRIGGER, Ingition Price: $15.19 |
| 39 |
311400GS |
SCREW Price: $2.48 |
| 40 |
707590 |
STATOR Price: $269.36 |
| 41 |
311402GS |
SCREW Price: $2.75 |
| 42 |
707951 |
FRAME, Grass Bag Price: $161.64 |
| 43 |
311404GS |
NUT Price: $6.57 |
| 44 |
314701GS |
FAN Price: $34.97 |
| 46 |
311406GS |
CUP, Flywheel Price: $12.35 |
| 54 |
704129 |
INVERTER Price: $768.49 |
| 57 |
311409GS |
COVER, Panel Price: $27.77 |
| 58 |
700102 |
PANEL-CONTROL Price: $259.69 |
| 62 |
317134GS |
CAP-FUEL Price: $26.08 |
| 63 |
317441GS |
FILTER, Filler Neck Price: $6.57 |
| 64 |
707595 |
PAD-FUEL TANK Price: $15.47 |
| 65 |
707596 |
TANK-FUEL Price: $238.17 |
| 66 |
311414GS |
INSERT, Grip Price: $4.55 |
| 68 |
706058 |
ASSEMBLY, Starter Recoil, 2 KW Inverter Price: $98.66 |
| 70 |
317436GS |
COIL, Ignition Price: $34.02 |
| 160 |
704623 |
HOSE-FUEL Price: $32.32 |
| 164 |
314531GS |
OUTLET, 12VDC Price: $17.06 |
| 165 |
311442GS |
SWITCH Price: $22.56 |
| 166 |
316585GS |
OUTLET Price: $11.84 |
| 167 |
311443GS |
LIGHT, Indicator Price: $269.36 |
| 168 |
311444GS |
BREAKER, Circuit Price: $75.25 |
| 169 |
76040GS |
SCREW Price: $2.64 |
| 170 |
207743GS |
NUT Price: $3.06 |
| 171 |
91719GS |
WASHER Price: $2.04 |
| 172 |
207806GS |
WASHER Price: $2.75 |
| 173 |
207805GS |
WASHER Price: $3.06 |
| 174 |
187424GS |
NUT, WING, M5 X 0.8 Price: $2.30 |
| 175 |
707168 |
FILTER-FUEL TANK Price: $3.85 |
| 178 |
314533GS |
HARNESS, Wiring Price: $32.32 |
| 189 |
315824GS |
WIRE Price: $5.71 |
| 190 |
315829GS |
HARNESS, Wiring Price: $15.36 |
| 207 |
317445GS |
BEAD, Ferrite Price: $16.32 |
| 214 |
704126 |
PANEL-CONTROL Price: $37.62 |
| 221 |
705488 |
PORT-PARALLEL Price: $43.65 |
| 223 |
707170 |
CIRCUIT BREAKER, 15A Price: $29.67 |
| 224 |
319463GS |
BUTTON-SELECT Price: $32.31 |
| 225 |
705490 |
GROMMET-FUEL Price: $13.66 |
| 227 |
705478 |
COVER-PORT Price: $8.15 |
