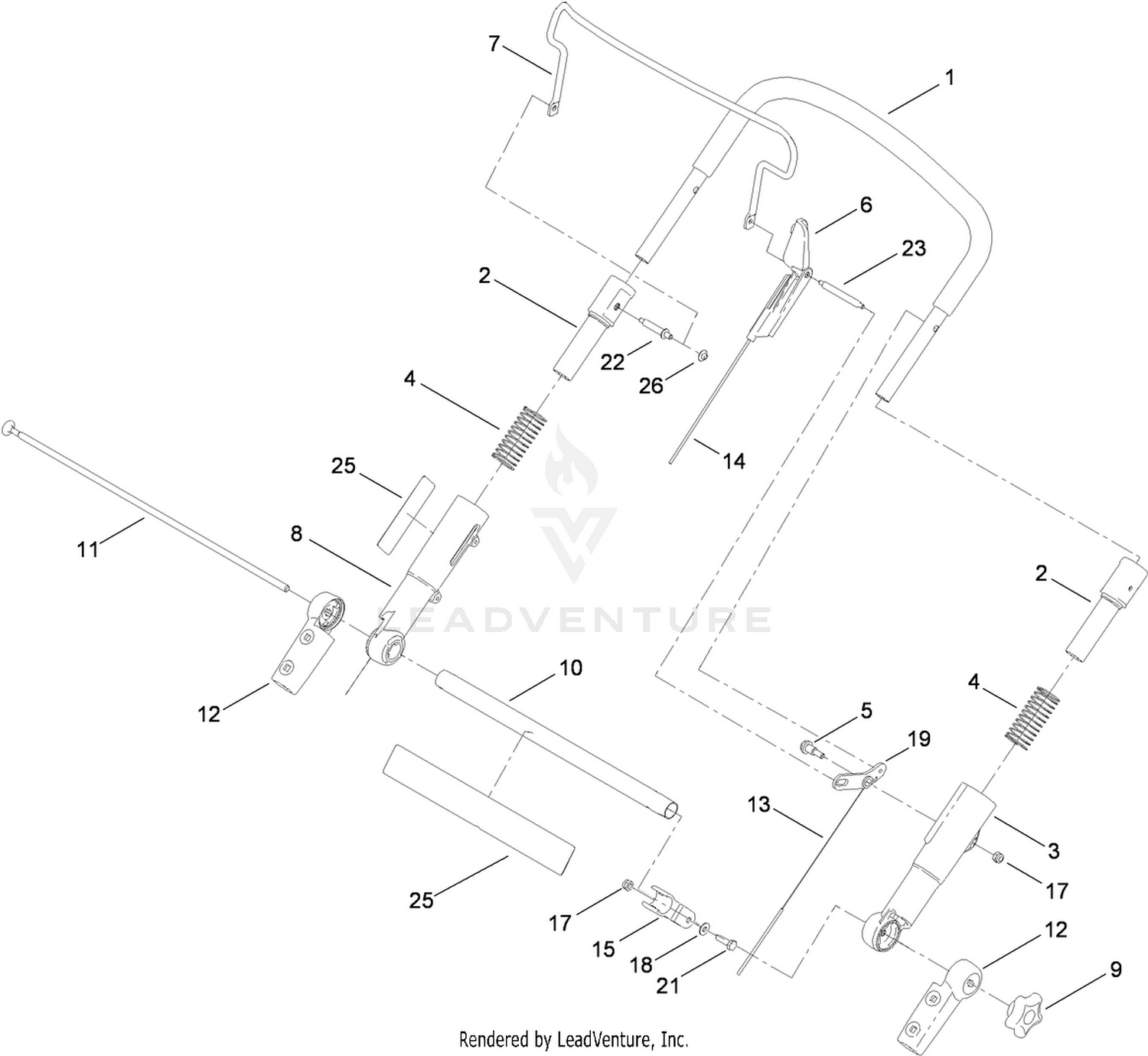

Upper Handle Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-0974 | UPPER HANDLE ASM Price: $80.99 |
| 2 | 112-8754 | SLEEVE-INNER Price: $6.09 |
| 3 | 112-1544 | SLEEVE-OUTER, LH Price: $15.99 |
| 4 | 107-3869 | SPRING-COMPRESSION Price: $1.29 |
| 5 | 104-0858 | BOLT-SHOULDER Price: $4.69 |
| 6 | 112-8764 | STOP-PIVOT Price: $4.39 |
| 7 | 110-1819-03 | BAIL-BRAKE Price: $24.99 |
| 8 | 112-1545 | SLEEVE-OUTER, RH Price: $15.99 |
| 9 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 10 | 107-3867-03 | TUBE-CROSS Price: $23.99 |
| 11 | 107-3871 | ROD-THREADED Price: $18.99 |
| 12 | 107-3865 | MOUNT-HANDLE, LOWER Price: $11.99 |
| 13 | 110-9465 | CABLE-TRACTION Price: $54.99 |
| 14 | 107-3903 | CABLE-BRAKE Price: $47.99 |
| 15 | 112-8801 | CLAMP-CABLE Price: $10.99 |
| 17 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 18 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 19 | 107-3893 | LEVER-TRACTION Price: $3.59 |
| 21 | 321-5 | SCREW-HH Price: $0.22 |
| 22 | 108-0959 | PIN-HANDLE Price: $5.99 |
| 23 | 108-1008 | PIN-BAIL, LH Price: $5.99 |
| 25 | 120-3907 | DECAL-ADS Price: $7.99 |
