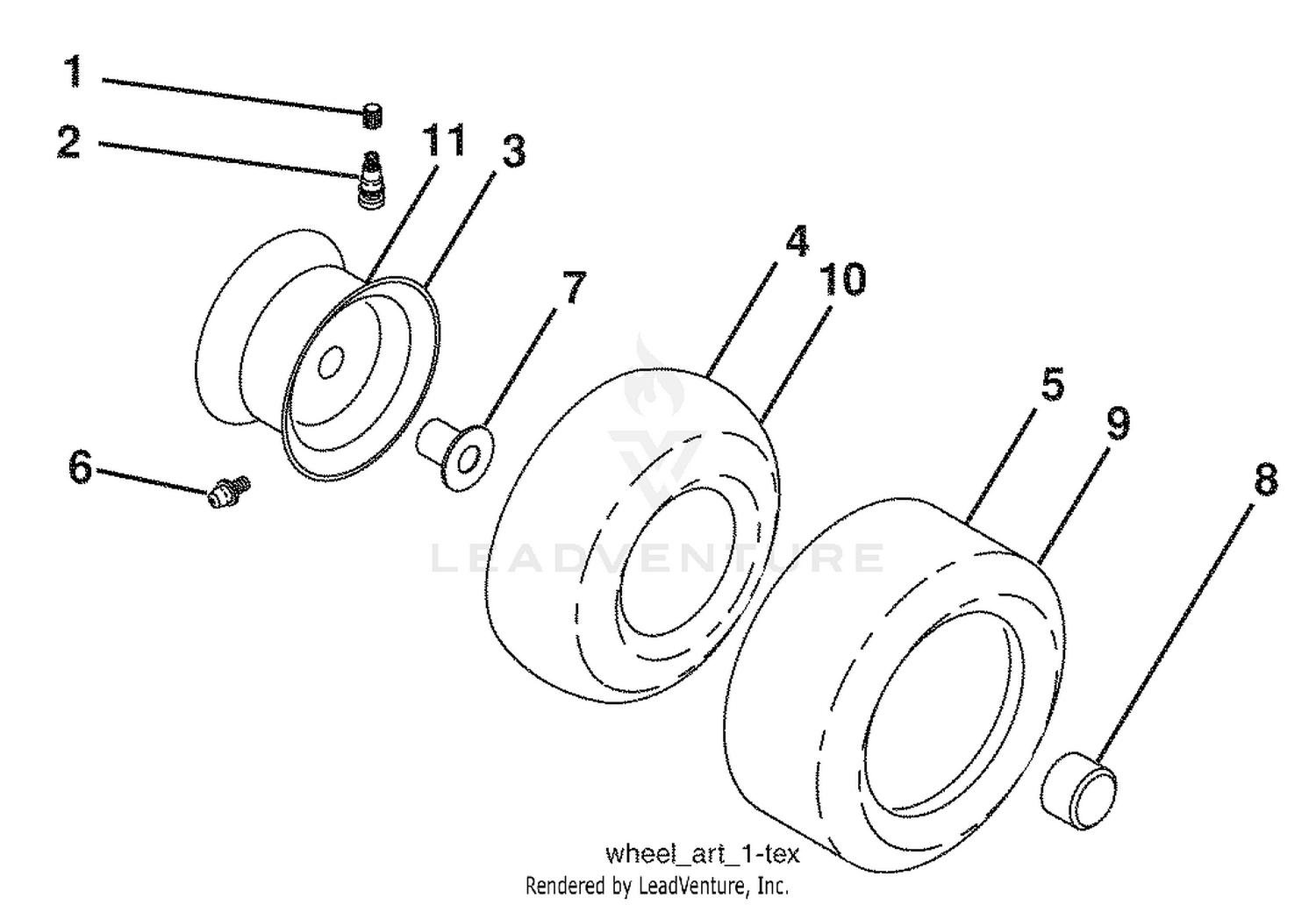

| Ref | Part Number | Description |
|---|
| 1 |
532059192 |
VALVE CAP Price: $4.99 |
| 1 |
57-3510-01 |
PLATE-SIDE This part replaces 57-3510. Price: $199.77 |
| 2 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 2 |
94-2568 |
DECAL-WARNING, AUGER This part replaces 53-7670. Price: $8.99 |
| 3 |
532106732 |
RIM.ASM.6X4.5.FRONT.SILVER This part replaces 532138336. Price: $79.99 |
| 3 |
92-8652 |
DECAL-WARNING This part replaces 61-8510. Price: $4.02 |
| 4 |
532059904 |
TUBE.5.3/4.5/6 Price: $19.99 |
| 4 |
57-3390 |
HOUSING WA *R Price: Call Us |
| 5 |
532122073 |
TIRE.15X6-6.TURF.SAVER.FRONT This part replaces 532106222. Price: $59.99 |
| 5 |
57-3570 |
RH EXTENSION PLT *R Price: $59.44 |
| 6 |
57-3710 |
RH EXT BAR WA *R Price: $310.00 |
| 7 |
323-12 |
SCREW-HH Price: $1.14 |
| 7 |
532009040 |
BEARING.FLANGE This part replaces 532124959. Price: $6.99 |
| 8 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
25-5170 |
CHUTE RING Price: $56.48 |
| 9 |
532420531 |
TIRE.18X9.5-8 TURF SAVER Price: $79.99 |
| 10 |
323-4 |
SCREW-HH Price: $1.02 |
| 10 |
532007152 |
TUBE - UNIVERSAL FOR 8" RIM This part replaces 532124926. Price: $49.99 |
| 11 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 11 |
532106108 |
RIM.ASM.8X7.REAR.SILVER This part replaces 532138337. Price: $99.99 |
| 12 |
61-8490 |
Decal-Rear Weight Price: Call Us |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
61-8650 |
GEARBOX Price: $1,979.54 |
| 16 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 17 |
57-3650 |
V-BELT Price: $39.50 |
| 18 |
57-3640 |
DRIVE PULLEY Price: $672.25 |
| 19 |
3242-4 |
SCREW-SET, SQH Price: $2.29 |
| 20 |
30-1070 |
BOLT 60183 Price: $18.09 |
| 21 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 22 |
57-3520 |
LH EXT BAR WA *R Price: Call Us |
| 23 |
57-3560 |
LH EXTENSION PLT *R Price: $59.44 |
| 24 |
57-3550 |
SKID MTG PLT *R Price: $86.15 |
| 25 |
17-6500 |
AUGER SIDE PLT DECAL Price: Call Us |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 27 |
57-3580-01 |
DISCONTINUED This part replaces 57-3580. Price: Call Us |
| 29 |
321-3 |
SCREW-HH Price: $0.28 |
| 30 |
3-0750 |
WASHER Price: $6.22 |
| 31 |
99-2303-01 |
BLADE-SCRAPER This part replaces 57-3470. Price: $105.01 |
| 32 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 33 |
3229-1 |
BOLT-CARR This part replaces 3229-25. Price: $3.39 |
| 34 |
99-2304-03 |
BRACKET-BLADE SUPPORT This part replaces 57-9890. Price: $8.94 |
