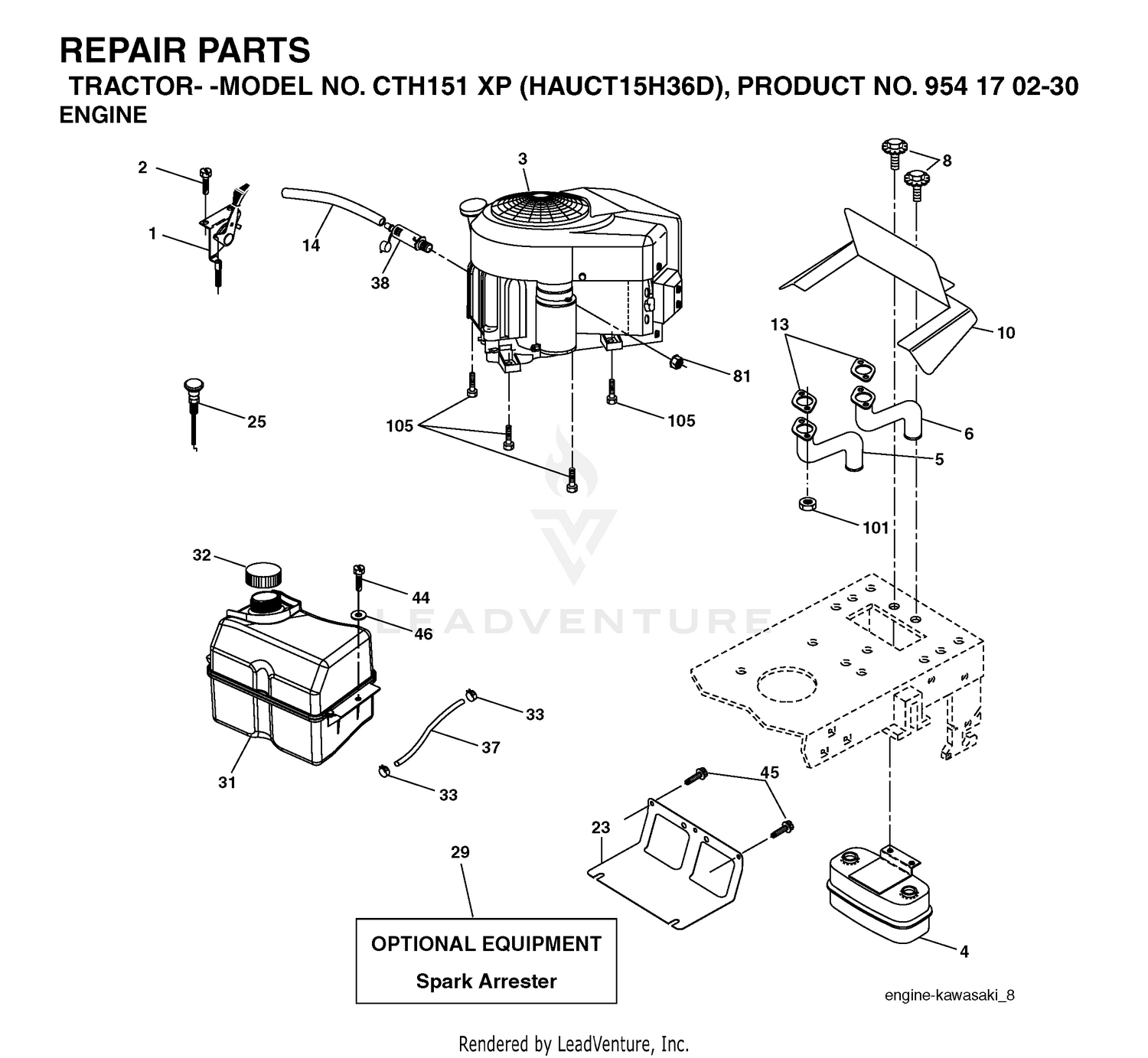

| Ref | Part Number | Description |
|---|
| 1 |
13-5620-01 |
DISCONTINUED This part replaces 13-5620. Price: Call Us |
| 1 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 2 |
3296-45 |
NUT-HEX Price: $3.79 |
| 2 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 3 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 4 |
323-4 |
SCREW-HH Price: $1.02 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 8 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
2710-15 |
LINK-OFFSET Price: $29.98 |
| 10 |
13-4070 |
DISCONTINUED Price: Call Us |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
3217-7 |
NUT-HEX Price: $0.28 |
| 12 |
323-9 |
SCREW-HH Price: $1.29 |
| 13 |
325-14 |
SCREW-HH Price: $2.64 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 14 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 15 |
13-0320 |
COLLAR-LOCK Price: $42.44 |
| 16 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 17 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 18 |
13-5550-01 |
ARM-WHEEL, GAUGE This part replaces 13-5550. Price: $504.47 |
| 19 |
32153-5 |
NUT-HEX Price: $1.59 |
| 20 |
325-11 |
SCREW-HH Price: $1.93 |
| 21 |
13-5700 |
DISCONTINUED Price: Call Us |
| 22 |
13-0560 |
SPACER Price: $5.29 |
| 23 |
13-0360 |
SPACER Price: $13.03 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
13-3070 |
SPACER Price: $8.69 |
| 25 |
13-5540-01 |
LIFTING LINK This part replaces 13-5540. Price: $40.11 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
328-10 |
SCREW-HH Price: $14.93 |
| 27 |
13-5230 |
DISCONTINUED X-REF Price: Call Us |
| 28 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 29 |
117-8544 |
WHEEL-CASTER This part replaces 13-2870. Price: $120.71 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
13-5570 |
PIVOT Price: $47.91 |
| 31 |
13-5590 |
ROD-ADJUSTING Price: $108.27 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 32 |
13-5670 |
SPACER-LOCKING Price: $189.75 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
3217-9 |
NUT-HH Price: $0.37 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
13-3020-01 |
SPROCKET-IDLER This part replaces 13-3020. Price: $125.22 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
