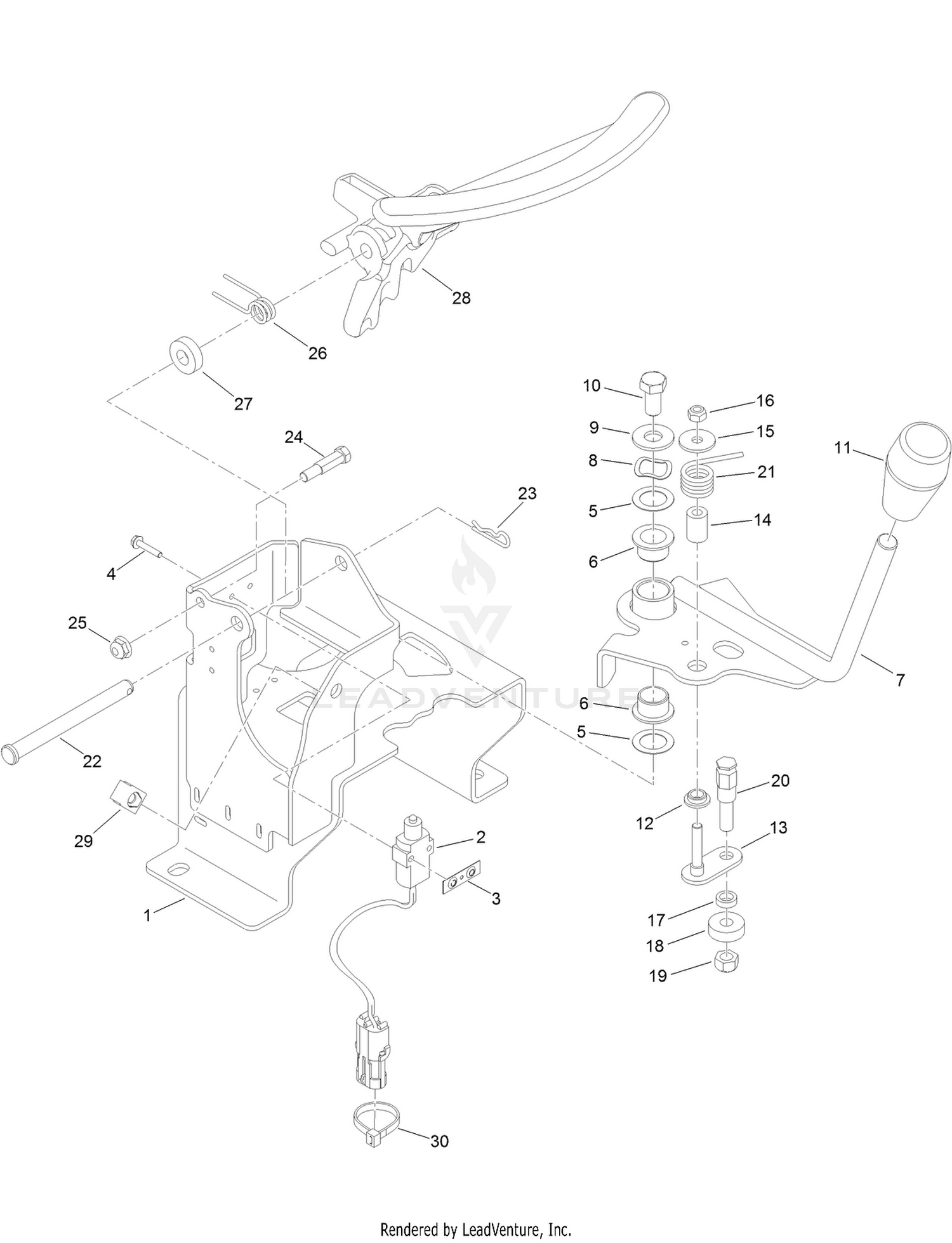

Paddle Shift Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-9644-03 | CONTROL Price: $159.96 |
| 2 | 99-3410 | SWITCH Price: $95.63 |
| 3 | 108-9824 | NUT-SWITCH Price: $1.97 |
| 4 | 117-5458 | SCREW-HHF Price: $0.22 |
| 5 | 7-4650 | WASHER-PLAIN Price: $0.41 |
| 6 | 108-2973 | BUSHING-FLANGE Price: $3.58 |
| 7 | 132-8178 | LEVER ASM Price: $107.90 |
| 8 | 3290-317 | WASHER-SPRING Price: $1.40 |
| 9 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 10 | 323-4 | SCREW-HH Price: $1.02 |
| 11 | 131-8473 | KNOB-TAPERED Price: $12.46 |
| 12 | 94-9619 | BUSHING Price: $17.13 |
| 13 | 120-3198 | ROLLER-PIVOT Price: $9.78 |
| 14 | 94-9618 | SPACER-SPRING Price: $9.85 |
| 15 | 3256-67 | WASHER Price: $0.49 |
| 16 | 33023-00 | NUT-LOCK Price: $0.25 |
| 17 | 82-4240 | SPACER-BEARING Price: $6.49 |
| 18 | 251-259 | BEARING-BALL Price: $13.67 |
| 19 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 20 | 94-9617 | PIN-SPRING Price: $9.91 |
| 21 | 94-9620 | SPRING-TORSION Price: $20.28 |
| 22 | 100-1413 | PIN-CLEVIS Price: $7.06 |
| 23 | 1-806003 | PIN-COTTER Price: $1.39 |
| 24 | 132-8187 | BOLT-SHOULDER Price: $33.18 |
| 25 | 104-7201 | NUT-HF Price: $0.69 |
| 26 | 131-6107 | SPRING-TORSION Price: $8.07 |
| 27 | 5-0652 | SPACER Price: $5.35 |
| 28 | 132-8173 | PADDLE Price: $44.08 |
| 29 | 107069 | CLIP Price: $1.79 |
