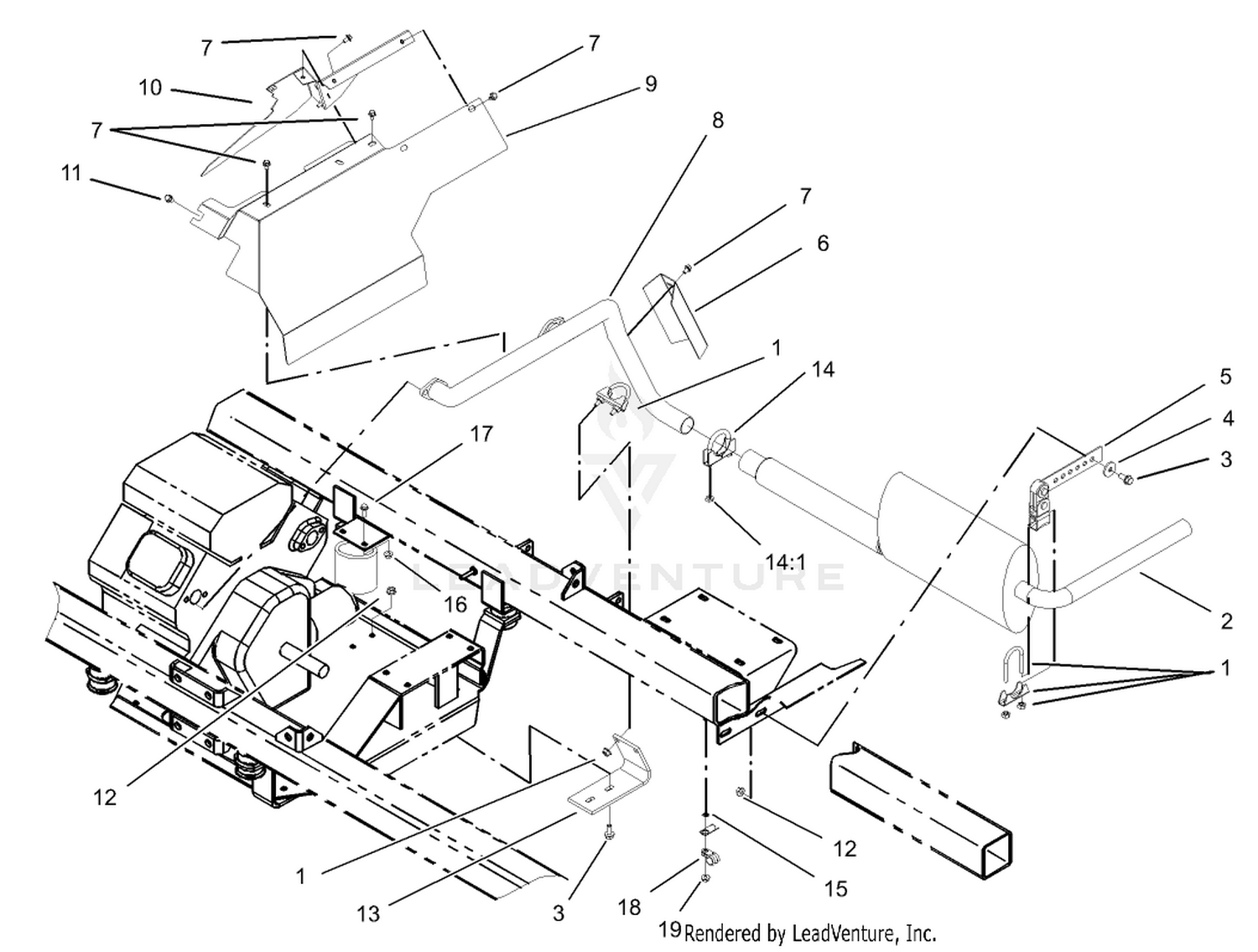

Exhaust Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2112-11 | CLAMP-MUFFLER Price: $7.37 |
| 2 | 100-8292 | MUFFLER TAILPIPE ASM Price: $789.04 |
| 3 | 3234-5 | SCREW-HHF Price: $0.42 |
| 4 | 356303 | WASHER Price: $13.44 |
| 5 | 100-8526 | HANGER-MUFFLER Price: $18.43 |
| 6 | 100-8409-03 | SHIELD-EXHAUST, LOWER Price: $28.68 |
| 7 | 3234-26 | SCREW-HHF Price: $2.69 |
| 8 | 100-8291 | HEADER PIPE ASM Price: $345.85 |
| 9 | 100-7028-03 | SHIELD-HEAT, UPPER Price: $256.39 |
| 10 | 100-7029-03 | SHIELD-HEAT, MIDDLE Price: $110.05 |
| 11 | 33103-012 | SCREW-HHF Price: $3.21 |
| 12 | 32128-20 | NUT-HF Price: $0.99 |
| 13 | 100-8527 | SUPPORT-HEADER Price: $39.69 |
| 14 | 2112-9 | CLAMP Price: $7.78 |
| 15 | 3255-7 | WASHER-LOCK/EXT Price: $1.39 |
| 16 | 32128-33 | NUT-HF Price: $0.25 |
| 17 | 3234-4 | SCREW-HHF Price: $0.50 |
| 18 | 2412-134 | CLAMP-R Price: $5.79 |
