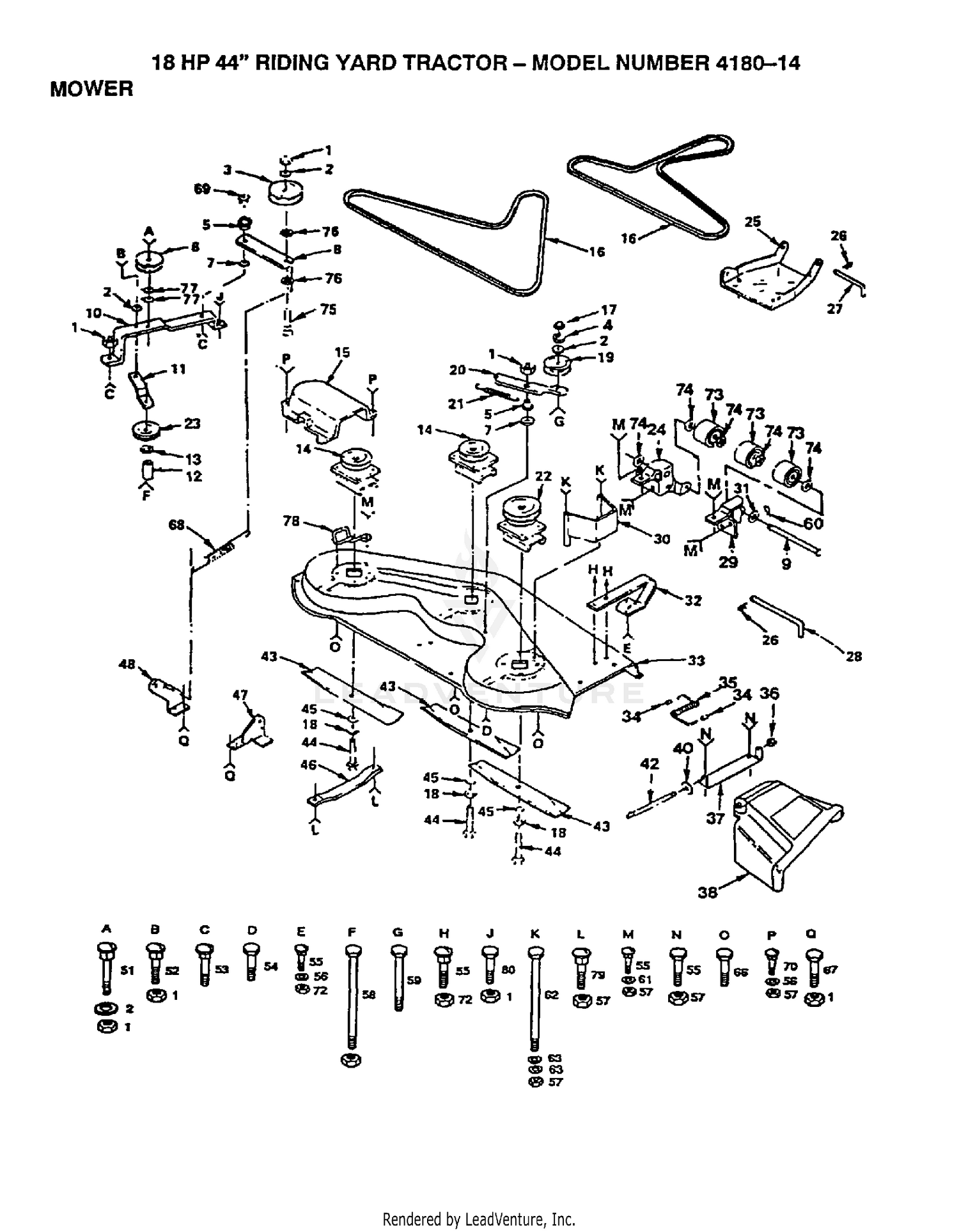

| Ref | Part Number | Description |
|---|
| 1 |
873680600 |
LOCKNUT Price: $1.99 |
| 2 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 3 |
532121316 |
PULLEY IDLER Price: $22.99 |
| 4 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 5 |
532106902 |
SPACER RETAINER Price: $2.99 |
| 6 |
532124858 |
Pulley, Idler (AYP part number) Price: $32.98 |
| 7 |
532106513 |
WASHER, WEAR LT (1 2) Price: $2.99 |
| 8 |
532121425 |
Arm, Idler (AYP part number) Price: $4.06 |
| 9 |
532109776 |
PIVOT PIN T Price: $8.99 |
| 10 |
532106523 |
Bar, Support, Idler (AYP part number) Price: $13.32 |
| 11 |
532106522 |
BRACE-IDLER YT Price: $2.99 |
| 12 |
532121236 |
Spacer Split 59/ x 1.25 Blk/zin (AYP part number) Price: $2.38 |
| 13 |
819131316 |
WASHER Price: $2.99 |
| 14 |
532136819 |
MANDREL ASM SEC 44/50 This part replaces 532121658. Price: $79.99 |
| 15 |
532106214 |
GUARD YT Price: $22.99 |
| 16 |
532106085 |
V-BELT T Price: $24.99 |
| 17 |
873220600 |
NUT.HEX.3/8-16UNC Price: $3.99 |
| 18 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 19 |
532102932 |
IDLER.FLAT.GTV Price: $22.99 |
| 20 |
532106526 |
ARM-IDLER YT Price: $12.99 |
| 21 |
532007644 |
Price: $6.23 |
| 22 |
532121705 |
Mandrel, Primary (AYP part number) This part replaces 532121704. Price: $129.99 |
| 23 |
532102403 |
IDLER-FLAT T Price: $22.99 |
| 24 |
532109599 |
BRACKET LH YTH Price: $15.31 |
| 25 |
532105662 |
Link, Parallel (AYP part number) Price: $15.31 |
| 26 |
532004921 |
SPRING.RETAINER Price: $3.99 |
| 27 |
532105744 |
ROD,FRT PARALL LT Price: $9.99 |
| 28 |
532109835 |
Pin, Hinge, Rear (AYP part number) Price: $13.61 |
| 29 |
532109600 |
Bracket, Lift, R.H. (AYP part number) Price: $23.03 |
| 30 |
532108119 |
Guard, Belt, R.H. (AYP part number) Price: $12.60 |
| 31 |
532052160 |
Washer (AYP part number) This part replaces 819151616. Price: $3.99 |
| 33 |
532121423 |
Housing, Mower (AYP part number) Price: $249.99 |
| 34 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 35 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 36 |
532110452 |
NUT PUSH M Price: $1.99 |
| 37 |
532137607 |
Bracket Assembly, Deflector (AYP part number) This part replaces 532109743. Price: $3.99 |
| 38 |
532109785 |
DEFLECTOR SHIELD Price: $22.99 |
| 40 |
819111016 |
WASHER Price: $5.99 |
| 42 |
532106735 |
ROD-HINGE T Price: $4.99 |
| 43 |
532025034 |
BLADE.106635X.44(NLA PENDING) This part replaces 532106635. Price: $19.99 |
| 44 |
874610624 |
BOLT.3/8-24X1-1/2 Price: $3.99 |
| 45 |
819132012 |
WASHER This part replaces 532061537. Price: $2.99 |
| 46 |
532007631 |
RUNNER LH Price: $11.99 |
| 47 |
532123807 |
Bracket, Suspension, Rear, R.H. (AYP part number) Price: $12.33 |
| 48 |
532123808 |
Bracket, Suspension, Rear, LH (AYP part number) This part replaces 532123801. Price: $6.73 |
| 51 |
872140614 |
BOLT Price: $2.99 |
| 52 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 53 |
872140612 |
BOLT Price: $2.99 |
| 54 |
874760620 |
BOLT Price: $3.99 |
| 55 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 56 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 57 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 58 |
874780648 |
BOLT.HEX.FIN.3/8-16 X 3.GR5 This part replaces 874760648. Price: $1.99 |
| 59 |
874110632 |
Screw, Flat Head 3/8-16 x 2 (AYP part number) Price: $2.99 |
| 60 |
876020412 |
COTTER PIN Price: $3.99 |
| 61 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 62 |
874760580 |
BOLT Price: $2.99 |
| 63 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 66 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 67 |
872140606 |
BOLT Price: $3.99 |
| 68 |
532102727 |
SPRING.EXT.8.5" Price: $6.99 |
| 69 |
873680600 |
LOCKNUT This part replaces 532005394. Price: $1.99 |
| 70 |
872110506 |
BOLT.5/16-18. Price: $3.99 |
| 72 |
532068478 |
LOCKNUT This part replaces 532001685. Price: $3.99 |
| 73 |
532109729 |
ROLLER T Price: $6.99 |
| 74 |
819151610 |
Washer 15/32 x 1 x 10 Gauge (AYP part number) Price: $5.99 |
| 75 |
872140620 |
BOLT Price: $3.99 |
| 76 |
819131210 |
Washer 13/32 x 1-3/4 x 10 Ga. (AYP part number) Price: $2.99 |
| 77 |
734117201 |
WASHER This part replaces 819131410. Price: $1.99 |
| 78 |
532121352 |
Keeper, L.H. Mandrel (AYP part number) Price: $3.00 |
| 79 |
872110505 |
BOLT Price: $3.99 |
| 80 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 532105185 |
Decal, |
Instruction Caution (Bloody Finger) (Eng/Fre) (AYP part number) Price: $4.62 532105185 |
| 532108592 |
Decal, |
Belt Instruction (AYP part number) Price: $7.00 532108592 |
| 532121826 |
Deck, |
Mower Complete (AYP part number) Price: $999.99 532121826 |
