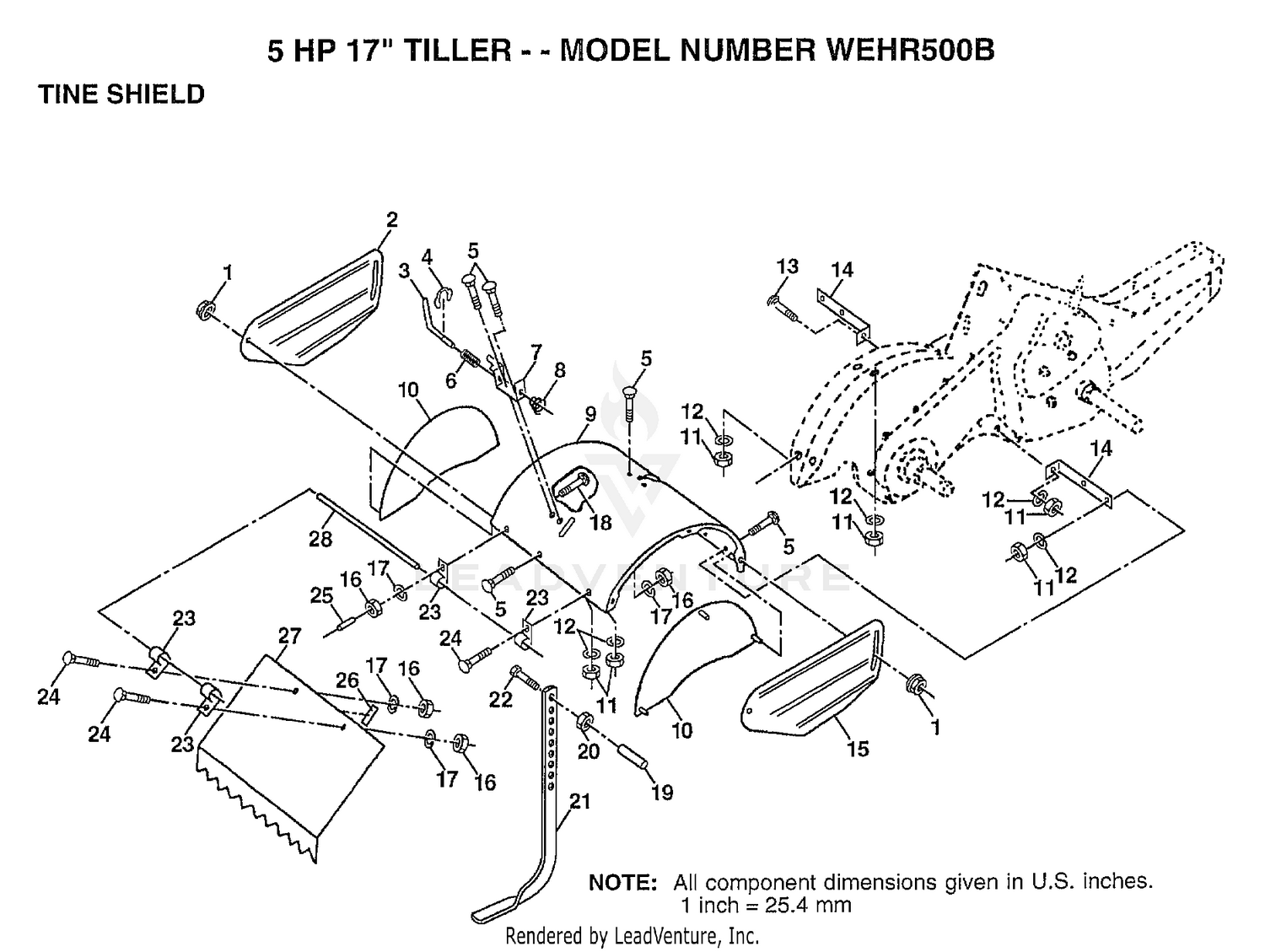

| Ref | Part Number | Description |
|---|
| 1 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 1 |
98000129 |
NUT Price: Call Us |
| 2 |
104086X431 |
SHIELD.SD.OUT.LH Price: Call Us |
| 2 |
105-7822 |
DECAL-CAUTION Price: $13.82 |
| 3 |
21-2660-01 |
PLATE-SIDE Price: $299.86 |
| 3 |
8393J |
STAKE PIN TI Price: Call Us |
| 4 |
12000036 |
KLIP RING TI Price: Call Us |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 5 |
72140506 |
BOLT Price: Call Us |
| 6 |
8394J |
SPRING TI Price: Call Us |
| 7 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 7 |
8392J |
LATCH BRACKET TI Price: Call Us |
| 8 |
109230X |
SPRING CRT Price: Call Us |
| 9 |
102326X419 |
SHLD TINE Price: Call Us |
| 9 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 10 |
104085X419 |
SUB= 104085X366 Price: Call Us |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 11 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 12 |
10040500 |
LOCKWASHER Price: Call Us |
| 13 |
72110510 |
BOLT Price: Call Us |
| 14 |
124343X |
BRKT SHIELD TINE Price: Call Us |
| 14 |
32103-2 |
NUT-WING Price: $0.68 |
| 15 |
104101X431 |
SHIELD.SD.OUT.RH Price: Call Us |
| 15 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 16 |
73220400 |
SUB= 50675 Price: Call Us |
| 17 |
10040400 |
LOCKWASHER Price: Call Us |
| 18 |
72040410 |
BOLT Price: Call Us |
| 19 |
102701X |
GRIP CRT Price: Call Us |
| 20 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 21 |
102156X500 |
STAKE DEPTH 16 Price: Call Us |
| 22 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 22 |
74930632 |
BOLT Price: Call Us |
| 23 |
4440J |
HINGE CRT Price: Call Us |
| 24 |
38-4550-03 |
COVER-INSTRUMENTS Price: $448.71 |
| 24 |
72140404 |
BOLT Price: Call Us |
| 25 |
6712 |
J VINYL CAP TI Price: Call Us 6712 J |
| 25 |
85-4730 |
DECAL-ONLY, HYD OIL Price: $2.46 |
| 26 |
109227X |
PAD IDLER TI Price: Call Us |
| 26 |
92-7800 |
BATTERY COVER ASM Price: $65.49 |
| 27 |
102695X419 |
SUB= 102695X366 Price: Call Us |
| 27 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 28 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 29 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 30 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 32 |
93-3183 |
TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 37 |
68-8610-01 |
EXTENSION-FENDER Price: $186.20 |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 39 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 40 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 41 |
88-0070-01 |
PLATE-FLOOR Price: $169.68 |
| 44 |
93-3177-03 |
COVER-BOX, TOOL Price: $56.35 |
| 47 |
98-3879 |
DISCONTINUED Price: Call Us |
| 50 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 54 |
322-6 |
SCREW-HH Price: $0.45 |
| 55 |
2412-126 |
R-CLAMP Price: $2.51 |
| 56 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
