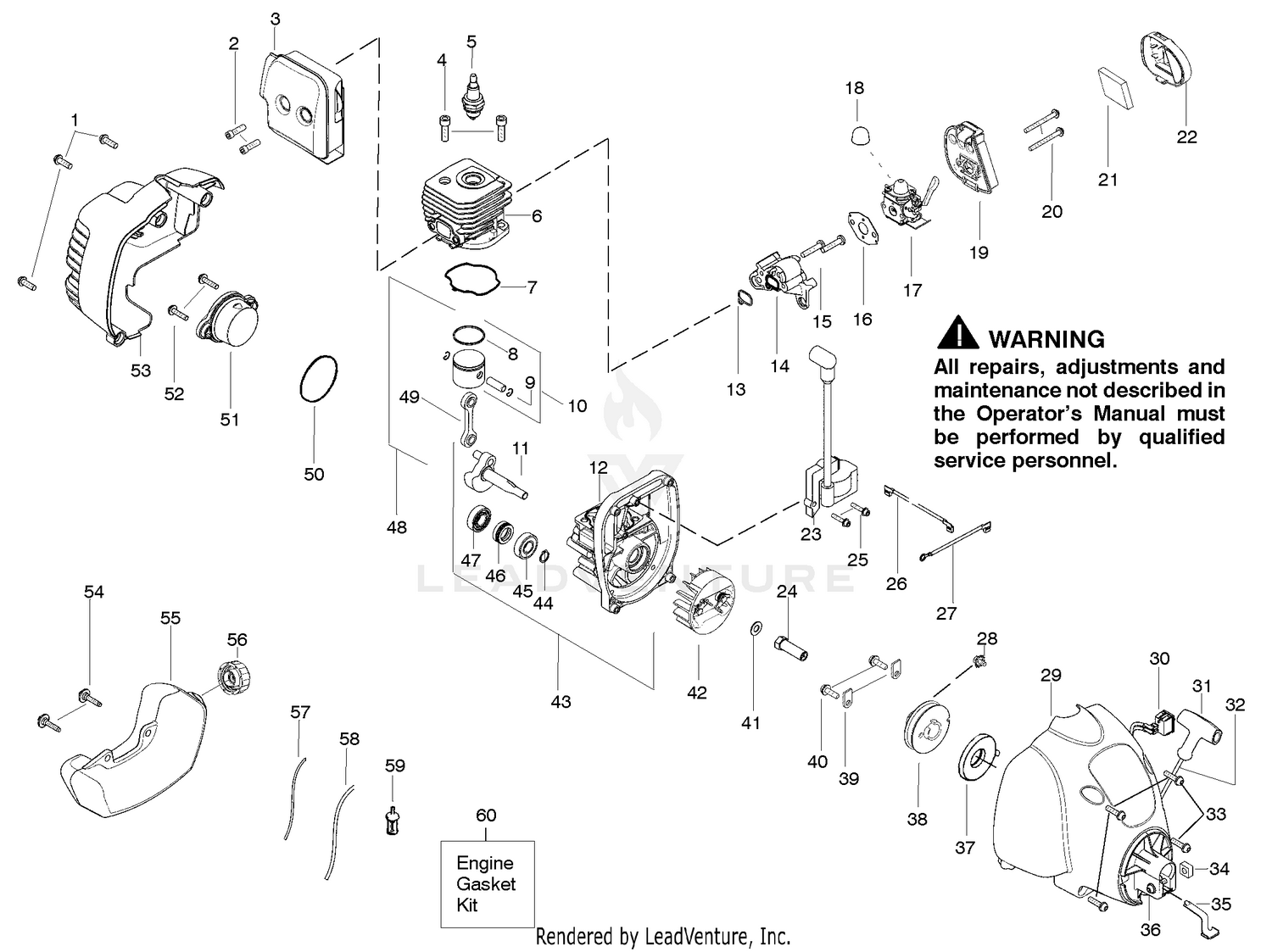

Engine
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015880 | Screw Price: $1.99 |
| 2 | 530058982 | Bolt-Muffler Price: $1.99 |
| 4 | 530015953 | Screw-Cylinder Price: $1.99 |
| 5 | 952030249 | Spark Plug (RCJ 6Y) Price: Call Us |
| 6 | 530012541 | Cylinder Price: $11.99 |
| 7 | 530071750 | Seal-Cylinder (kit) Price: $8.99 |
| 8 | 545154001 | RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 | 530015162 | Retainer-Piston Pin Price: $1.99 |
| 11 | 530057829 | Assy-Crankshaft Price: $12.99 |
| 13 | 530071750 | Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 | 530057547 | Adapter-Carb. Price: $7.99 |
| 15 | 530016441 | Screw Price: $1.99 |
| 16 | 530071750 | Gasket-Carb. (kit) Price: $8.99 |
| 17 | 530071752 | Kit-Carb. Zama (C1U-W18) This part replaces 530071822. Price: $29.99 |
| 18 | 530035497 | Bulb - Purge Walbro Price: $4.99 |
| 18 | 530058709 | Bulb - Purge Zama Price: $4.69 |
| 19 | 574615001 | BASE This part replaces 530059267. Price: $1.99 |
| 20 | 530016429 | Screw Price: $1.99 |
| 21 | 530057781 | Foam-Air Filter Price: $1.99 |
| 22 | 530057584 | Cover-Air Box Price: $4.99 |
| 23 | 530039237 | IGNITION MODULE This part replaces 545024901. Price: $22.99 |
| 24 | 530038604 | Coupling-Drive Price: $1.99 |
| 25 | 530016357 | Screw Price: $1.99 |
| 26 | 530014663 | Assy-Leadwire Price: $5.99 |
| 27 | 530014662 | Assy-Ground Wire Price: $4.99 |
| 28 | 530016392 | Screw Price: $1.99 |
| 29 | 545010611 | Assy.-Fan Hsg Price: $7.99 |
| 30 | 545081869 | Kit-Switch Price: $1.99 |
| 31 | 530027569 | Handle-Starter Price: $1.99 |
| 32 | 530071767 | Kit - Rope Price: $3.99 |
| 33 | 530016386 | Screw Price: $5.99 |
| 34 | 530016124 | Nut Price: $1.99 |
| 35 | 530057588 | Clip-Spring Price: $1.99 |
| 36 | 530016430 | Screw Price: $2.99 |
| 37 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 38 | 530071786 | Kit-Pulley-Starter Price: $3.99 |
| 39 | 530027523 | Retainer-Pulley Price: $2.99 |
| 40 | 530015775 | Screw Price: $1.99 |
| 41 | 530015828 | Washer-Flat Price: $1.99 |
| 42 | 530054115 | Assy-Flywheel This part replaces 545005101. Price: $27.99 |
| 44 | 530015941 | Retain. Ring-C'shaft Price: $1.99 |
| 45 | 530055728 | Outer Bearing Price: $6.99 |
| 46 | 530019264 | Seal-C'case Price: $2.99 |
| 47 | 738210101 | BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 49 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 50 | 530071750 | O-Ring-C'case (kit) Price: $8.99 |
| 52 | 530016386 | Screw Price: $5.99 |
| 53 | 545011004 | Shroud-Rear Price: $2.99 |
| 54 | 530016445 | Retainer-Tank Price: $1.99 |
| 56 | 530014347 | Assy-Fuel Cap Price: $4.49 |
| 57 | 530069247 | Kit-Fuel Line (Small) Price: $3.69 |
| 58 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
| 59 | 530095646 | Assy-Fuel Pickup Price: $2.69 |
