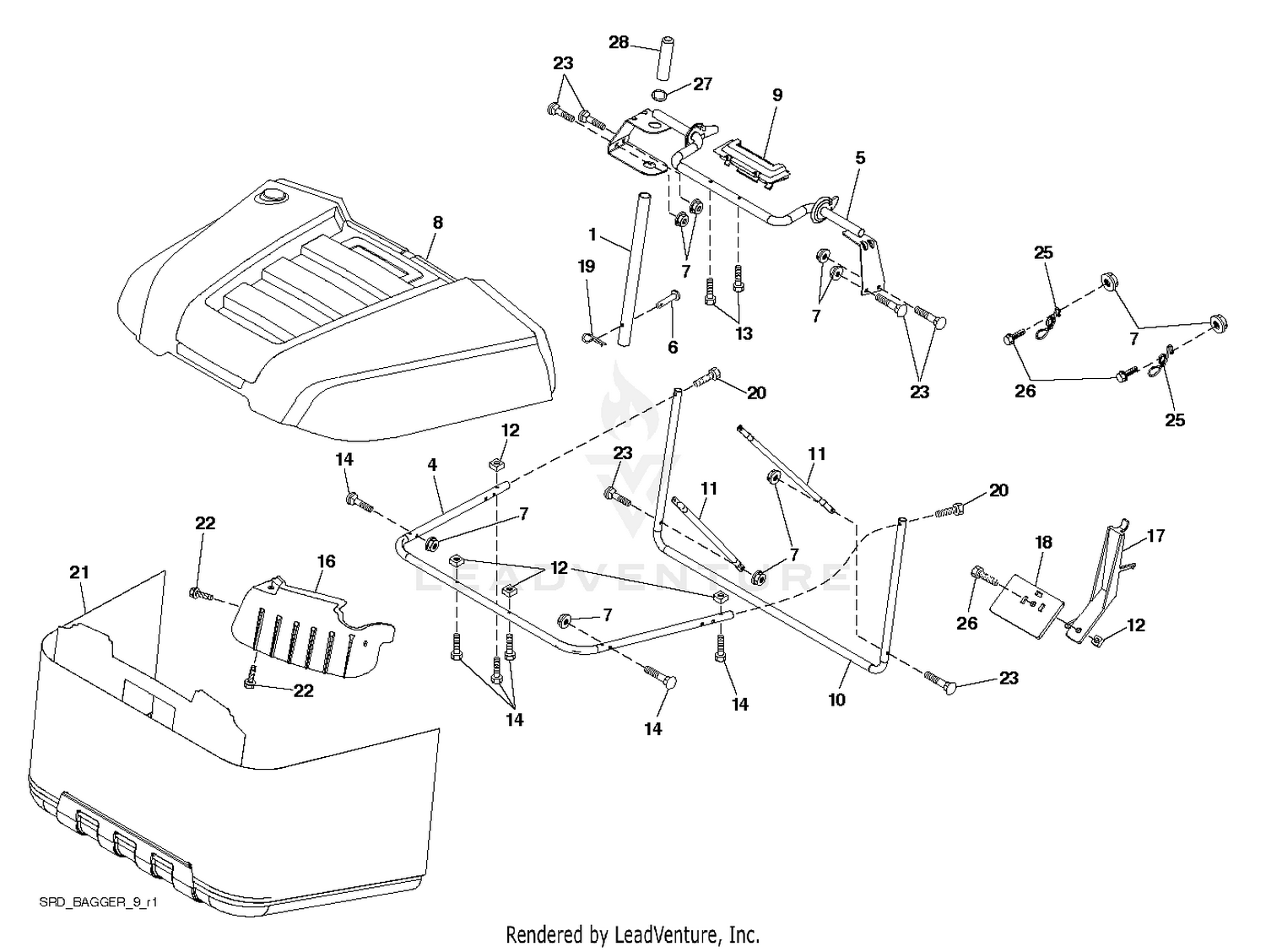

| Ref | Part Number | Description |
|---|
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 1 |
95-7522 |
AXLE Price: $377.20 |
| 2 |
99-7564 |
SEAL-OIL Price: $25.36 |
| 3 |
95-7544 |
CLIP Price: $4.04 |
| 4 |
579785402 |
BAGGER SWAGE TUBE HANDLE ASSY This part replaces 532439612. Price: $44.99 |
| 4 |
95-7523 |
SPACER Price: $26.89 |
| 5 |
583365901 |
FRAME.ASM.TOP.BAGGER.SRD This part replaces 532417632. Price: $89.99 |
| 5 |
99-7555 |
SHIM 0.3 Price: $3.29 |
| 5 |
99-7556 |
SHIM 0.2 Price: $3.29 |
| 5 |
99-7557 |
SHIM 0.5 Price: $3.37 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 6 |
95-7524 |
GEAR-BEVEL, 29 TOOTH Price: $222.95 |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 7 |
99-7534 |
BEARING-BALL Price: $65.44 |
| 8 |
583503801 |
SRD.BAGGER.TOP.SUB.ASM This part replaces 532435165. Price: $119.99 |
| 8 |
95-7521 |
COVER-AXLE Price: $107.87 |
| 9 |
106-1071 |
O-RING Price: $18.43 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 10 |
532417190 |
FRAME.FRONT.SRD.BAGGER Price: $54.99 |
| 10 |
93-7775 |
BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 |
99-7539 |
CLIP Price: $11.07 |
| 12 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 14 |
583392001 |
BOLT.SHOULDER.HX.WSH.1/4X1.150 This part replaces 532421800. Price: $6.99 |
| 16 |
532421566 |
DEFLECTOR.BAGGER.SRD Price: $12.99 |
| 17 |
532421749 |
LEVER.BAGGER.FULL.SRD.BLACK Price: $9.99 |
| 18 |
583391001 |
PADDLE.BAGGER.FULL.SRD.BLACK This part replaces 532421750. Price: $9.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
585368801 |
SCREW.HEXCAP.1/4-20X1.375(2 2) Price: $2.99 |
| 21 |
583825601 |
BAG.ASM.BAGGER.SRD.HUSQVA.GREY This part replaces 532429981. Price: $129.99 |
| 22 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
