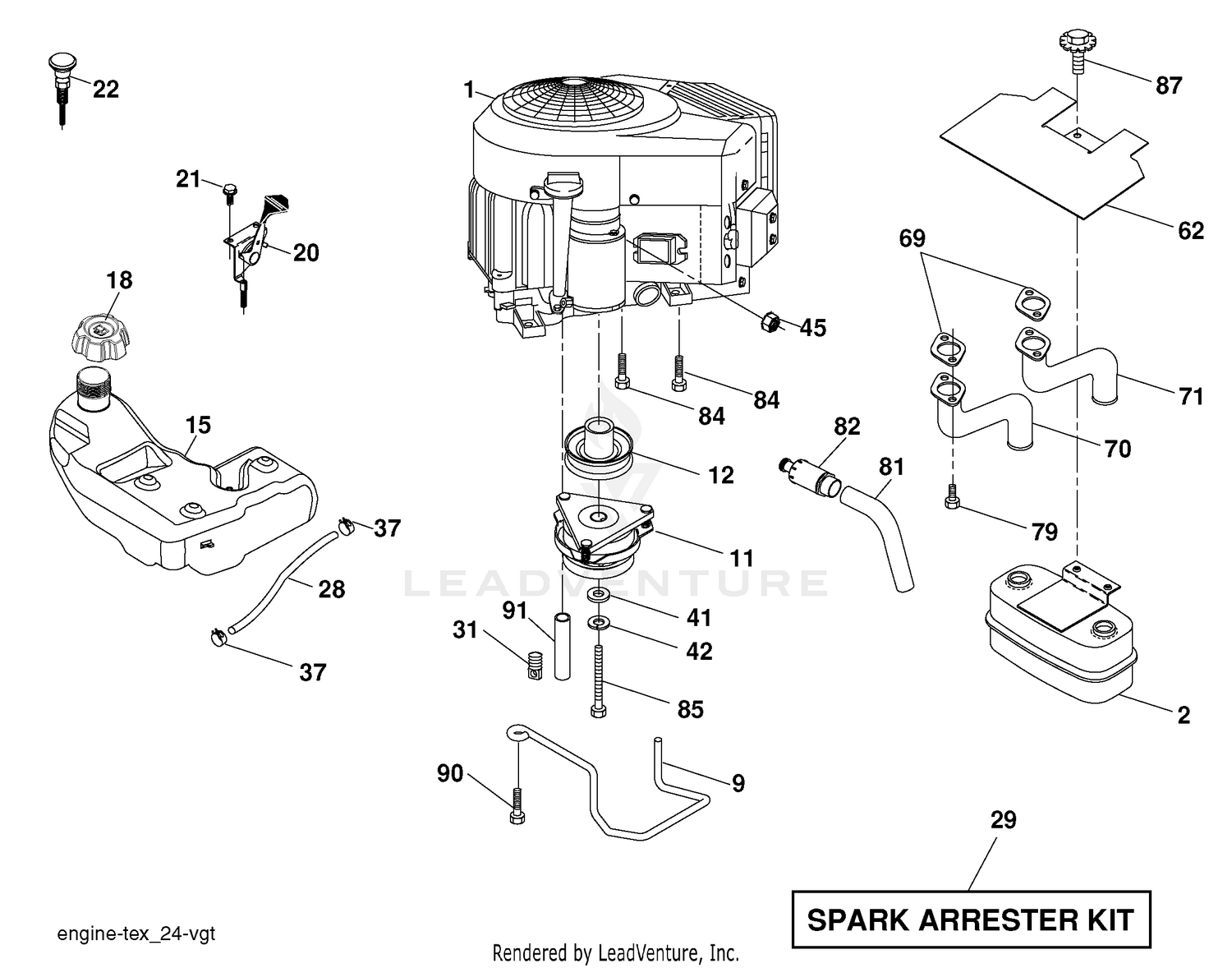

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
149723 |
Muffler Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 4 |
321-3 |
SCREW-HH Price: $0.28 |
| 5 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 6 |
43-6320 |
COLLAR Price: $24.71 |
| 7 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 8 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 9 |
194320 |
Keeper Asm. Belt Engine Price: Call Us |
| 9 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 10 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 11 |
179335 |
Clutch Electric Price: Call Us |
| 11 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
194343 |
Pulley Engine Price: Call Us |
| 12 |
3217-7 |
NUT-HEX Price: $0.28 |
| 13 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 14 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 15 |
193499 |
Tank Fuel 4.0 Price: Call Us |
| 15 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 16 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
74-2700-03 |
CONTROL ROD ASM Price: $132.44 |
| 18 |
195951 |
Cap Asm Price: Call Us |
| 18 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 19 |
21-0141 |
RH BALL JOINT ASM This part replaces 21-0141-03. Price: $109.12 |
| 20 |
175437X421 |
Control Throttle Price: Call Us |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 21 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 22 |
187767X428 |
Control Choke Price: Call Us |
| 22 |
99-5347-03 |
TRACTION PEDAL ASM Price: $219.38 |
| 23 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 24 |
99-5348 |
PLATE-CLUTCH Price: $61.10 |
| 25 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 26 |
100-8016 |
FIELD CORE COIL ASM Price: $165.29 |
| 27 |
92-9701 |
SHAFT-CRUISE Price: $101.17 |
| 28 |
401135 |
Fuel Line Price: Call Us |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 31 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 41 |
126197X |
Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 62 |
146629 |
Shield Heat Muffler Price: Call Us |
| 69 |
165391 |
Gasket Price: Call Us |
| 70 |
159955 |
Tube Exhaust LH Price: Call Us |
| 71 |
160589 |
Tube Exhaust RH Price: Call Us |
| 79 |
183906 |
Screw Socket Head Price: Call Us |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
179953 |
Bolt Hex 7/16-20 x 3.75 Gr. 5 Price: Call Us |
| 87 |
198239 |
Bolt 5/16-18 unc x 1 w/Sems Price: Call Us |
| 90 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
