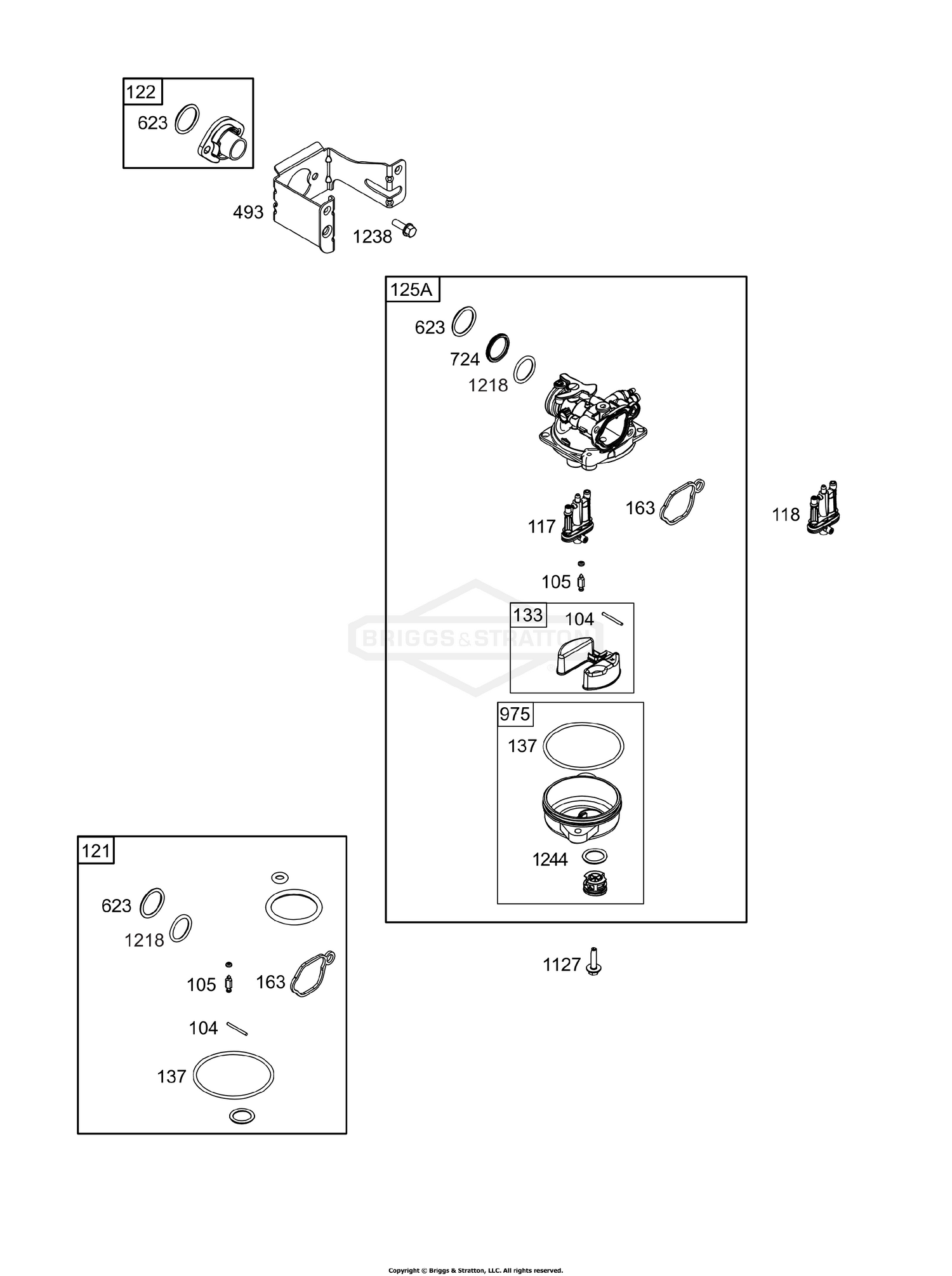

Carburetor Group
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 104 | 590558 | PIN, Float Hinge Price: $3.87 |
| 105 | 84013086 | VALVE, FLOAT NEEDLE This part replaces 594581. Price: $11.96 |
| 122 | 590549 | SPACER, Carburetor Price: $9.53 |
| 125A | 84001982 | CARBURETOR ASSEMBLY Price: $47.07 |
| 133 | 591120 | FLOAT, Carburetor Price: $13.29 |
| 137 | 594633 | GASKET, Float Bowl Price: $13.14 |
| 163 | 799580 | GASKET, Air Cleaner Price: $5.04 |
| 493 | 593330 | BRACKET, Mounting Price: $8.31 |
| 724 | 697478 | RETAINER, Seal Price: $4.03 |
| 975 | 594632 | BOWL, Float Price: $15.76 |
