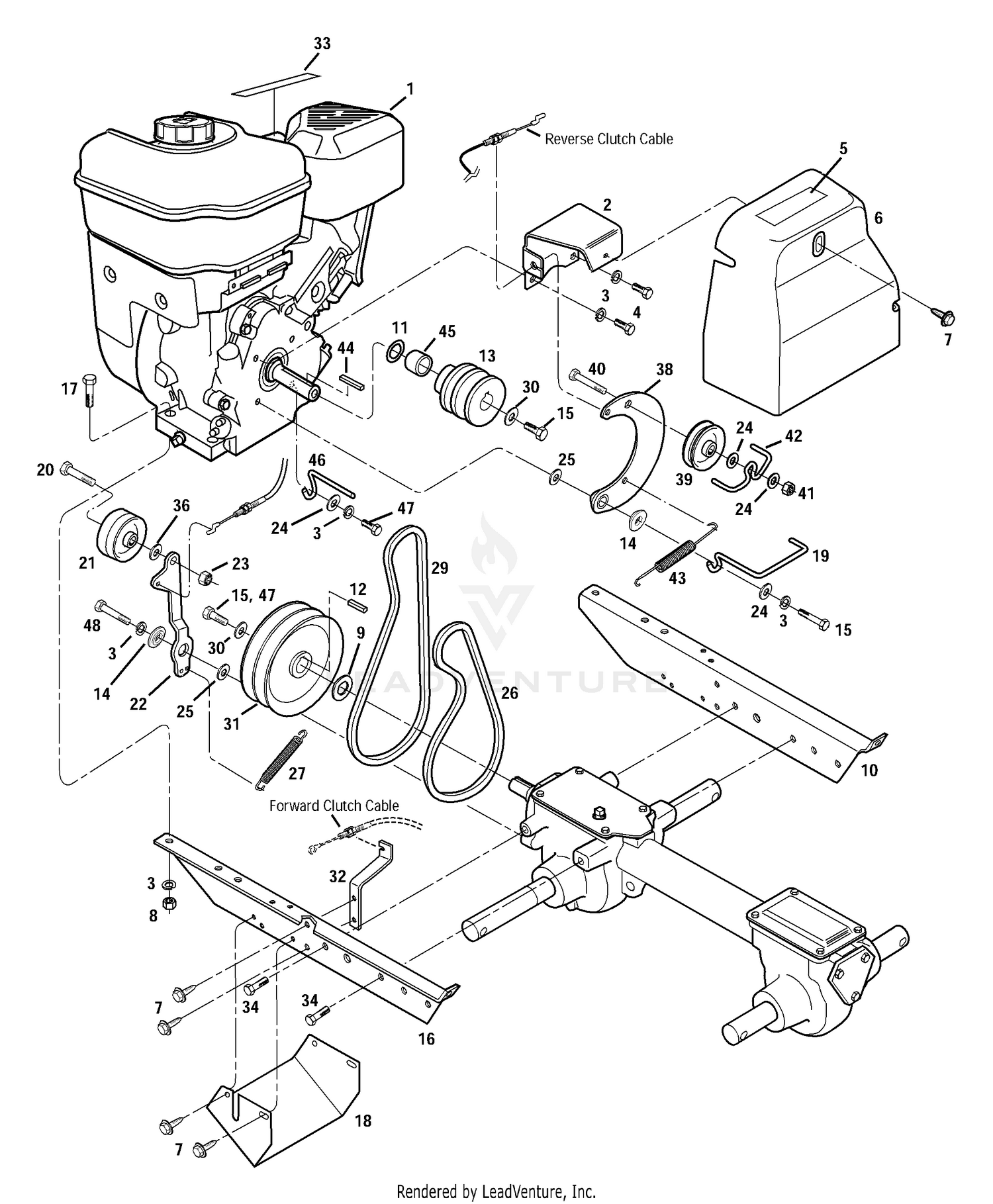

| Ref | Part Number | Description |
|---|
| 2 |
786-04070-0637 |
BELT COVER BRACKET Not Available This part replaces 1917326001. Price: |
| 3 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 4 |
1111696 |
HEX SCREW Not Available Price: |
| 5 |
1904557 |
DECAL-WARNING BELT Not Available Price: |
| 7 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 9552. Price: $3.86 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 9 |
GW-50027 |
Support Washer This part replaces 50027. Price: $5.94 |
| 10 |
1916795001 |
BRACKET-ENGINE Not Available Price: |
| 11 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 12 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 14 |
748-04087A |
Forward Idler Pivot Spacer This part replaces 1917746. Price: $5.66 |
| 16 |
1916794001 |
BRACKET, ENGINE, LEFT Not Available Price: |
| 17 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 1100799. Price: $3.75 |
| 18 |
786-04095-0637 |
TRANSMISSION PULLEY GUARD Not Available This part replaces 1916652001. Price: |
| 20 |
9558 |
Hex Hd. Screw, 3/8-16 x 1-1/2 Price: Call Us |
| 21 |
756-04170 |
Forward Idler Pulley This part replaces 9090. Price: $31.29 |
| 22 |
786-04275-0637 |
Forward Tiller Direction Idler Arm This part replaces 1918744. Price: $31.56 |
| 23 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 24 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 25 |
GW-9929 |
Flat Washer This part replaces 9929. Price: $3.15 |
| 27 |
732-04085 |
Extension Spring, 480 OD x 500 LG This part replaces 55034. Price: $12.40 |
| 30 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 32 |
1916117001 |
BRACKET, CABLE MOUNT Not Available Price: |
| 33 |
1900766 |
DECAL-STARTING STA Not Available Price: |
| 34 |
710-04049 |
Flange Screw, 5/16-18,.625, Gr5 This part replaces 1186328. Price: $4.11 |
| 36 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 44 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 1108841. Price: $4.20 |
| 48 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces 1100045. Price: $3.66 |
