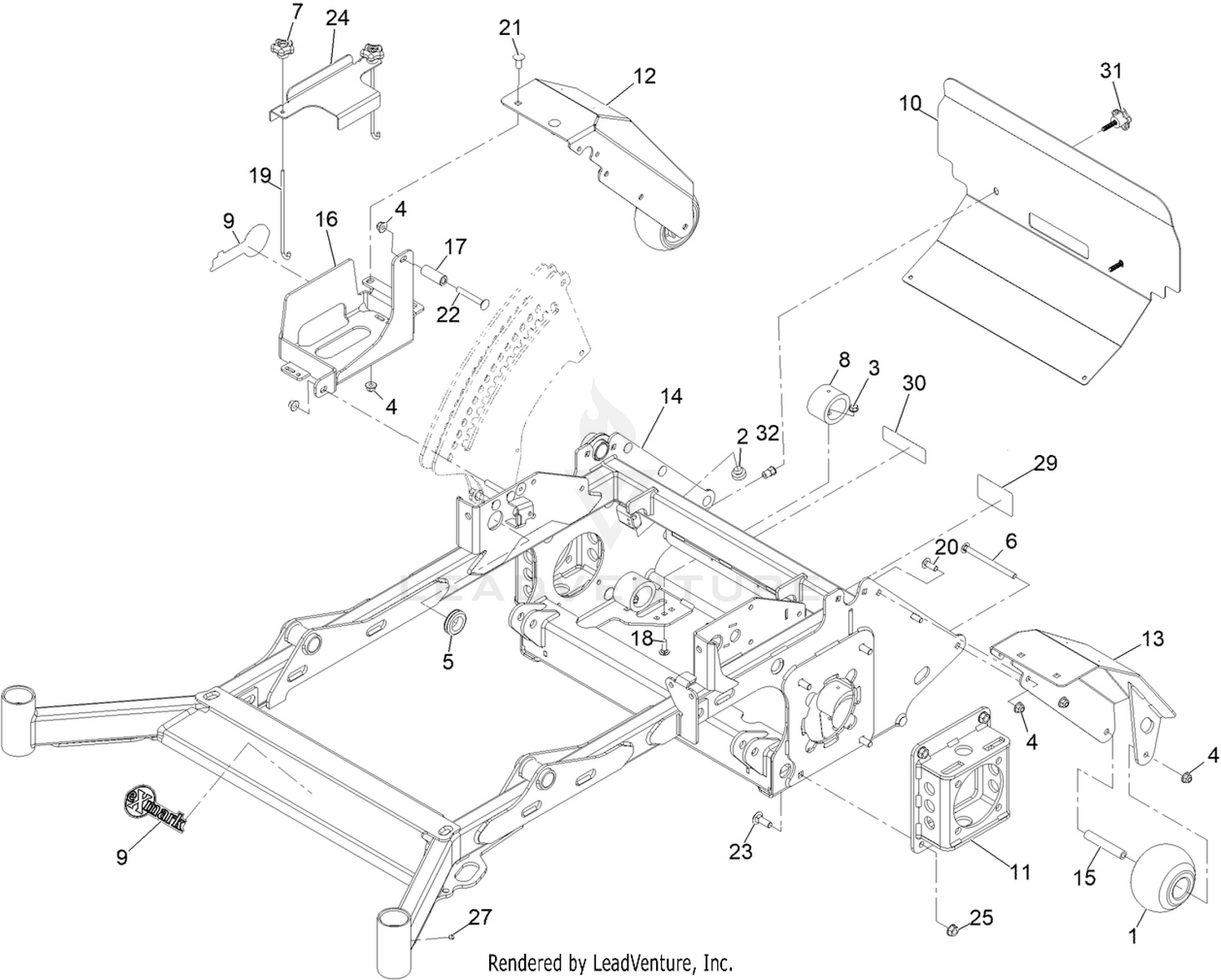

Main Frame Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 103-8415 | ROLLER-SCALP, ANTI Price: $21.99 |
| 2 | 104-1412 | BUMPER-RUBBER Price: $15.99 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.89 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.19 |
| 5 | 108-3723 | GROMMET Price: $7.19 |
| 6 | 109-6795 | BOLT-CARR Price: $4.79 |
| 7 | 108-6402 | KNOB-HANDLE Price: $1.39 |
| 8 | 135-2548 | BUMPER-ISOLATOR Price: $16.99 |
| 9 | 126-6575 | DECAL-EXMARK LOGO Price: $5.19 |
| 10 | 142-8804-03 | GUARD-REAR FOOT Price: $107.99 |
| 11 | 142-8813-03 | WLD-MTR MOUNT 60 Price: $179.99 |
| 12 | 146-6220-01 | Fender- Wheel RH [red] Price: $109.99 |
| 13 | 146-6219-01 | Fender- Wheel LH [red] Price: $109.99 |
| 14 | 146-5995 | MAINFRAME ASM - 60 Price: $2,253.99 |
| 15 | 142-6400 | SPACER- ROLLER Price: $11.99 |
| 16 | 146-5134-03 | Tray-Battery Box Price: Call Us |
| 17 | 142-6675 | SPACER- ROLLER Price: $7.49 |
| 18 | 3230-2 | BOLT-CARR Price: $1.29 |
| 19 | 1-633651 | BOLT-HOLDDOWN Price: $7.29 |
| 20 | 3231-22 | SCREW-CARR Price: $3.09 |
| 21 | 3231-27 | SCREW-CARR Price: $4.09 |
| 22 | 3231-9 | SCREW-CARR Price: $2.09 |
| 23 | 3232-2 | BOLT-CARR Price: $4.29 |
| 24 | 146-0896-03 | BRACKET-BATTERY HOLD DOWN Price: $19.99 |
| 25 | 32128-37 | NUT-HF Price: $3.89 |
| 27 | 1-811010 | PLUG Price: $4.89 |
| 29 | 116-8253 | DECAL-DRIVE RELEASE Price: $2.69 |
| 30 | 112-9028 | DECAL-COVER, MISSING Price: $20.99 |
| 31 | 139-2401 | KNOB Price: $3.39 |
