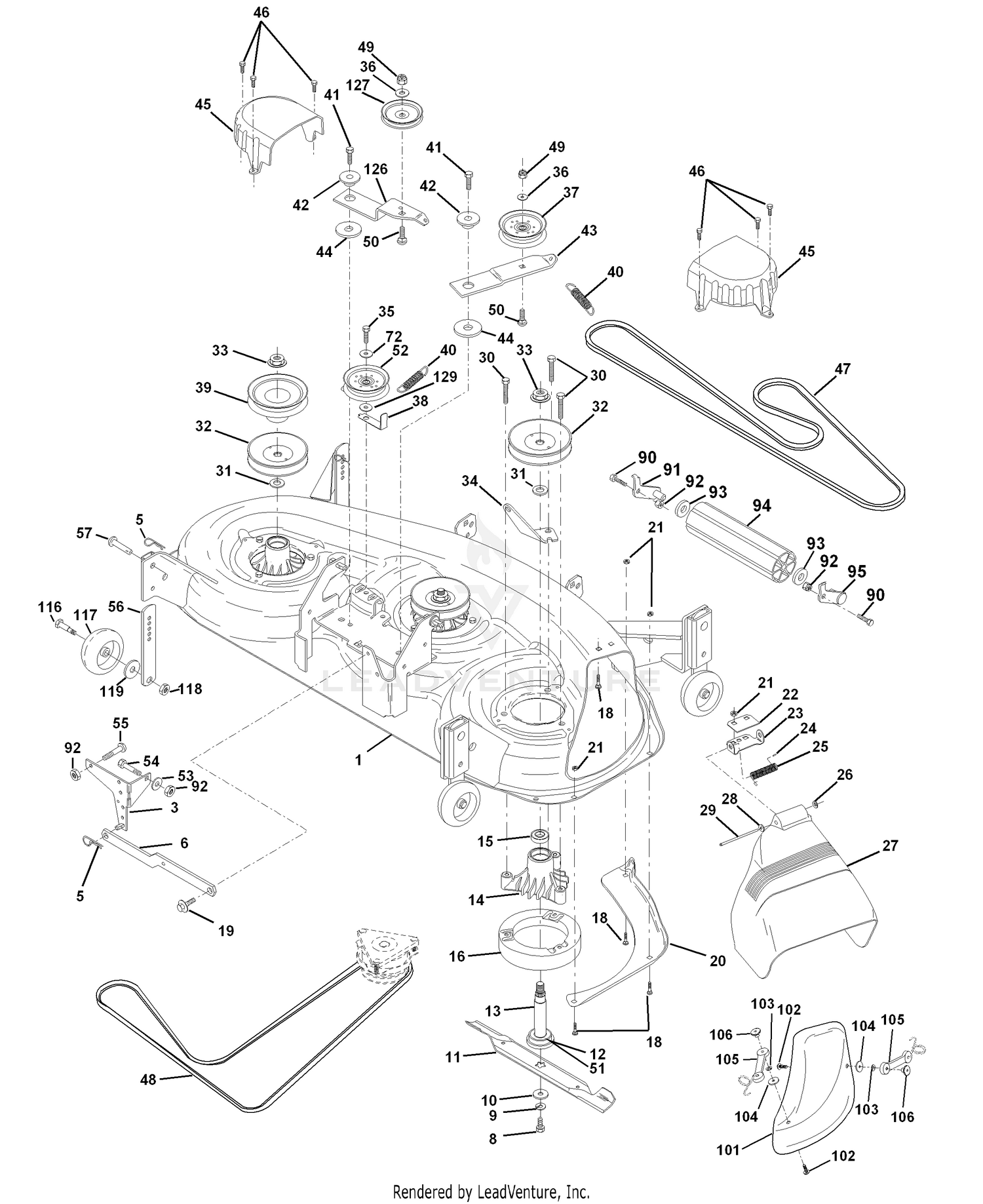

| Ref | Part Number | Description |
|---|
| 1 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 1 |
532176034 |
DECK.SVC.W/ADJ.GWB.46".BLACK This part replaces 532161031. Price: $279.99 |
| 2 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 3 |
2412-133 |
CLAMP-R Price: $3.19 |
| 3 |
532138457 |
BRACKET SWAY BAR Price: $9.99 |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 5 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
86-7040 |
ROD-PROP, SEAT Price: $29.51 |
| 7 |
218-461 |
NUT-HH Price: $2.50 |
| 8 |
237-7 |
O-RING Price: $8.82 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 11 |
532152443 |
MULCH BLADE 46" Price: $17.99 |
| 12 |
43-8610 |
GUIDE Price: $23.35 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
237-30 |
O-RING Price: $2.50 |
| 14 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 14 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
62-3010-01 |
BRACKET-RH This part replaces 62-3010. Price: $11.57 |
| 16 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 17 |
62-3020-01 |
BRACKET-LH This part replaces 62-3020. Price: $12.72 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 18 |
70-1890-03 |
GUARD-FLYWHEEL This part replaces 70-1890. Price: $29.13 |
| 19 |
3234-6 |
SCREW-HHF Price: $3.19 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531154201 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532145055. Price: $6.99 |
| 20 |
67-8190-01 |
BRACKET-SUPPORT, ENGINE This part replaces 67-8190. Price: $50.66 |
| 21 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION This part replaces 532149287. Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532166883 |
DEFLECTOR.CLIPPING.46" This part replaces 532157788. Price: $38.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
532144945 |
ANCHOR, SPRING DECK 46" Price: $4.99 |
| 35 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 38 |
532156086 |
KEEPER.BELT.IDLER Price: $5.99 |
| 39 |
532144917 |
PULLEY.DRIVEN.DECK.46" Price: $27.99 |
| 40 |
532137273 |
SPRING.SEC.44"VEN Price: $6.99 |
| 41 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
532144949 |
ARM IDLER DECK 46" Price: $4.99 |
| 44 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 45 |
532145059 |
COVER MANDREL 46 Price: $14.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 48 |
532139573 |
V-BELT.PRMRY 46/50 VENT.BLK BK Price: $44.99 |
| 49 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
532153390 |
WASHER FELT Price: $3.99 |
| 52 |
532173901 |
PULLEY.IDLER.FLAT.46".PRIMARY This part replaces 532156493. Price: $27.99 |
| 53 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 54 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 55 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL This part replaces 532162648. Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 72 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 90 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: $3.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532145579 |
COVER.MULCH.46"3-BLADE.(2 2) Price: $21.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 104 |
819061216 |
WASHER Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 126 |
532144948 |
ARM IDLER PRIM 46 Price: $4.99 |
| 127 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
