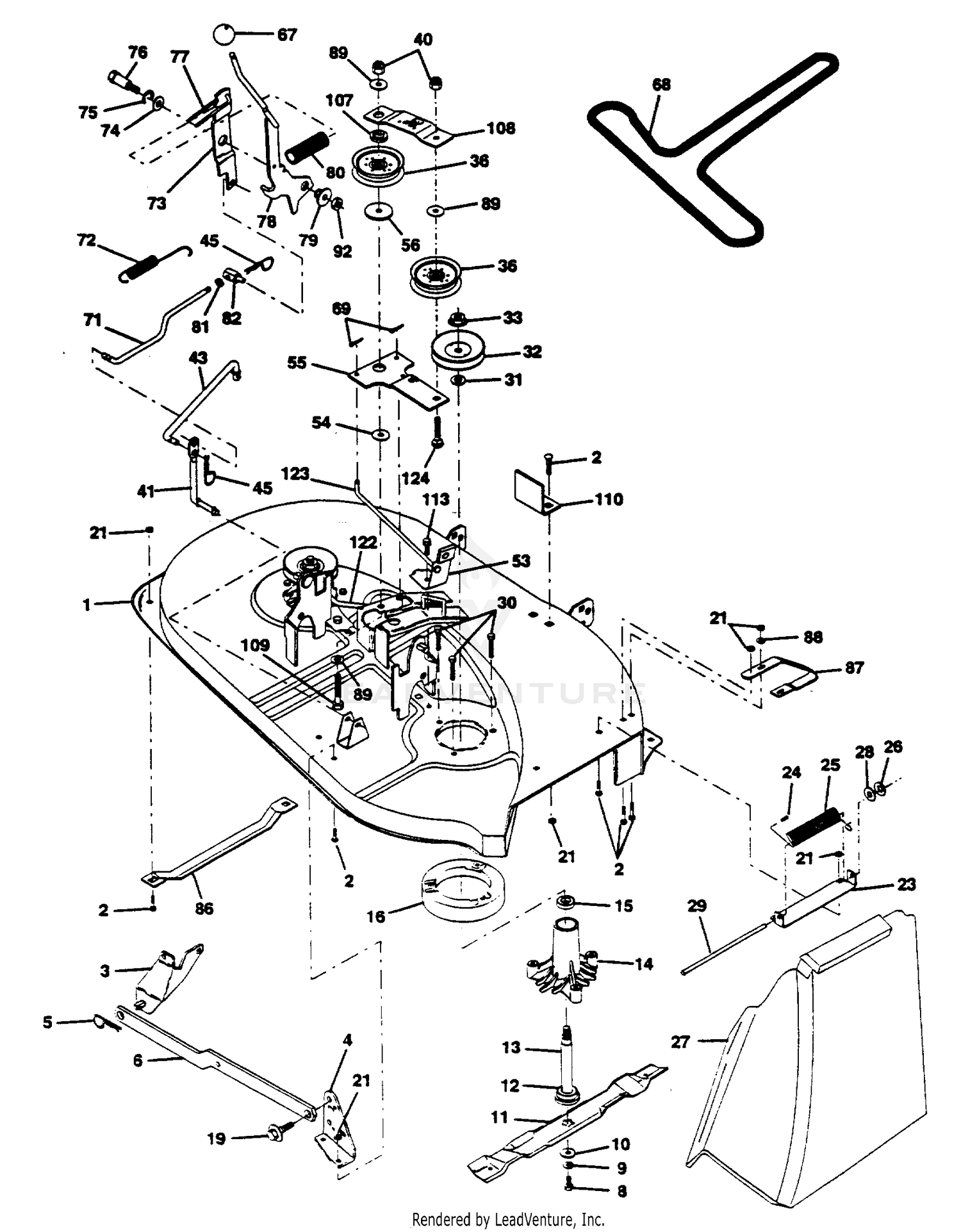

| Ref | Part Number | Description |
|---|
| 1 |
106-0385 |
SEAL KIT Price: $230.04 |
| 1 |
142829 |
SUB= 145775 Price: Call Us |
| 2 |
69-3770 |
SHIM Price: $51.82 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
107-4351 |
SPRING-RELIEF, CHARGE Price: $10.09 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
69-3800 |
VALVE Price: $39.31 |
| 5 |
107-4380 |
CPRV PLUG ASM Price: $52.04 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
69-3130 |
PLUG This part replaces 107-4352. Price: $62.97 |
| 7 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 8 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
69-3960 |
SCREW This part replaces 107-4353. Price: $5.90 |
| 11 |
75-0460 |
BEARING-BALL Price: $175.71 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
94-2878 |
PIN Price: $9.76 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
69-3450 |
PIN Price: $3.33 |
| 18 |
69-3540 |
COVER-GEROTOR Price: $538.45 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
92-1352 |
PLUG Price: $30.00 |
| 20 |
107-4354 |
COVER-FRONT Price: $1,302.74 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
76-4590 |
SCREW Price: $5.43 |
| 22 |
69-3650 |
PISTON-SERVO Price: $852.55 |
| 23 |
107-4355 |
SWASHPLATE ASM Price: $1,223.29 |
| 23 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
AU193488A1 |
JOURNAL This part replaces 107-4356. Price: $57.15 |
| 25 |
107-4357 |
SHAFT-PUMP Price: $1,045.25 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
93-9320 |
PLATE-VALVE, LH This part replaces 107-4358. Price: $466.03 |
| 27 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 27 |
69-3390 |
GEROTOR ASM Price: $542.68 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
69-3550 |
PIN Price: $3.66 |
| 29 |
106735X |
ROD-HINGE T Price: Call Us |
| 29 |
69-3430 |
KEY-WOODRUFF Price: $4.89 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
94-9414 |
ADAPTER-SUCTION Price: $211.04 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
94-9413 |
SCREW Price: $18.13 |
| 32 |
129206 |
SUB= 153532 Price: Call Us |
| 32 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 33 |
137226 |
NLA Price: Call Us |
| 33 |
69-4040 |
STOP Price: $162.69 |
| 34 |
69-3640 |
COVER-SERVO Price: $389.32 |
| 35 |
107-4359 |
GUIDE-SPRING Price: $44.64 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
69-3680 |
STOP Price: $65.27 |
| 37 |
69-3670 |
SPRING-SERVO Price: $194.02 |
| 38 |
107-4360 |
SCREW Price: $53.10 |
| 39 |
69-3580 |
GUIDE-SPRING Price: $142.64 |
| 40 |
69-3590 |
RING-RETAINING Price: $4.15 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 41 |
69-3600 |
NUT-HEX Price: $1.89 |
| 42 |
107-4361 |
NUT Price: $4.00 |
| 43 |
107-4362 |
SCREW Price: $10.69 |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 44 |
69-3140 |
BRACKET Price: $30.30 |
| 45 |
107-4363 |
GASKET-COVER Price: $33.08 |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 47 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 48 |
107-4364 |
BYPASS VALVE ASM Price: $166.69 |
| 49 |
69-3730 |
RELIEF VALVE KIT Price: $226.03 |
| 50 |
104-0168 |
BALL SWITCH KIT This part replaces 95-7034. Price: $87.16 |
| 51 |
107-4365 |
COVER-MOUNTING Price: $326.25 |
| 52 |
107-4366 |
GASKET-PLATE, MOUNTING Price: $25.49 |
| 53 |
107-4367 |
PLATE-MOUNTING Price: $366.98 |
| 53 |
130840 |
BRAKE ASM Price: Call Us |
| 54 |
107-4368 |
SCREW Price: $5.82 |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
107-4369 |
GASKET-COVER, MOUNTING Price: $30.03 |
| 55 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 56 |
69-3860 |
SCREW Price: $3.87 |
| 57 |
107-4370 |
PLUG-EXPANSION Price: $6.00 |
| 58 |
107-4371 |
SPACER-SPRING Price: $18.92 |
| 59 |
69-3860 |
SCREW Price: $3.87 |
| 60 |
107-4372 |
NUT-LOCK Price: $1.51 |
| 61 |
69-3880 |
SPRING-RETURN, NEUTRAL Price: $64.49 |
| 62 |
107-4373 |
HANDLE-CONTROL Price: $78.34 |
| 63 |
69-3890 |
BRACKET-RETURN, NEUTRAL Price: $60.82 |
| 64 |
107-4374 |
WASHER-LOCK Price: $0.81 |
| 65 |
107-4375 |
SPOOL BRACKET ASM Price: $857.43 |
| 66 |
69-3530 |
ORIFICE PLUG ASM Price: $137.05 |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 67 |
107-4376 |
SLEEVE ASM Price: $874.40 |
| 68 |
126520X |
V BELT Price: Call Us |
| 68 |
75-0160 |
PLUG-PIPE Price: $4.39 |
| 69 |
69-3060 |
SCREW Price: $8.34 |
| 69 |
73020312 |
PIN, COTTER Price: Call Us |
| 70 |
69-3410 |
ADAPTER-A, FLANGE Price: $516.81 |
| 71 |
107-4377 |
SEAL-A, PAD Price: $51.66 |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
107-4378 |
COVER Price: $94.82 |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 73 |
69-3400 |
SCREW Price: $1.29 |
| 74 |
107-4379 |
CYLINDER BLOCK KIT Price: $2,151.85 |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 75 |
69-3920 |
PISTON RING AND O-RING KIT Price: $181.90 |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140334 |
SUB= 154810 Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
128759 |
SUB= 918128759 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 86 |
7631J |
RUNNER-LH M Price: Call Us |
| 87 |
128772 |
RUNNER RH Price: Call Us |
| 88 |
19111216 |
WASHER M Price: Call Us |
| 89 |
19131612 |
WASHER GT Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 107 |
133502 |
RETAINER SPACER Price: Call Us |
| 108 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 109 |
74760640 |
BOLT Price: Call Us |
| 110 |
142587 |
UPSTOP DECK FT 38 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 122 |
131289 |
BRAKE ROD LH Price: Call Us |
| 123 |
131288 |
BRAKE ROD RH Price: Call Us |
| 124 |
72110614 |
BOLT Price: Call Us |
| 145758 |
DECK.SERV.38.HLMC |
Price: Call Us 145758 |
