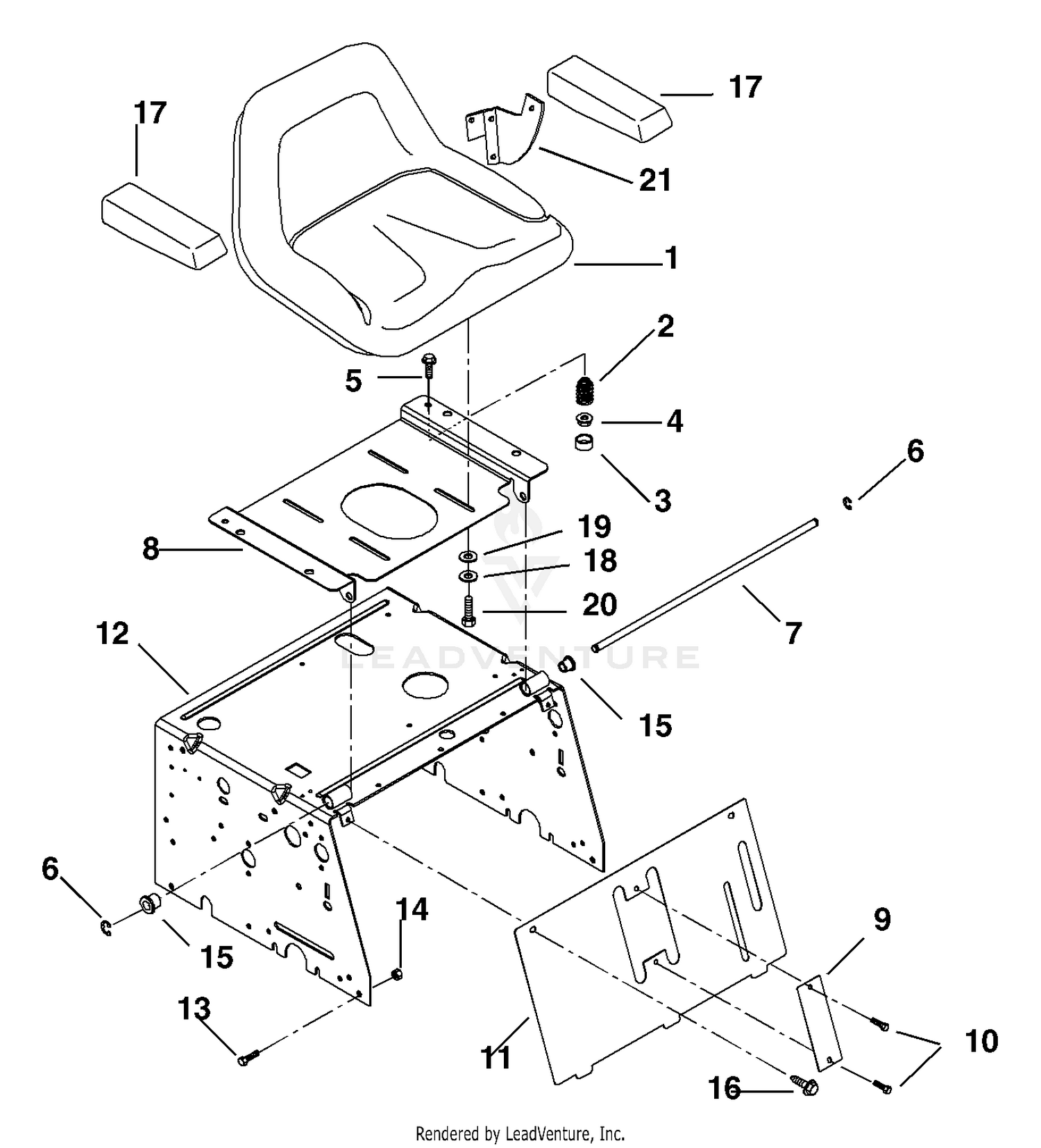

| Ref | Part Number | Description |
|---|
| 1 |
01546100 |
SEAT Price: $222.00 |
| 2 |
00571600 |
SG. COMP 2.9L X 2.02OD 200LB Price: $31.45 |
| 3 |
00571500 |
BOOT, SEAT SPRING Price: $11.95 |
| 4 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC This part replaces 06534800. Price: $0.95 |
| 5 |
07028500 |
BLT-SERHFWH .38-16X.75 YWZC Price: $1.95 |
| 6 |
05710200 |
RG-RTNG-EXT .500X.042 (E) Price: $0.95 |
| 7 |
01168900 |
FRONT AXLE Price: $50.95 |
| 8 |
01554451 |
SEAT PLATE Price: $54.00 |
| 9 |
01555453 |
PLATE Price: $17.25 |
| 10 |
05901705 |
BLT-HEX .25-20X.50 G5 ZCC This part replaces 05947900. Price: $0.45 |
| 11 |
01556253 |
PANEL, WLDM'T Price: $72.95 |
| 12 |
01553653 |
SUPPORT, SEAT WLDM'T Price: $64.95 |
| 13 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 14 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 15 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY This part replaces 034738. Price: $2.45 |
| 16 |
07400127 |
SCR,TAP .312-18X.75 HWH TR ZCC This part replaces 07414400. Price: $1.45 |
| 17 |
01552900 |
ARM REST Price: $66.00 |
| 18 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 19 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 20 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 21 |
01553100 |
BRACKET, L.H. ARMREST Price: $21.95 |
| 01553000 |
BRACKET, |
R.H. ARMREST Price: $21.95 01553000 |
