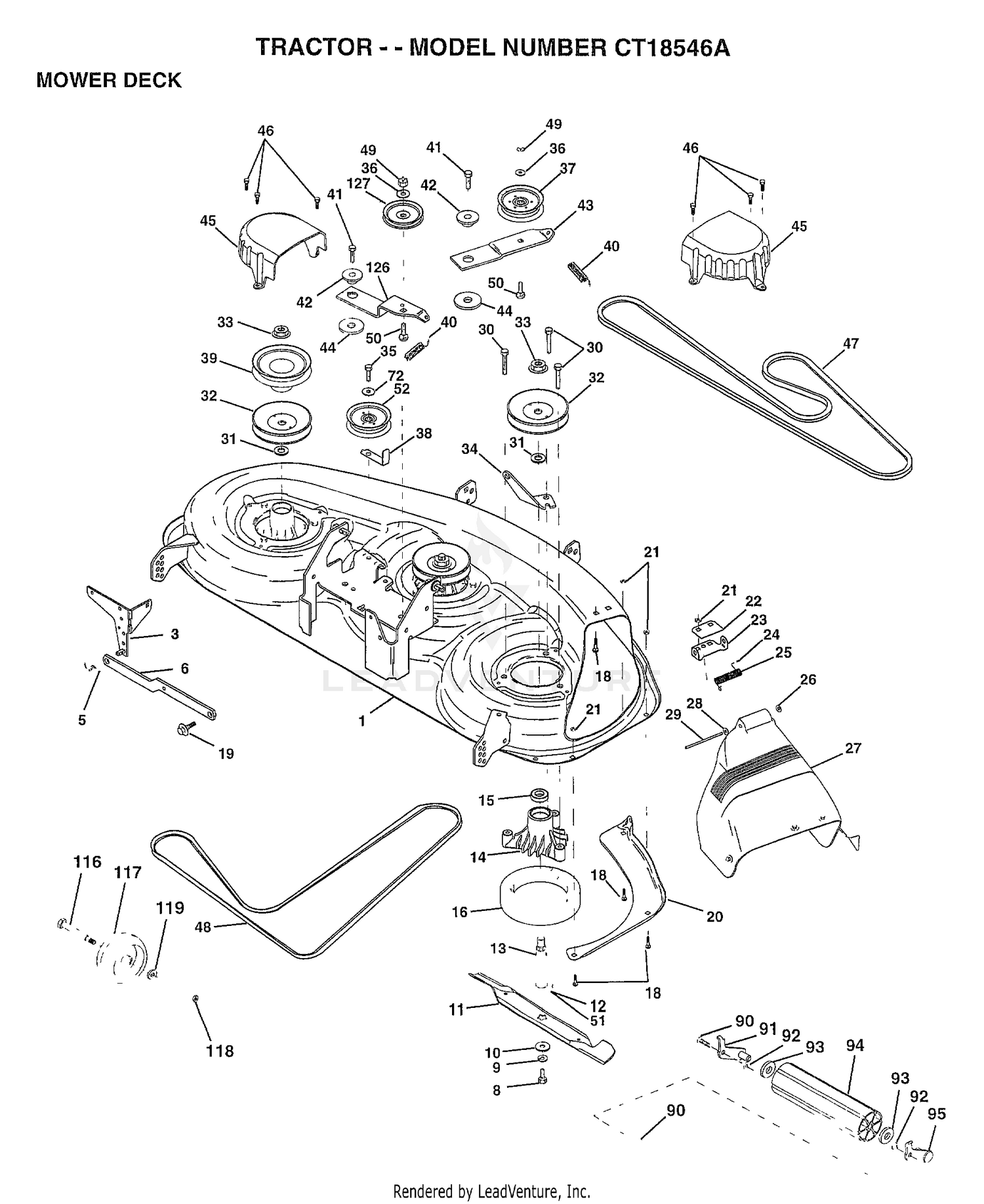

| Ref | Part Number | Description |
|---|
| 1 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 1 |
155948 |
DECK ASM. MOWER 46" Price: Call Us |
| 2 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 3 |
138457 |
BRKT.ASM.SW.44/50 Price: Call Us |
| 3 |
21-0151 |
LH BALL JOINT ASM Price: $126.28 |
| 4 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 7 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 8 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
3220-5 |
NUT-JAM Price: $0.65 |
| 11 |
157353 |
SUB= 159705 Price: Call Us |
| 11 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
5-1226 |
WASHER Price: $3.90 |
| 13 |
137553 |
SHAFT.ASM.W/BRNG Price: Call Us |
| 13 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 14 |
137152 |
HOUSING.MAND.44.V Price: Call Us |
| 14 |
99-6935-03 |
REAR AXLE ASM Price: $972.14 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
75-4410-03 |
DISCONTINUED Price: Call Us |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
75-3130-03 |
ROD-TIE Price: $74.06 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 18 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
93-7000-03 |
SPINDLE-RH Price: $370.29 |
| 20 |
145055 |
BAFFFLE.VORTEX.46 Price: Call Us |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
1237137X |
SPRING, TORSION, DEFLECTOR Price: Call Us |
| 26 |
157788 |
SHIELD DEFLECTOR Price: Call Us |
| 27 |
145325 |
SUB= 157788 Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
144945 |
ANCHOR.SPRING.46 Price: Call Us |
| 35 |
17490628 |
SCREW LT Price: Call Us |
| 36 |
19131316 |
WASHER Price: Call Us |
| 37 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 39 |
144917 |
PULLEY.DRV.DCK.46 Price: Call Us |
| 41 |
17490620 |
SCREW Price: Call Us |
| 42 |
122052X |
SPACER RETAINER Price: Call Us |
| 43 |
144949 |
ARM.IDLER.DECK.46 Price: Call Us |
| 44 |
133943 |
HARDENED WASHER Price: Call Us |
| 45 |
145059 |
COVER.MANDREL.46 Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 47 |
144959 |
BELT-V.SEC.46.KEL Price: Call Us |
| 48 |
139573 |
BELT V PRIM 50 Price: Call Us |
| 49 |
73680600 |
SUB= 73690600 Price: Call Us |
| 50 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 51 |
153390 |
WASHER.FELT. Price: Call Us |
| 72 |
19131616 |
WASHER HYT Price: Call Us |
| 90 |
14160616 |
BOLT Price: Call Us |
| 91 |
132274 |
SUB= 532132274 Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 93 |
19171416 |
WASHER Price: Call Us |
| 94 |
132264 |
SUB= 532132264 Price: Call Us |
| 95 |
132273 |
SUB= 532132273 Price: Call Us |
| 116 |
146851 |
BOLT.SHOULDER Price: Call Us |
| 117 |
146850 |
WHEEL.GUAGE.MED. Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 126 |
144948 |
ARM.IDLER.PRIM.46 Price: Call Us |
| 127 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 143651 |
MANDREL |
SERV ASM Price: Call Us 143651 |
