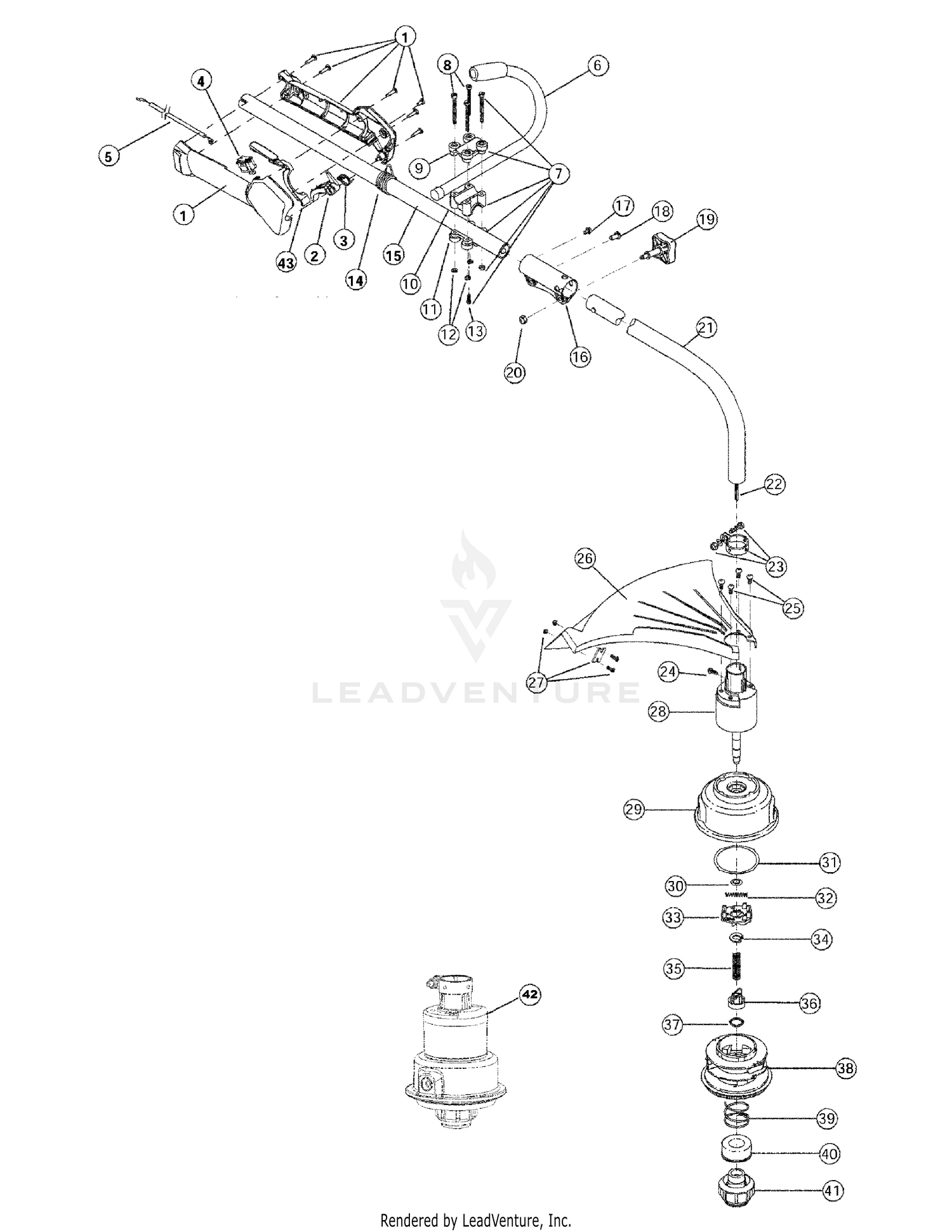

Boom And Trimmer Parts
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 753-04119 | Throttle Trigger Price: $6.56 |
| 3 | 791-182690 | Throttle Trigger Spring Price: $7.01 |
| 4 | 791-182405 | Switch Assembly Price: $9.29 |
| 5 | 746-04085A | Throttle Cable Price: $9.32 |
| 6 | 791-180687 | ASSEMBLY, J-HANDLE (BLACK) Not Available Price: |
| 8 | 791-181811 | Screw Price: $4.05 |
| 9 | 791-181812 | Upper Handle Clamp Price: $7.65 |
| 10 | 791-181813 | Middle Handle Clamp Price: $10.65 |
| 11 | 791-181814 | Lower Handle Clamp Price: $7.77 |
| 12 | 791-181815 | Nut Price: $3.76 |
| 13 | 791-145569 | Anti-Rotation Screw Price: $9.02 |
| 14 | 4301A | SHOULDER STRAP CLAMP Price: $3.06 |
| 14 | 791-610327 | Harness Clip Price: $28.62 |
| 15 | 753-04236 | Upper Drive Shaft Housing Assembly Price: $87.52 |
| 17 | 791-182057 | Screw Price: $3.93 |
| 18 | 791-181617 | Bolt Price: $4.59 |
| 20 | 791-181886 | NUT, ELASTIC LOCK Not Available Price: |
| 22 | 791-181852 | Lower Flexible Drive Shaft Price: $51.93 |
| 23 | 791-153597 | CLAMP ASSEMBLY-LOWER Not Available Price: |
| 24 | 791-145569 | Anti-Rotation Screw Price: $9.02 |
| 27 | 791-181823 | BLADE ASSEMBLY Not Available Price: |
| 28 | 791-181857 | BUSHING HO Not Available Price: |
| 30 | 791-181458 | Retaining Ring Price: $3.93 |
| 31 | 791-181561 | Thrust Washer Price: $3.86 |
| 32 | 791-181459 | SPRING, SPEED SPOOL S Not Available Price: |
| 33 | 753-04257 | Slider Price: $6.92 |
| 34 | 791-181532 | E-Clip Price: $3.86 |
| 35 | 791-181531 | SPRING, PLUNGER Not Available Price: |
| 36 | 791-181462 | PLUNGER, SPEED SPO Not Available Price: |
| 37 | 791-181463 | C-CLIP Not Available Price: |
| 39 | 791-181465B | Large Spring Price: $10.07 |
| 40 | 791-181467 | SEAL, SPEED SPOOL Not Available Price: |
| 42 | 791-181469B | SPEED SPOOL HEAD ASSEMBLY Not Available Price: |
| 43 | 791-00041 | THROTTLE LOCK OUT LEVER RED Not Available Price: |
