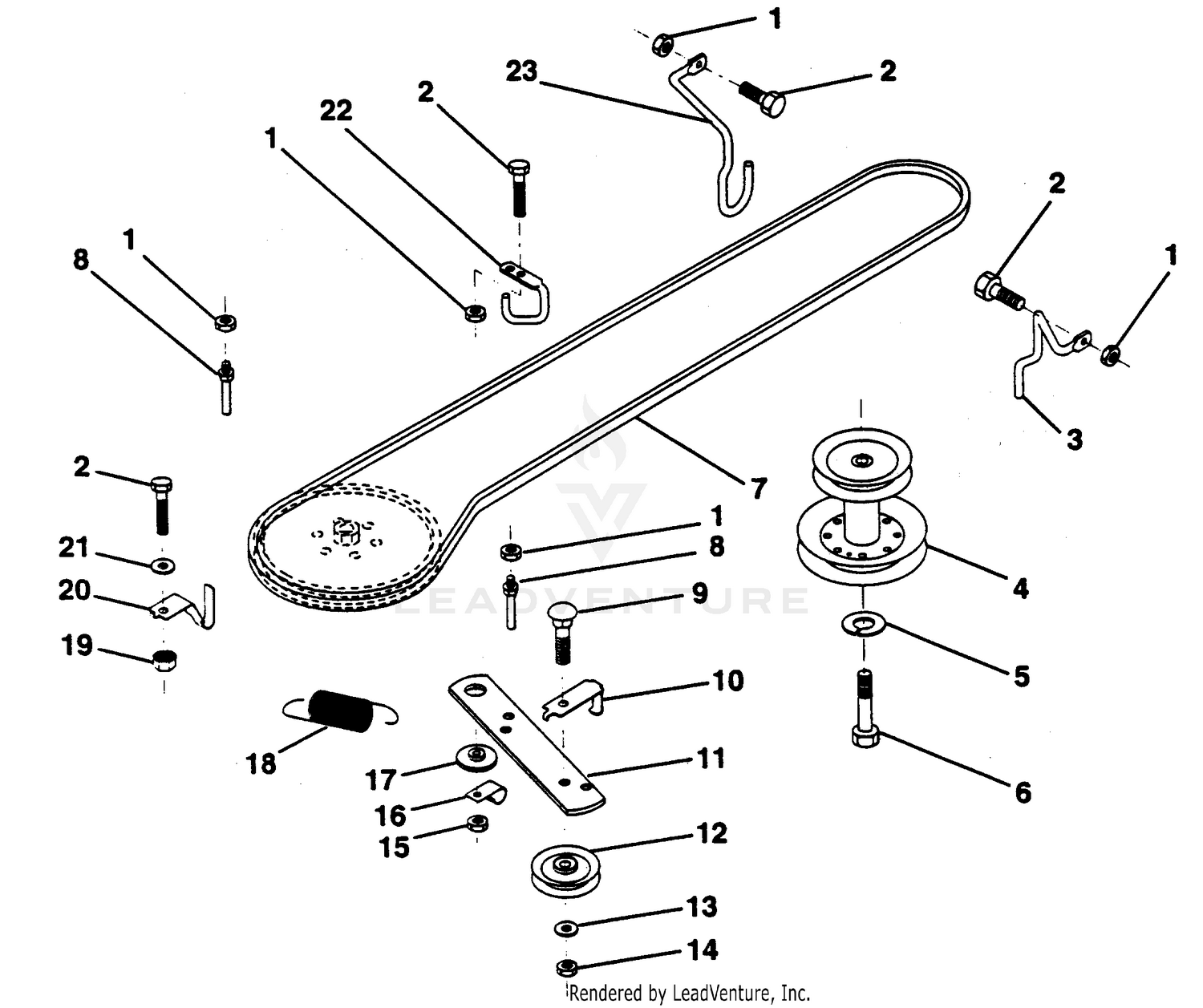

| Ref | Part Number | Description |
|---|
| 1 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 1 |
873800500 |
Locknut, Hex w/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 2 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 2 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 3 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 3 |
532141342 |
Keeper, Mower Drive, R. H. (AYP part number) Price: $4.99 |
| 4 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 4 |
532138029 |
Pulley, Engine (AYP part number) Price: $49.99 |
| 5 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 5 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 6 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 6 |
871170744 |
Bolt Hex 7/16-20 Gr. 5 (AYP part number) Price: $2.99 |
| 7 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 7 |
532124525 |
Traction, V-Belt Drive (AYP part number) Price: $34.99 |
| 8 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 8 |
532164173 |
KEEPER.BELT.ENGINE This part replaces 532123405. Price: $4.99 |
| 9 |
872140612 |
Bolt, Carr. 3/8-16 UNC x 1-1/2 (AYP part number) Price: $2.99 |
| 10 |
532123396 |
Keeper, Belt Ground Drive Idler (AYP part number) Price: $4.99 |
| 11 |
532140911 |
Arm, Ground Drive Clutch (AYP part number) Price: $4.35 |
| 12 |
532123674 |
Idler, Flat (AYP part number) Price: $17.99 |
| 13 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 14 |
873680600 |
LOCKNUT This part replaces 873930600. Price: $1.99 |
| 15 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 16 |
532126471 |
Clip, Insulated (AYP part number) Price: $2.99 |
| 17 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 18 |
532131459 |
Spring Extension (AYP part number) Price: $4.99 |
| 19 |
873510500 |
Nut, Keps 5/16-18 UNC (AYP part number) Price: $5.99 |
| 20 |
532139919 |
Keeper, T/A Ground Drive Belt (AYP part number) Price: $2.99 |
| 21 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. (AYP part number) Price: $5.99 |
| 22 |
532123404 |
Keeper, Frame Ground Drive Belt (AYP part number) Price: $3.22 |
