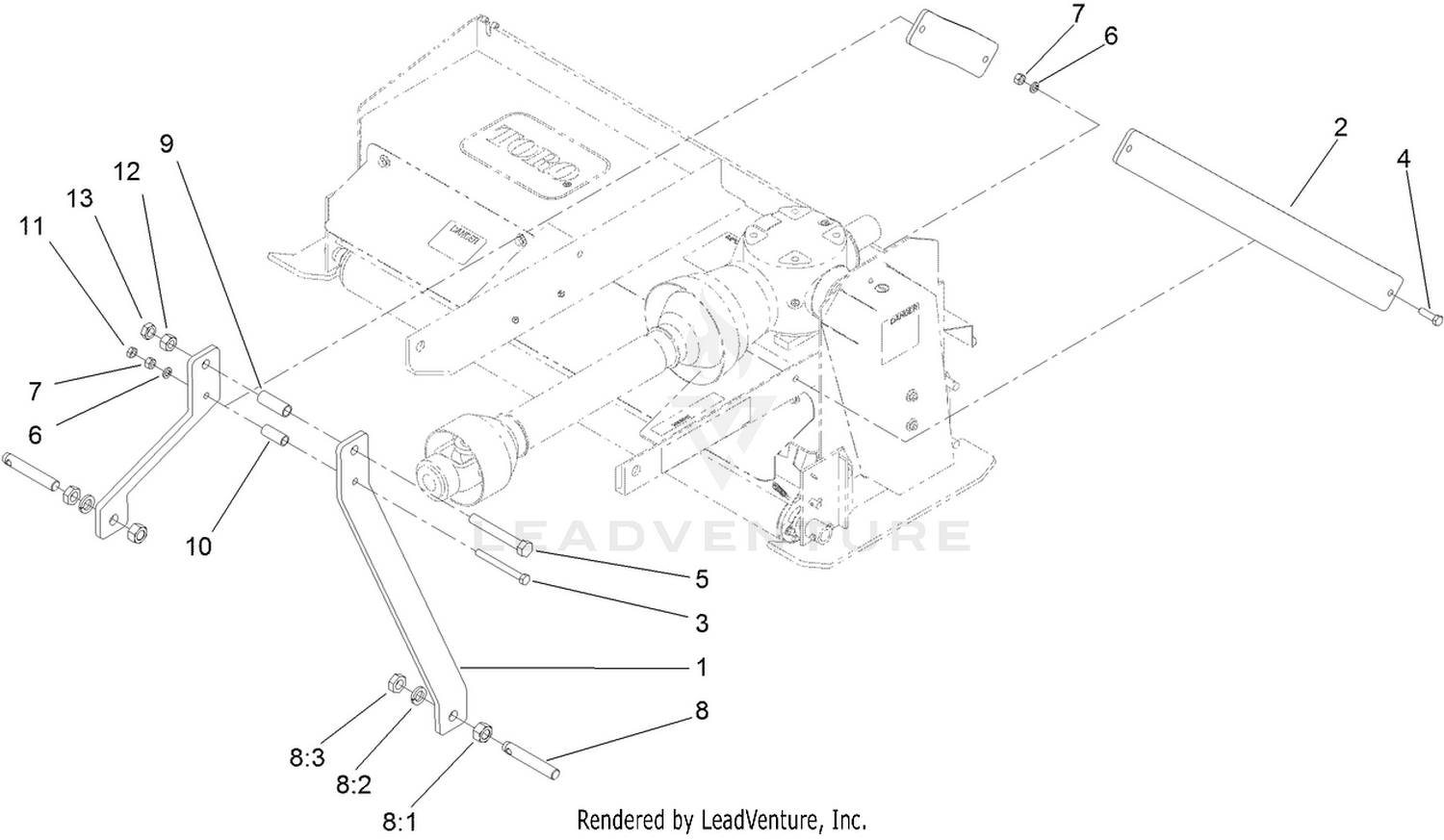

Mounting Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 83-004-0291 | ARM-MOUNT Price: $299.61 |
| 2 | 83-004-0302 | STABILIZER ARM Price: $223.04 |
| 3 | 325-19 | SCREW-HH Price: $2.57 |
| 4 | 325-6 | SCREW-HH Price: $1.42 |
| 5 | 328-12 | SCREW-HH Price: $9.77 |
| 6 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 7 | 3217-9 | NUT-HH Price: $0.37 |
| 8 | 01-252-0010 | LIFT ARM PIN ADJUSTMENT ASM Price: $20.22 |
| 9 | 83-004-0381 | SPACER-3 PT HITCH, TOP Price: $83.60 |
| 10 | 83-004-0391 | SPACER-3 PT HITCH, BOTTOM Price: $14.59 |
| 11 | 3218-5 | NUT-JAM Price: $0.27 |
| 12 | 3217-12 | NUT-HEX Price: $3.12 |
