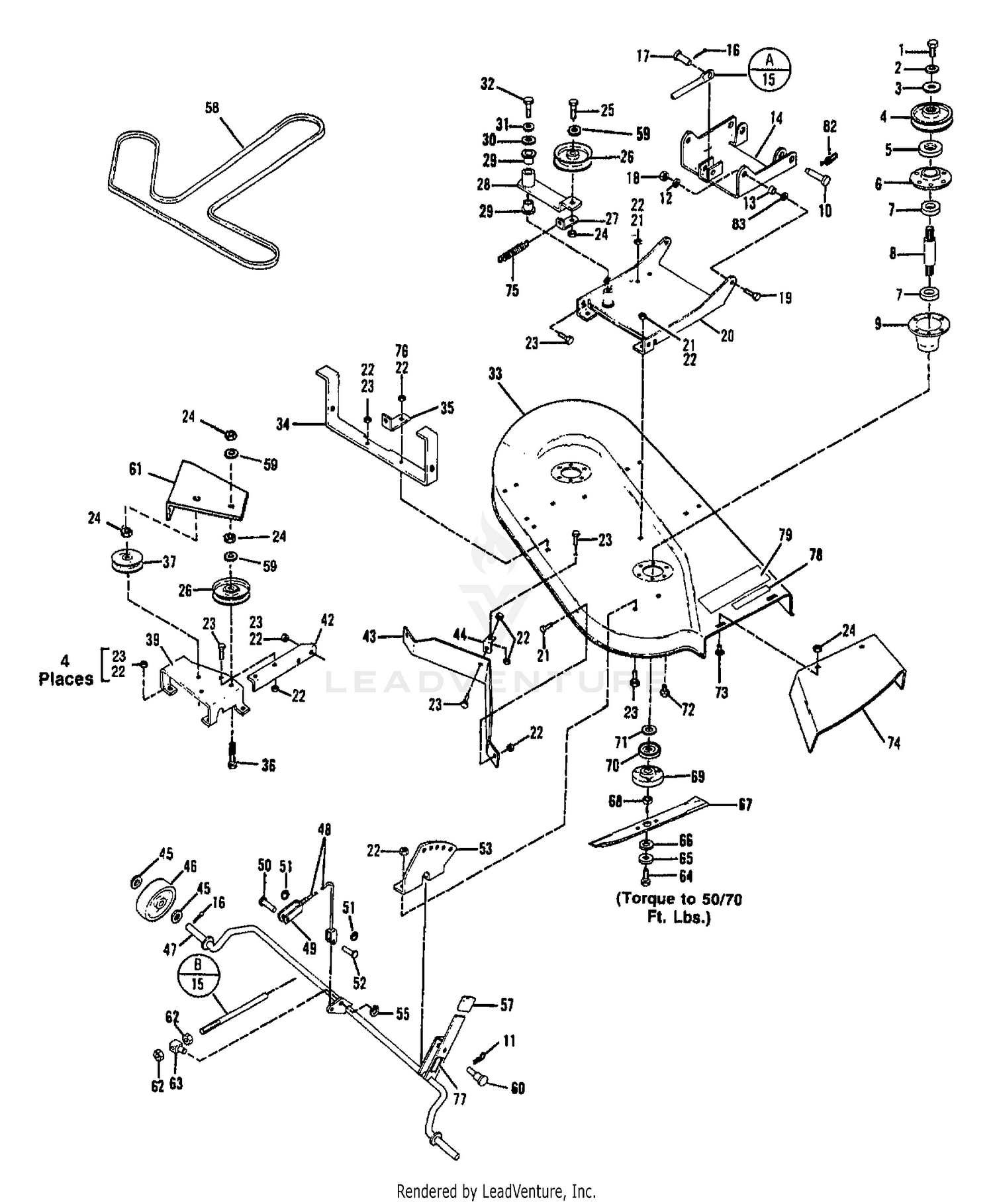

| Ref | Part Number | Description |
|---|
| 1 |
1747657 |
SCREW-HH 7/16-14X2.7 Not Available Price: |
| 1 |
1747658 |
SCR-HH 7/1 Not Available Price: |
| 3 |
736-0322 |
Flat Washer, .450 x 1.25 This part replaces 1736484. Price: $8.42 |
| 4 |
1747650 |
ASSM-DRIVE SHEAVE Price: Call Us |
| 4 |
1747651 |
ASSM-DRIVE SHEAVE Price: Call Us |
| 5 |
1747642 |
BEARING-UPPER SHIELD Price: Call Us |
| 6 |
1747644001 |
HOUSING-ARBOR TOP Price: Call Us |
| 7 |
1185574P |
Ball Bearing This part replaces 1185574. Price: $32.02 |
| 8 |
1754681 |
SHAFT-ARBOR 36 Not Available This part replaces 1747648. Price: |
| 9 |
1747645001 |
HOUSING-ARBOR BOTTOM Price: Call Us |
| 10 |
711-1626 |
CLEVIS PIN .625 x 2.313 Not Available This part replaces 1752308. Price: |
| 11 |
1723478 |
HITCH PIN Not Available Price: |
| 13 |
1730681 |
SPACER Not Available Price: |
| 14 |
1743720001 |
ASSM-MOWER SUPT Price: Call Us |
| 15 |
1747630 |
ROD-ADJUSTOR Price: Call Us |
| 17 |
1722409 |
CLEVIS PIN .5X1.75 ZP Not Available Price: |
| 18 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 20 |
1747610001 |
PLATE-MOWER SUPPORT Price: Call Us |
| 24 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 26 |
1756151 |
BACKSIDE PULLEY IDLER Not Available Price: |
| 27 |
1747616 |
GUIDE-BELT Price: Call Us |
| 28 |
1747613 |
ASSM-IDLER ARM Price: Call Us |
| 29 |
1722364 |
FLANGE BEARING NYLINER Not Available Price: |
| 30 |
736-0133 |
Washer, Flat, .411 x 1.25 x .100 This part replaces 1893445. Price: $4.67 |
| 33 |
1757477 |
ASSM-MOWER BASE Price: Call Us |
| 34 |
1752755001 |
STOP-BASE Price: Call Us |
| 35 |
1747623 |
SPRING-ANCHOR Price: Call Us |
| 37 |
1757866 |
PULLEY-IDLER Not Available Price: |
| 39 |
1747948001 |
SUPT-IDLER/AXLE Price: Call Us |
| 42 |
1747949001 |
BRKT-SUPPORT Price: Call Us |
| 43 |
1747631001 |
BAFFLE Not Available Price: |
| 44 |
1747633 |
BRACKET-MOWER Not Available Price: |
| 45 |
736-0188 |
Washer-Fl-.760Id X This part replaces 1185830. Price: $3.75 |
| 46 |
734-04005 |
CASTER WHEEL Not Available This part replaces 1743891. Price: |
| 47 |
1747625001 |
ASSM-SUPT WHEEL SHAFT Price: Call Us |
| 48 |
1747321P |
MOWER DECK CABLE ASSEMBLY Not Available This part replaces 1747321. Price: |
| 49 |
1916253001 |
ASSEMBLY-YOKE BLACK Not Available This part replaces 1747165. Price: |
| 50 |
1724632 |
CLEVIS PIN Not Available Price: |
| 51 |
1751908 |
RING COTTER Not Available Price: |
| 52 |
1112587 |
PIN-CLEVIS .375 X .937 ZP Price: $4.29 |
| 53 |
1747620001 |
QUADRANT Not Available Price: |
| 55 |
1185649 |
RETAINING RING Not Available Price: |
| 57 |
1744029 |
GRIP-HANDLE Price: Call Us |
| 58 |
1754702 |
BELT Price: $121.70 |
| 60 |
1751144 |
PIN Price: Call Us |
| 61 |
1748614001 |
GUARD-BELT Price: Call Us |
| 63 |
1743728 |
BLOCK-PIVOT Price: Call Us |
| 64 |
1765196 |
Screw, 7/16-14 x 1 This part replaces 1747656. Price: $3.71 |
| 65 |
1747637 |
WASHER-LK CONICAL .49 ID Price: Call Us |
| 66 |
1747638 |
WASHER-SPLINED Price: Call Us |
| 67 |
1772335 |
BLADE-MOWER This part replaces 1747640. Price: $42.18 |
| 68 |
1748409 |
COLLAR-ARB Not Available Price: |
| 69 |
1747639 |
ADAPTER-BLADE Price: Call Us |
| 70 |
1747641 |
SHIELD-GRA Not Available Price: |
| 71 |
1747643 |
SHIM WASHER 1.39X. Not Available Price: |
| 72 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1724491. Price: $3.34 |
| 73 |
1739656 |
SCR-CARR 3 Not Available Price: |
| 74 |
1747635001 |
DEFLECTOR- Not Available Price: |
| 75 |
1756595 |
SPRING-EXTENSION Price: $16.27 |
| 77 |
1756884 |
DECAL-HEIGHT ADJUSTOR Price: Call Us |
| 78 |
1744491 |
DECAL CUTTING LIN Not Available Price: |
| 79 |
777S30503 |
LABEL-DANGER CHUTE This part replaces 1750715. Price: $10.32 |
| 82 |
714-3020 |
Pin-Internal Cotte This part replaces 1751909. Price: $3.90 |
