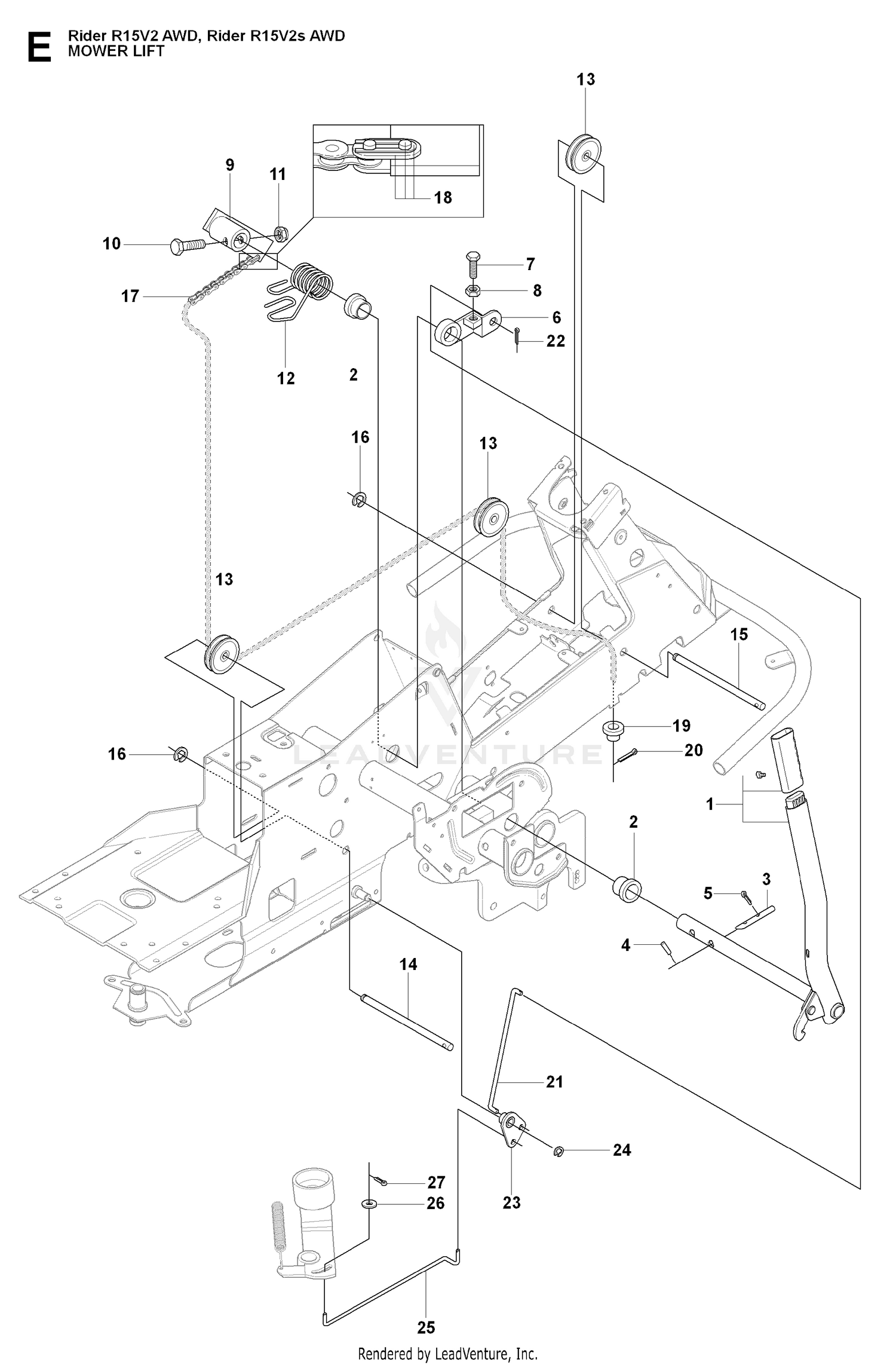

MOWER LIFT / DECK LIFT
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 105-0131 | STRAINER-TANK, OIL Price: $178.94 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 121-5587 | TANK-HYDRAULIC Price: $1,551.43 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 108-1605 | BUMPER-RECESS Price: $10.02 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 107-4543 | CLAMP Price: $13.47 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 125-1527 | HOSE-SUCTION Price: $64.74 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 117-0193 | CAP-HYDRAULIC, VENTED BREATHER Price: $111.66 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 8 | 94-5780 | SCREW-HWH Price: $7.49 |
| 9 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 9 | 506905401 | Lever Price: $47.37 |
| 10 | 322-6 | SCREW-HH Price: $0.45 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 12 | 61-2790 | FILTER-SCREEN Price: $49.91 |
| 13 | 127-2476 | TUBE-ASM. Price: $104.45 |
| 14 | 340-98 | FITTING-ELBOW, 90 DEG Price: $31.91 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 105-3921 | FITTING-PLUG Price: $28.11 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 506905901 | BUSHING Price: $20.99 |
| 20 | 721618701 | COTTER PIN Price: $3.99 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 721618301 | Split Pin Price: $1.99 |
