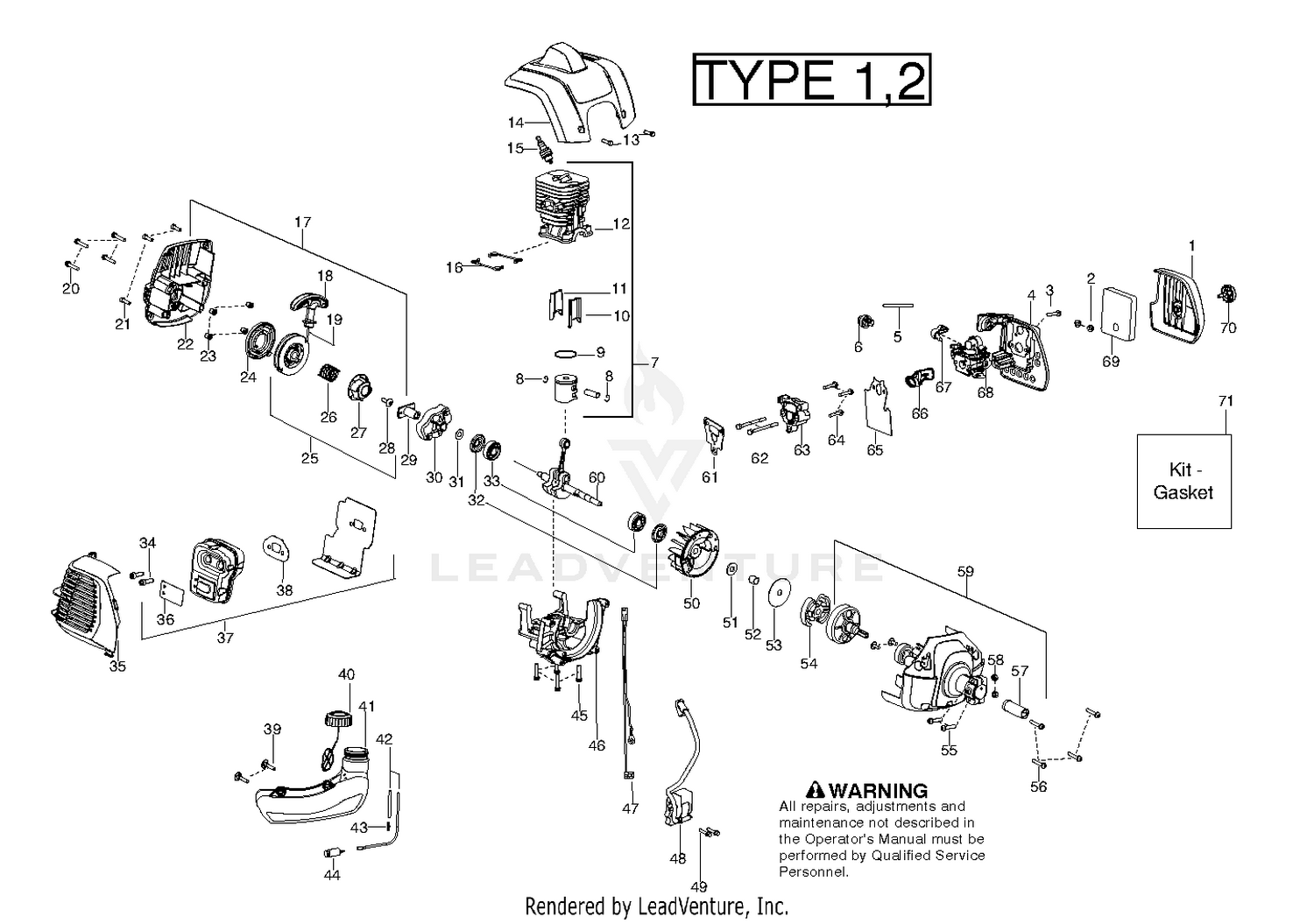

ENGINE
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 545177001 | FITLER COVER Price: $1.99 |
| 2 | 530016101 | NUT Price: $1.99 |
| 3 | 530016301 | SCREW Price: $1.99 |
| 4 | 545176901 | BASE AIRBOX BLACK Price: $2.99 |
| 6 | 530047721 | AIR PURGE Price: $3.99 |
| 8 | 545194801 | RETAINER PISTON PIN Price: $1.99 |
| 9 | 545194601 | PISTON RING Price: $2.99 |
| 010 | 98-9596 | JOINT-EYE Price: $18.69 |
| 10 | 545194901 | INSERT Price: $1.99 |
| 11 | 545195001 | INSERT Price: $1.99 |
| 12 | 545181801 | CYLINDER Price: $12.99 |
| 13 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $1.49 |
| 14 | 545156401 | CYLINDER COVER Price: $5.99 |
| 15 | 952030249 | PLUG-SPARK (RCJ-6Y) Price: Call Us |
| 16 | 545008044 | GASKET KIT 33CC Price: $6.99 |
| 18 | 545208401 | STARTER HANDLE Price: $4.99 |
| 19 | 545029901 | KIT ROPE Price: $9.99 |
| 020 | 98-9643 | INJECTION PUMP ASM Price: $2,551.99 |
| 20 | 530015897 | B0LT, C/SHAFT 36/41 Price: $1.99 |
| 21 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $1.49 |
| 22 | 545190601 | STARTER HOUSING Price: $7.99 |
| 23 | 545185301 | SPACER Price: $1.99 |
| 24 | 545008013 | SPRING STARTER Price: $3.49 |
| 26 | 545188301 | SPRING Price: $2.99 |
| 27 | 545188001 | STARTER PAWL Price: $2.99 |
| 28 | 545112801 | SCREW Price: $1.99 |
| 29 | 545188201 | SLEEVE COUPLING Price: $1.99 |
| 030 | 98-9456 | SHIM-INJECTION (0.20MM) Price: $7.29 |
| 030 | 98-9457 | SHIM-INJECTION (0.25MM) Price: $8.40 |
| 30 | 545188701 | STARTER CUP ASSY Price: $3.99 |
| 31 | 530015828 | WASHER FLAT Price: $1.99 |
| 32 | 545008044 | GASKET KIT 33CC Price: $6.99 |
| 33 | 545013401 | BEARING RADIAL BALL (6201) Price: $6.99 |
| 34 | 530058982 | BOLT MUFFLER Price: $1.99 |
| 35 | 545156301 | MUFFLER COVER Price: $2.99 |
| 36 | 545224001 | SPARK ARRESTER This part replaces 545008070. Price: $2.99 |
| 38 | 545008044 | GASKET KIT 33CC Price: $6.99 |
| 39 | 530016445 | SCREW FUEL TANK RETAINER Price: $1.99 |
| 040 | 98-9458 | SHIM-INJECTION (0.30MM) Price: $12.10 |
| 40 | 530057973 | Assy-Fuel Cap This part replaces 545215901. Price: $7.99 |
| 42 | 530069599 | KIT-LINE(FUEL) Price: $4.69 |
| 43 | 530023877 | FUEL LINE FITTING Price: $1.99 |
| 44 | 530095646 | FUEL PICK-UP ASSY Price: $2.69 |
| 45 | 530015897 | B0LT, C/SHAFT 36/41 Price: $1.99 |
| 46 | 545181901 | CRANKCASE Price: $12.99 |
| 47 | 525387801 | Price: $3.99 |
| 48 | 545189701 | IGNITION MODULE Price: $22.99 |
| 49 | 530016357 | SCREW Price: $1.99 |
| 050 | 98-9361 | BOLT-HSH Price: $0.76 |
| 50 | 545120401 | FLYWHEEL ASSY Price: $9.99 |
| 51 | 530016463 | WASHER CLUTCH Price: $1.99 |
| 52 | 530057852 | SPACER FLYWHEEL Price: $2.99 |
| 53 | 530094189 | WASHER-CLUTCH Price: $2.99 |
| 54 | 530055122 | Assy-Clutch This part replaces 545008038. Price: $8.99 |
| 55 | 530015774 | SCREW-10-24 X 1" (UNC) Price: $1.99 |
| 56 | 530015897 | B0LT, C/SHAFT 36/41 Price: $1.99 |
| 57 | 545186401 | GUIDE CLUTCH DRUM/FLEXSHAFT Price: $2.99 |
| 58 | 530015768 | LOCKNUT-HEX 10-24 Price: $1.99 |
| 060 | 98-9438 | STUD Price: $1.33 |
| 60 | 545194001 | CRANKSHAFT This part replaces 545008047. Price: $33.99 |
| 61 | 545008044 | GASKET KIT 33CC Price: $6.99 |
| 62 | 530016418 | BOLT Price: $1.99 |
| 63 | 575391501 | ADAPTER, CARBURETOR Price: $6.99 |
| 64 | 530016441 | SCREW Price: $1.99 |
| 65 | 545008044 | GASKET KIT 33CC Price: $6.99 |
| 66 | 545190501 | CARB BOOT ADAPTER Price: $1.99 |
| 67 | 574719701 | Price: $6.99 |
| 68 | 545189502 | CARBURETOR This part replaces 545008042. Price: $39.99 |
| 69 | 545195901 | AIR FILTER Price: $1.99 |
| 070 | 98-9440 | NUT-CAP Price: $18.34 |
| 70 | 545188801 | AIRBOX KNOB ASSY BLACK Price: $1.99 |
