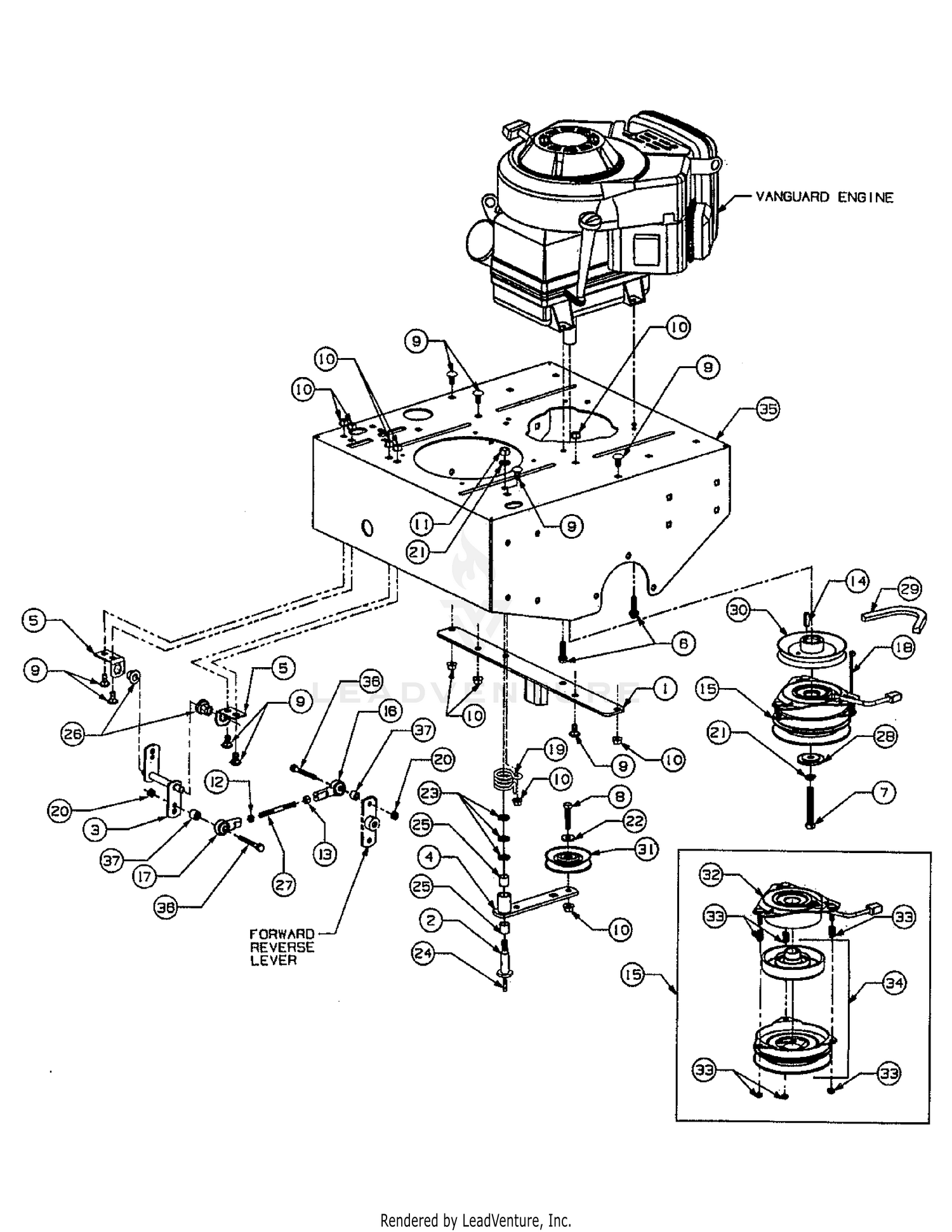

| Ref | Part Number | Description |
|---|
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 1 |
603-0056 |
RETAINER, PTO CLUTCH Not Available Price: |
| 1 |
95-7522 |
AXLE Price: $377.20 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
738-05004 |
SHOULDER BOLT This part replaces 738-3108. Price: $20.98 |
| 2 |
99-7564 |
SEAL-OIL Price: $25.36 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 3 |
603-0155 |
LEVER-F/R Not Available Price: |
| 3 |
95-7544 |
CLIP Price: $4.04 |
| 4 |
95-7523 |
SPACER Price: $26.89 |
| 5 |
703-2425 |
ANGLE BRACKET-LEVER Not Available Price: |
| 5 |
99-7555 |
SHIM 0.3 Price: $3.29 |
| 5 |
99-7556 |
SHIM 0.2 Price: $3.29 |
| 5 |
99-7557 |
SHIM 0.5 Price: $3.37 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
710-0502A |
Screw, Hex L-Wash Tapp, 3/8-16 x 1.25 Price: $5.71 |
| 6 |
95-7525 |
GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
710-0510 |
Screw, Hex Cap, 7/16-20 x 3.0 Gr 5 Price: $9.78 |
| 7 |
99-7534 |
BEARING-BALL Price: $65.44 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 This part replaces 710-3037. Price: $4.39 |
| 8 |
95-7521 |
COVER-AXLE Price: $107.87 |
| 9 |
106-1071 |
O-RING This part replaces 99-7538. Price: $18.43 |
| 9 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 10 |
93-7775 |
BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 |
712-3019 |
Nut, Hex, 7/16-14 Gr 5 Price: $5.94 |
| 11 |
99-7539 |
CLIP Price: $11.07 |
| 12 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 12 |
912-3045 |
Hex Jam Nut 5/16 Thd. L.H. Not Available This part replaces 712-3045. Price: |
| 13 |
912-3057 |
Hex Nut, 5/16-24 This part replaces 712-3057. Price: $5.94 |
| 14 |
714-0128 |
Key Square, 1/4 x 1.0 Price: $4.13 |
| 15 |
917-3389 |
Electric Clutch This part replaces 717-3389. Price: $563.96 |
| 16 |
723-0449 |
SPHERICAL ROD END Not Available Price: |
| 17 |
723-0450 |
SPHERICAL ROD END Not Available Price: |
| 18 |
725-0157 |
Cable Tie Price: $3.46 |
| 19 |
932-3009 |
Spring, Torsion This part replaces 732-3009. Price: $21.40 |
| 20 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
736-0171 |
Washer, Lock 7/16 Price: $3.86 |
| 22 |
936-0206 |
Washer, Spec .378 x 1.0 x .125 Thk This part replaces 736-0206. Price: $3.93 |
| 23 |
936-3015 |
Washer, Flat, .469 x .875 x .105 This part replaces 736-3015. Price: $3.89 |
| 24 |
737-0280 |
GREASE FITTING (SLOTTED) Price: $6.84 |
| 25 |
741-3063 |
Bearing, Sleeve Price: $15.66 |
| 26 |
741-0324A |
Bearing, Flange, hex, .506 Id x .590 This part replaces 741-0324. Price: $7.07 |
| 27 |
747-3170 |
CONTROL ROD Not Available Price: |
| 28 |
750-3106 |
CLUTCH SPACER Not Available Price: |
| 29 |
954-0244 |
VBelt 1/2 x 40" Lg. (Kevlar) This part replaces 754-0244. Price: $34.90 |
| 30 |
756-3060A |
Transmission Drive Pulley This part replaces 756-3060. Price: $85.66 |
| 31 |
756-3068 |
V-IDLER PULLEY Not Available Price: |
| 32 |
959-3694 |
Field Assembly This part replaces 759-3694. Price: $266.47 |
| 34 |
959-3739 |
ARMATURE ASSEMBLY W/SLEEVE Not Available This part replaces 759-3739. Price: |
| 35 |
759-3767 |
DECK-ENGINE WABEL Not Available Price: |
| 35 |
777-1585A |
GRAPHIC WARNING Not Available Price: |
| 36 |
710-3083 |
Screw, Hex Cap, 5/16-18 x 1.38 Gr 5 Price: $3.94 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
