Home / OPE / Commercial & Ground (2001 & Before) / 4814R S/N 495,637 and above (555C463M100 / 556C463M100) 555C463M100 556C463M100 / Fuel System

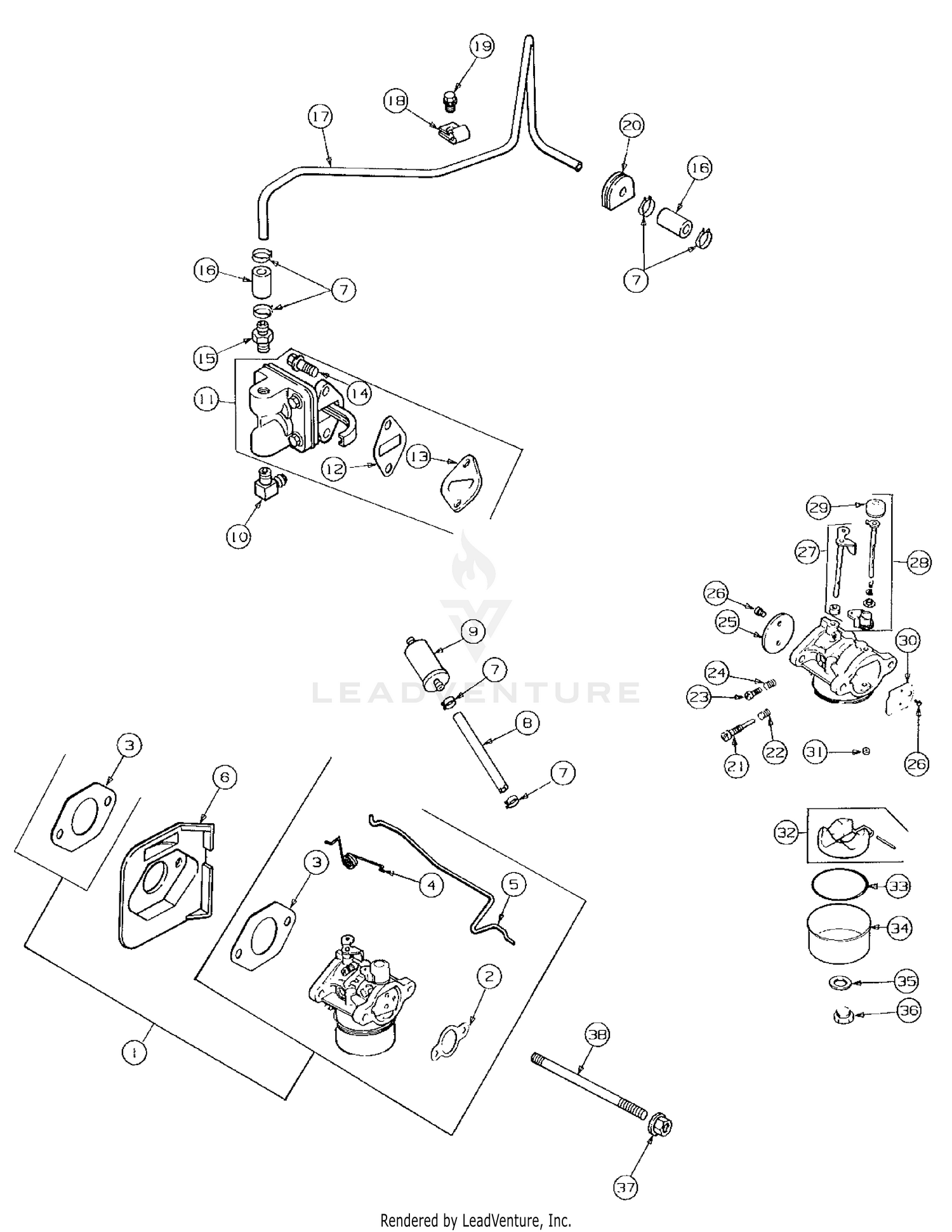

Fuel System

Fuel System

Parts (36)

RefPart NumberDescription
2 KH-12-041-02 Gasket, Air Cleaner Price: $2.41
3 KH-12-041-01 Gasket, Carburetor Price: $2.29
4 KH-12-089-23 CHOKE RETURN SPRING Not Available Price:
5 KH-12-078-07 Linkage,Choke Price: Call Us
6 KH-12-265-08-S DEFLECTOR-HEAT Not Available This part replaces KH-12-265-01. Price:
7 KH-25-237-31-S Hose Clamp (KM) This part replaces KH-X-426-9. Price: $4.42
8 KH-25-353-02 FUEL LINE Not Available Price:
9 KH-25-050-22-S1 Fuel Filter This part replaces KH-25-050-03. Price: $18.01
10 KH-25-155-02 CONNECTOR- Not Available Price:
12 KH-25-041-10-S GASKET-FUEL PUMP Not Available This part replaces KH-25-041-09. Price:
13 KH-12-112-05 SPACER-FUEL PUMP Not Available Price:
14 KH-25-086-396-S Screw, M6 x 1.0 x 20 This part replaces KH-SM-0645020. Price: $2.29
15 KH-25-326-03-S CONNECTOR Not Available This part replaces KH-X-380-1. Price:
16 751-10349-13 Fuel Line, 12 inches This part replaces KH-12-353-01. Price: $15.58
17 KH-12-123-01 FUEL LINE Not Available Price:
18 KH-12-154-01 CLAMP Not Available Price:
19 KH-M-0545010 Screw, Breather Reed Retainer, M5 X 0.8 X 10 This part replaces KH-M-545010. Price: $4.19
20 KH-12-313-01 GROMMET Not Available Price:
21 KH-12-368-03 NEEDLE-IDLE Not Available Price:
22 KH-12-0589-09 Spring, Idle Fuel Price: Call Us
23 KH-12-086-04 SCREW-IDLE Not Available Price:
24 KH-12-089-09 SPRING-IDLE FUEL Not Available Price:
25 KH-12-146-03 PLATE-THROTTLE Not Available Price:
26 KH-25-086-27 SCREW-THROTTLE AND Not Available Price:
27 KH-12-144-09 THROTTLE SHAFT Not Available Price:
28 KH-12-757-11 KIT-CHOKE REPAIR Not Available Price:
29 KH-12-173-06 CHOKE LEVER CAP Not Available Price:
30 KH-12-146-10 PLATE-CHOK Not Available Price:
31 KH-12-337-07 MAIN JET Not Available Price:
32 KH-12-757-02 KIT-FLOAT Not Available Price:
33 KH-12-041-05 BOWL GASKET .0445 Not Available Price:
34 KH-12-104-01 Bowl, Fuel Price: $6.28
35 KH-25-041-03 GASKET-BOWL RETAIN Not Available This part replaces KH-12-041-06. Price:
36 KH-12-086-05 SCREW-BOWL RETAINE Not Available Price:
37 KH-M-641060-S Nut, Hex Flange This part replaces KH-SM-0641060. Price: $4.01
38 KH-M-0629122 CARBURETOR STUD Not Available Price:
