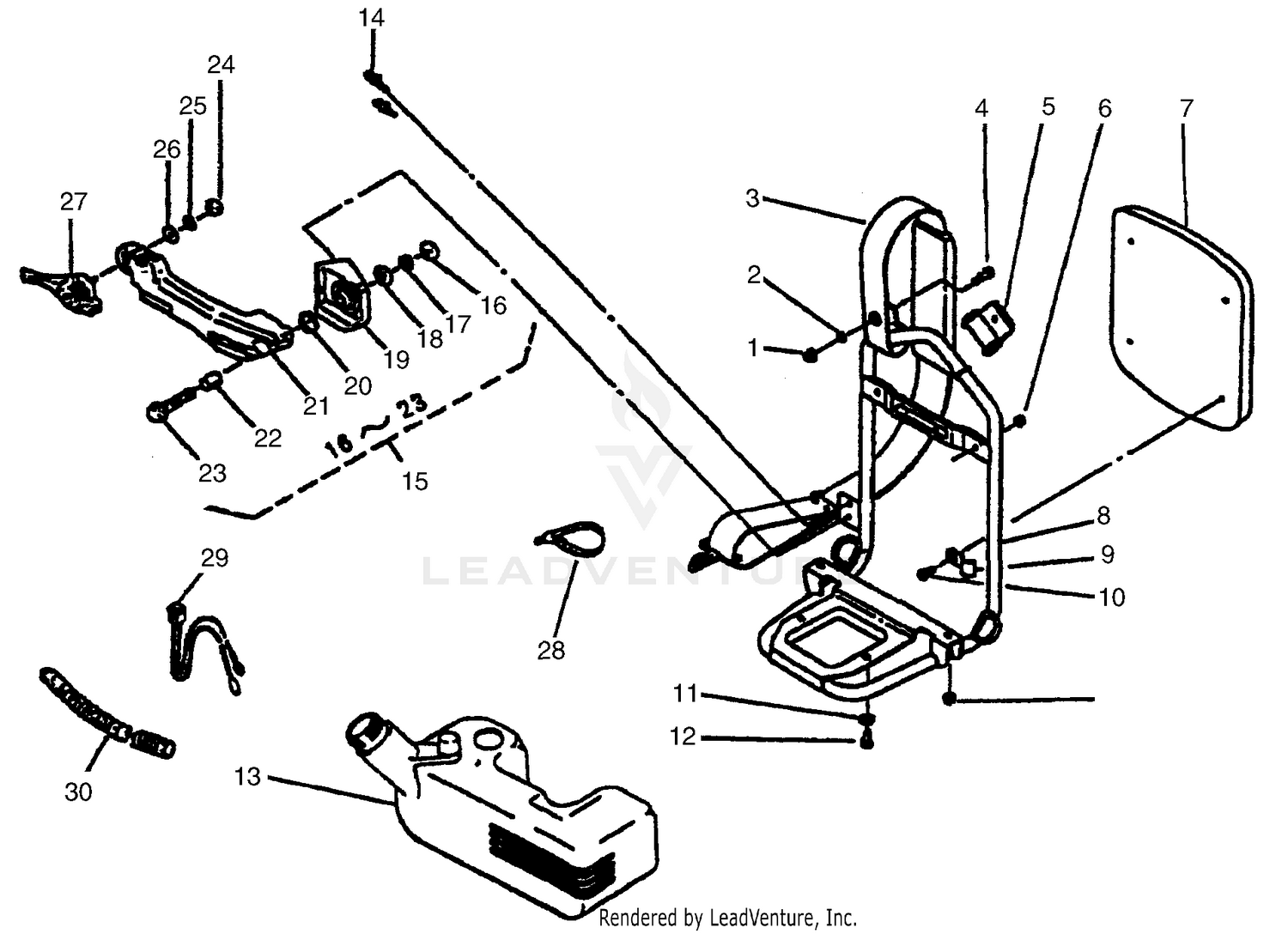

Throttle Assy., Fuel Tank & Backpack Frame
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 531003205 | NUT This part replaces 695000038. Price: $0.99 |
| 2 | 695000045 | WASHER Price: $0.99 |
| 3 | 695000763 | Shoulder Band This part replaces 695000530. Price: $29.99 |
| 4 | 695000025 | TRUSS SCREW Price: $2.99 |
| 5 | 695000017 | BAND SUPPORT Price: $5.99 |
| 6 | 695000039 | Flange Nut Price: $0.34 |
| 7 | 695000048 | KNAPSACK PAD Price: $54.99 |
| 8 | 695000649 | Backpack Frame Price: $119.14 |
| 9 | 695000003 | PAD FITTING Price: $3.99 |
| 10 | 695000010 | BOLT HEX Price: $2.99 |
| 11 | 501941301 | Plain Washer (M6) Price: $4.58 |
| 12 | 531003220 | SCREW This part replaces 695000200. Price: $0.99 |
| 13 | 695000572 | Fuel Tank Price: $49.99 |
| 14 | 695000675 | Screw (M5x12) Price: $0.34 |
| 15 | 695000404 | LEVER C.P. Price: $32.99 |
| 16 | 695000216 | HEXAG0N NUT 5MM Price: $1.99 |
| 17 | 695000212 | SPRING LOCK WASHER 8MM 661L080 Price: $2.99 |
| 18 | 695000213 | PLAIN WASHER 8MM 612L0800 Price: $2.99 |
| 19 | 695000206 | STAY 11113-238 Price: $7.99 |
| 20 | 695000209 | O-RING 211B2100 Price: $2.99 |
| 21 | 695000207 | STAY Price: $11.99 |
| 22 | 695000208 | Spacer Price: $0.57 |
| 23 | 695000210 | FLANGE BOLT 8X2.5MM Price: $2.99 |
| 24 | 695000216 | HEXAG0N NUT 5MM Price: $1.99 |
| 25 | 695000217 | SPRING LOCK WASHER 5MM Price: $2.99 |
| 26 | 695000218 | PLAIN WASHER 5MM 613L0500 Price: $2.99 |
| 27 | 695000215 | THROTTLE LEVER Price: $22.99 |
| 28 | 531003249 | BAND This part replaces 695000043. Price: $0.99 |
| 29 | 695000219 | SWITCH STOP Price: $19.99 |
