| Ref | Part Number | Description |
|---|
| 1 |
532140537 |

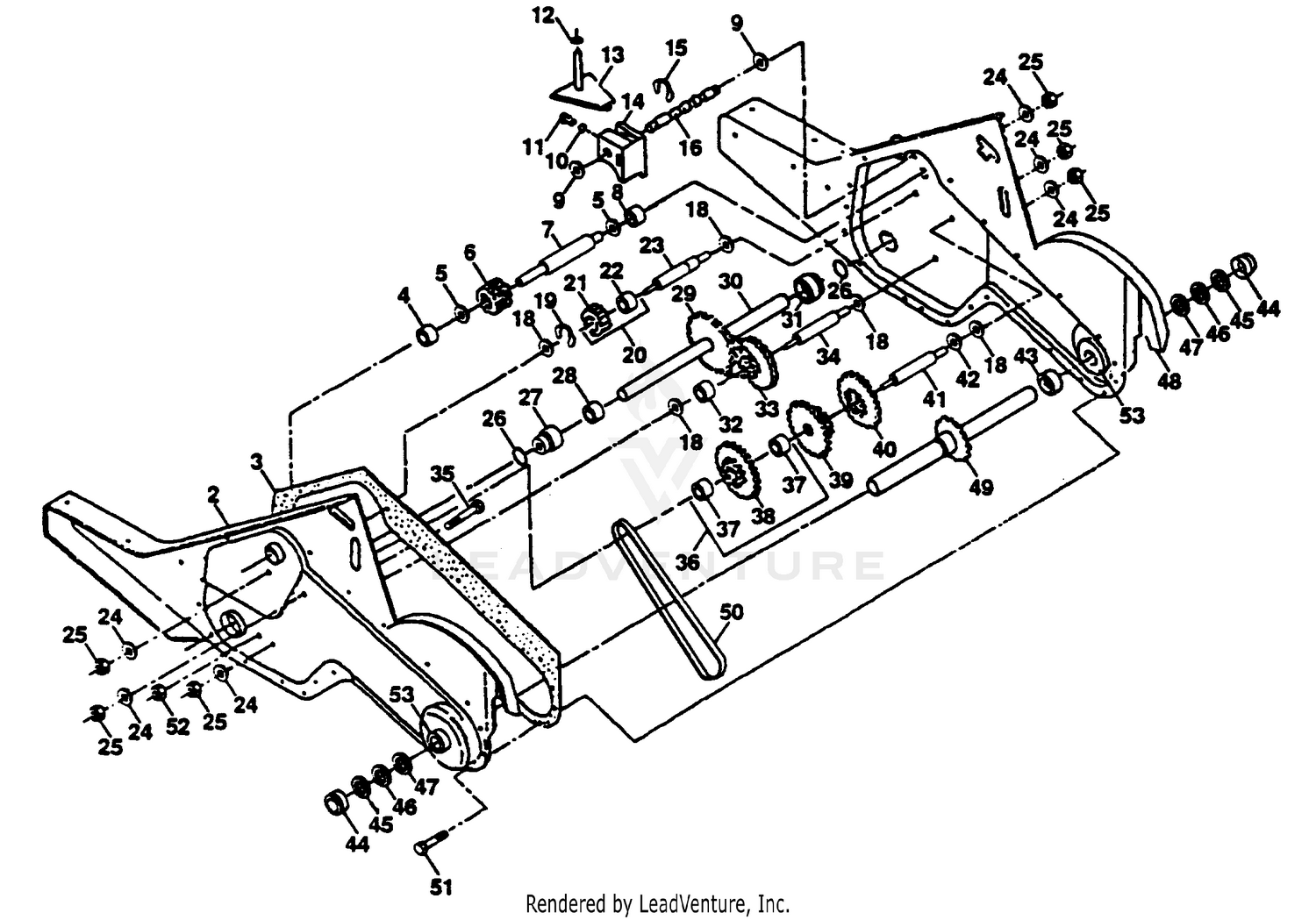

Transmission Assembly (Includes Key Nos. 2-52) (AYP part number) Price: $699.99 |
| 2 |
131-3216-03 |
HANDLE-BASKET, 18IN Price: $83.19 |
| 2 |
532121147 |
Gearcase, L.H. w/Bearing (Inc. 4) (AYP part number) This part replaces 532139544. Price: $99.99 |
| 3 |
130-8095-03 |
BRACKET-INNER BASKET, LH Price: $17.26 |
| 3 |
532106211 |
Gasket, Gearcase (AYP part number) Price: $5.99 |
| 4 |
130-8096-03 |
BRACKET-INNER BASKET, RH Price: $17.26 |
| 4 |
532005020 |
Bearing, Needle (AYP part number) Price: $9.99 |
| 5 |
132-7128-03 |
BRACKET-STOP, LH Price: $14.53 |
| 5 |
532001370 |
Washer, Thrust 5/8 x 1.10 x 1/32 (AYP part number) Price: $2.99 |
| 6 |
132-7129-03 |
BRACKET-STOP, RH Price: $13.10 |
| 6 |
586196301 |
PINION INPUT CRT TILLER This part replaces 532137335. Price: $19.99 |
| 7 |
131-4738 |
BASKET FLAP ASM (18IN) Price: $169.55 |
| 7 |
532102110 |
Shaft, Input (AYP part number) Price: $45.53 |
| 8 |
532004895 |
BEARING This part replaces 532124792. Price: $9.99 |
| 9 |
125-5617-03 |
STRIP-18IN BASKET Price: $48.67 |
| 9 |
532102136 |
Washer, Seal (AYP part number) Price: $3.99 |
| 10 |
532100482 |
STEEL.BALL.KIT(12 BALLS) This part replaces 532124697. Price: $3.99 |
| 11 |
110-9626 |
PIN-BASKET Price: $16.35 |
| 11 |
532100371 |
Spring, Shift, Fork (AYP part number) Price: $3.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
532106160 |
O-Ring (AYP part number) Price: $3.99 |
| 13 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 13 |
532142145 |
Arm, Shift Price: $14.99 |
| 14 |
3229-30 |
SCREW-CARR Price: $1.39 |
| 14 |
532008353 |
Fork, Shift Price: $19.99 |
| 15 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 15 |
812000039 |
Ring, Klip (AYP part number) Price: $3.99 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 16 |
532154466 |
SHAFT.SHIFTER.TILLER This part replaces 532140525. Price: $4.99 |
| 17 |
104-7201 |
NUT-HF Price: $0.69 |
| 18 |
321-7 |
SCREW-HH Price: $4.19 |
| 18 |
532004358 |
Washer (AYP part number) Price: $3.99 |
| 19 |
131-3208 |
RIVET-POP Price: $0.53 |
| 19 |
812000040 |
Ring, Klip (AYP part number) Price: $3.99 |
| 20 |
532102114 |
Gear, Assembly, Reverse Idler (Includes Key Nos. 21 and 22) Price: $17.99 |
| 21 |
532102115 |
Gear, Reverse Idler (AYP part number) Price: $9.99 |
| 22 |
532006803 |
Bearing, Needle (AYP part number) Price: $6.99 |
| 23 |
532102111 |
Shaft, Reverse Idler (AYP part number) Price: $17.99 |
| 24 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 25 |
873610700 |
Nut, Hex 7/16-20 (AYP part number) Price: $3.99 |
| 26 |
532102128 |
O-Ring (AYP part number) Price: $3.99 |
| 27 |
532102100 |
Bearing, Shaft, Ground Drive (AYP part number) Price: $6.94 |
| 28 |
532106390 |
Spacer 0.765 x 1.125 x 1.23 (AYP part number) Price: $3.99 |
| 29 |
532102134 |
Chain #35-50 Pitch (AYP part number) Price: $17.99 |
| 30 |
532150737 |
GROUND SHAFT ASS'Y This part replaces 532124458. Price: $49.99 |
| 31 |
532143008 |
BEARING, SHAFT RH CRT This part replaces 532102106. Price: $4.99 |
| 32 |
532106388 |
Spacer 0.70 x 1.00 x 1.150 (AYP part number) Price: $3.99 |
| 33 |
532102121 |
Sprocket and Gear Assembly (AYP part number) Price: $34.99 |
| 34 |
532102112 |
Shaft, Reduction (2nd) (AYP part number) Price: $17.99 |
| 35 |
532102101 |
Screw, Whiz, Lock 5/16-18 x 3-1/2 (AYP part number) Price: $2.99 |
| 36 |
532137300 |
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number) Price: $98.57 |
| 37 |
585695502 |
BEARING NEEDLE .875X.687 OE.50 This part replaces 532124791. Price: $2.99 |
| 38 |
532137300 |
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number) This part replaces 532137301. Price: $98.57 |
| 39 |
532105345 |
Gear, Cluster, Red 1st & 2nd (AYP part number) Price: $22.99 |
| 40 |
532105346 |
Gear, Reverse (AYP part number) Price: $17.99 |
| 41 |
532008358 |
Shaft, Reduction (1st) (AYP part number) Price: $12.99 |
| 42 |
532004220 |
Washer, Thrust (AYP part number) Price: $3.99 |
| 43 |
532106146 |
Spacer 1.01 x 1.75 x 0.760 Price: $3.99 |
| 44 |
532155236 |
SEAL ASM, OIL This part replaces 532009672. Price: $3.99 |
| 45 |
532102144 |
Ring, Spiral (AYP part number) Price: $4.99 |
| 46 |
532140576 |
Seal, Ring, Rubber (AYP part number) Price: $2.38 |
| 47 |
532007393 |
OIL SEAL This part replaces 532124698. Price: $2.99 |
| 48 |
532150700 |
This part replaces 532139546. Price: $109.99 |
| 49 |
532432058 |
KIT.TINE.SHAFT.SERVICE This part replaces 532132688. Price: $84.99 |
| 50 |
532106147 |
Chain, Roller #50-50 Pitch (AYP part number) Price: $39.99 |
| 51 |
817580408 |
Screw 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 52 |
873220500 |
Nut, Hex 5/16-18 (AYP part number) Price: $3.99 |
| 53 |
532165140 |
BEARING KIT This part replaces 532122204. Price: $59.99 |
