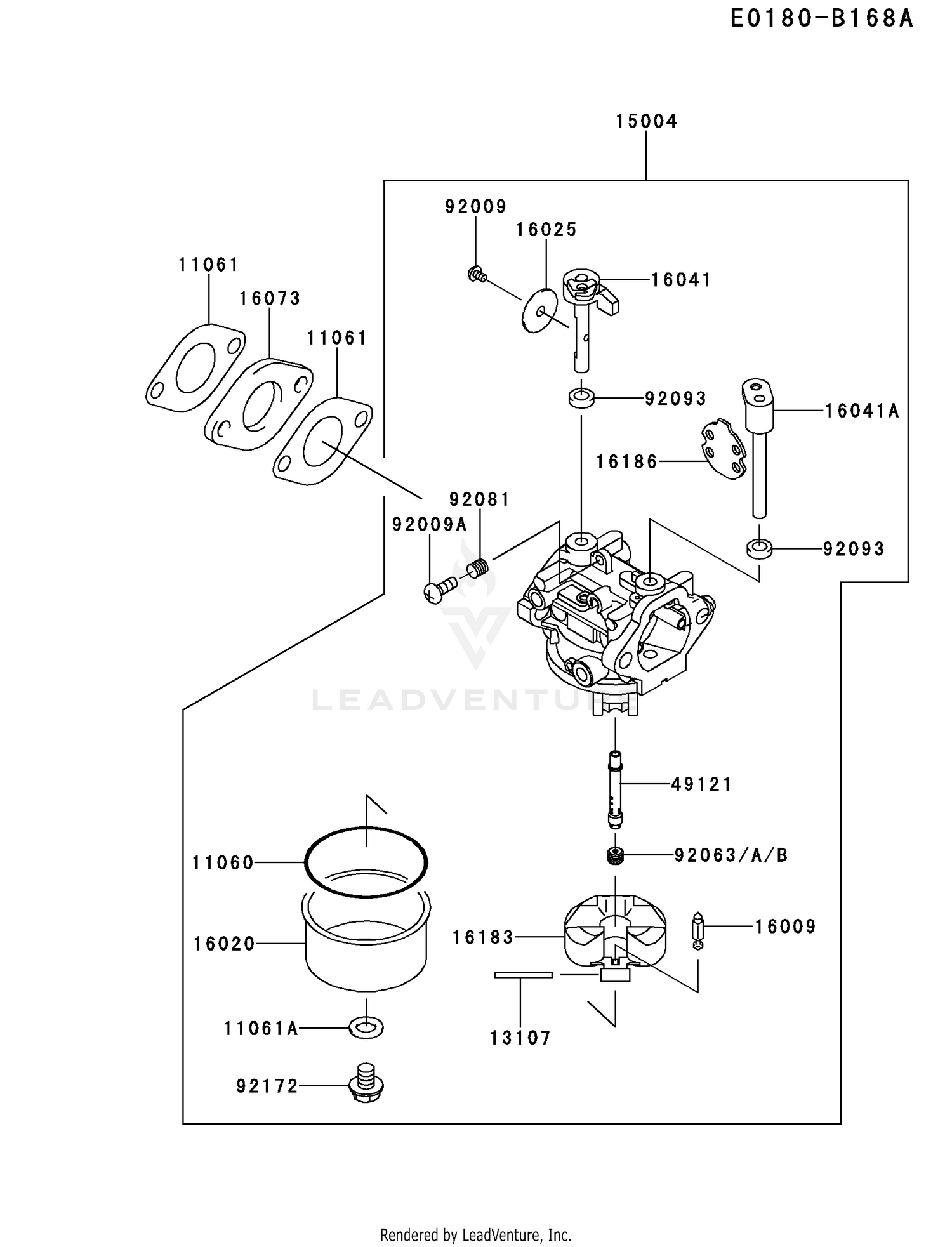

CARBURETOR
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 11060 | 11060-2190 | GASKET Price: $3.71 |
| 11061 | 11061-2215 | GASKET,INSULATOR Price: $1.74 |
| 11061A | 11061-7010 | GASKET,SCREW Price: $2.83 |
| 13107 | 13107-7024 | SHAFT Price: $7.01 |
| 15004 | 15004-0962 | CARBURETOR-ASSY Price: $191.83 |
| 16009 | 16009-2136 | NEEDLE-JET Price: $19.98 |
| 16020 | 16020-7004 | CHAMBER-FLOAT Price: $30.64 |
| 16025 | 16025-7007 | VALVE-THROTTLE Price: $7.99 |
| 16041 | 16041-7019 | SHAFT-CARBURETOR Price: $29.37 |
| 16041A | 16041-7020 | SHAFT-CARBURETOR Price: $10.33 |
| 16073 | 16073-2240 | INSULATOR Price: $2.11 |
| 16183 | 16183-2002 | FLOAT-ASSY Price: $18.48 |
| 16186 | 16186-7003 | VALVE-ASSY-CHOKE Price: $10.09 |
| 49121 | 49121-7014 | NOZZLE-MAIN Price: $28.24 |
| 92009 | 92009-2083 | SCREW Price: $1.76 |
| 92009A | 92009-2349 | SCREW Price: $1.29 |
| 92063 | 92063-7067 | JET-MAIN,#70,3280FT Price: $9.22 |
| 92063A | 92063-7108 | JET-MAIN,#66,3280FT Price: $9.20 |
| 92063B | 92063-7109 | JET-MAIN,#68,6560FT Price: $9.20 |
| 92081 | 92081-2234 | SPRING Price: $3.79 |
| 92093 | 92093-2100 | SEAL Price: $2.70 |
