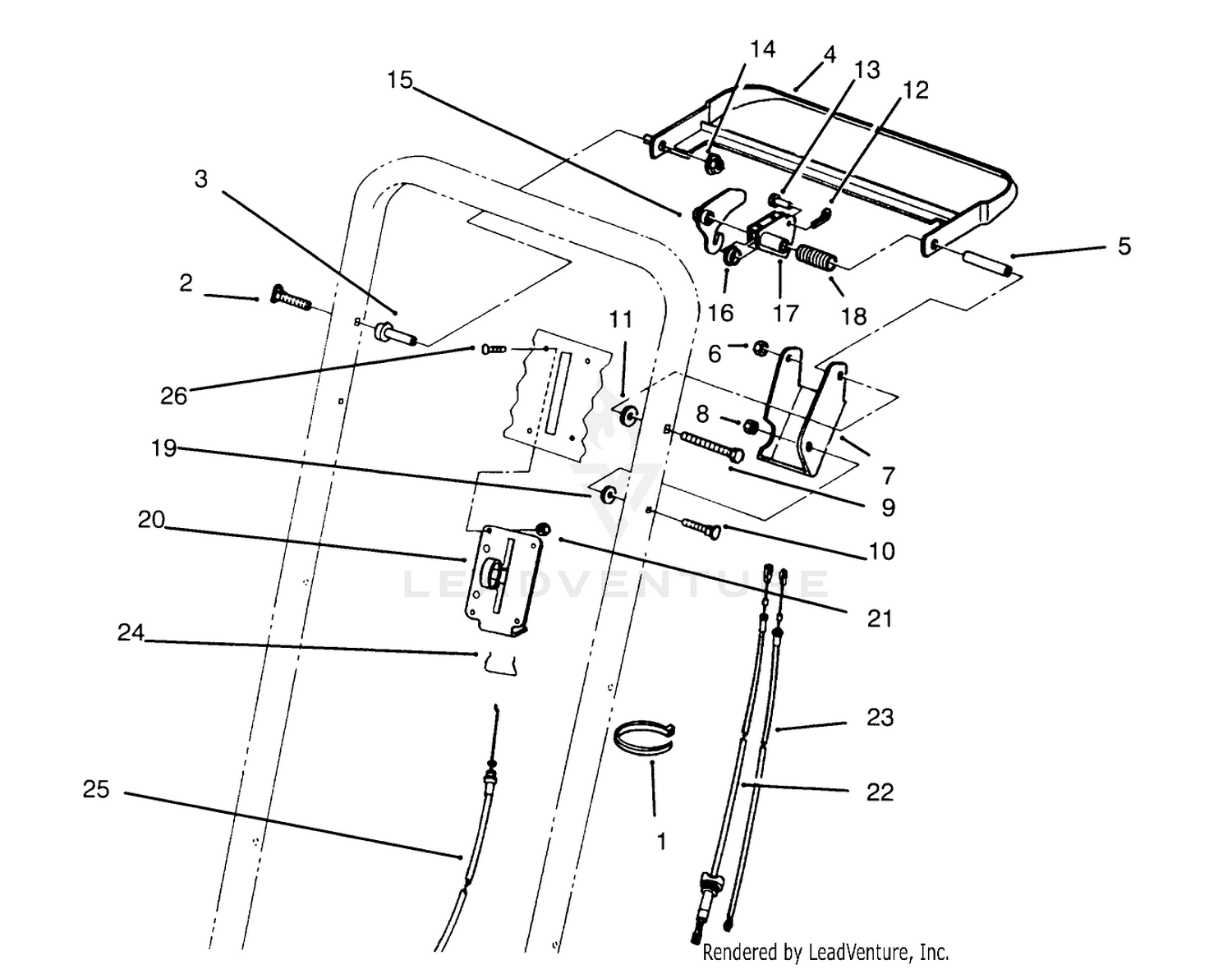

| Ref | Part Number | Description |
|---|
| 1 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 2 |
17-9427 |
SCREW Price: $5.83 |
| 3 |
49-1631 |
SPACER-SUPPORT Price: $4.35 |
| 4 |
84-8940-03 |
BAR-CONTROL This part replaces 84-8940. Price: $74.97 |
| 5 |
84-9030 |
SPACER-BRACKET, CONTROL Price: $7.09 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
92-1778-03 |
BRACKET-CONTROL This part replaces 92-1778. Price: $12.29 |
| 8 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 9 |
322-19 |
SCREW-HH Price: $5.99 |
| 10 |
46-6430 |
SCREW-HANDLE Price: $7.30 |
| 11 |
71-9310 |
SPACER Price: $2.29 |
| 12 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 13 |
84-9040 |
PIN-CABLE Price: $8.06 |
| 14 |
3296-58 |
NUT-LOCK, NI Price: $2.19 |
| 15 |
84-9000 |
LEVER-TRACTION Price: $16.20 |
| 16 |
86-9320 |
BUSHING-FLANGE Price: $8.19 |
| 17 |
84-8990 |
LEVER-BBC Price: $18.47 |
| 18 |
85-6750 |
SPRING-CONTROL Price: $9.99 |
| 19 |
71-9320 |
SPACER Price: $1.87 |
| 20 |
85-6770 |
CONTROL-THROTTLE Price: $52.00 |
| 21 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 22 |
84-9120 |
CABLE-TRACTION Price: $44.86 |
| 23 |
84-9110 |
CABLE-CLUTCH Price: $58.04 |
| 24 |
85-6780 |
RETAINER-CABLE, THROTTLE Price: $7.09 |
| 25 |
85-6760 |
CABLE-THROTTLE Price: $38.61 |
