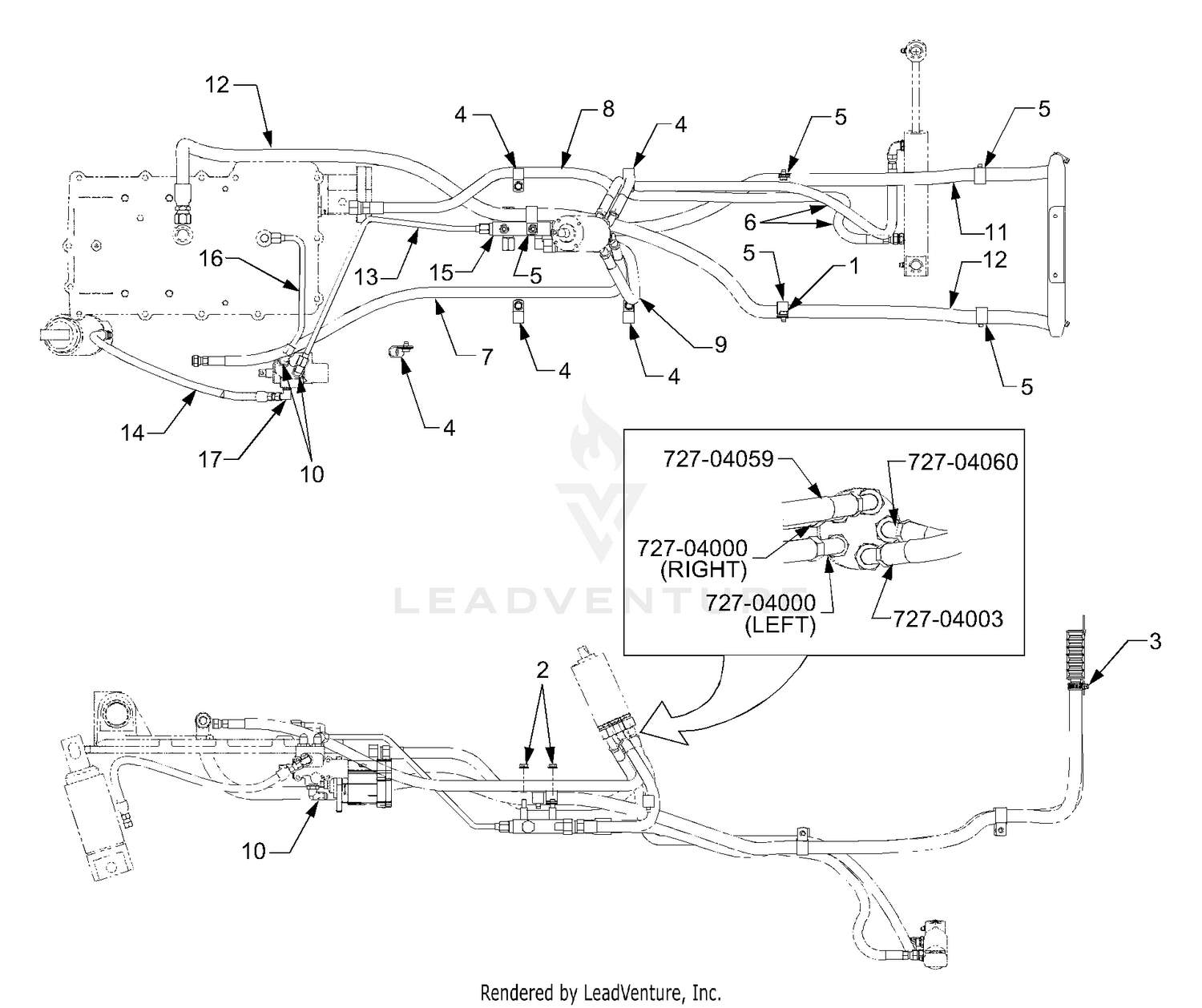

| Ref | Part Number | Description |
|---|
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 1 |
710-0607 |
Screw, Hex Wash Hd. Tapp 5/16-18 x .5 Price: $6.06 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 3 |
726-0132 |
Clamp, Adjustable Hose Price: $13.50 |
| 4 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 4 |
726-04004 |
HOSE CLAMP Not Available Price: |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 5 |
726-0475 |
Clamp, Hose Price: $12.11 |
| 6 |
323-4 |
SCREW-HH Price: $1.02 |
| 6 |
727-04000 |
Hose, Steering Price: $80.05 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 7 |
727-04003 |
LIFT INLET HOSE Not Available Price: |
| 8 |
3212-4 |
SCREW-HH Price: $2.73 |
| 8 |
727-04059 |
HOSE-STEER PRESS 3 Not Available Price: |
| 9 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 9 |
727-04060 |
STEERING TANK HOSE Not Available Price: |
| 10 |
727-3012 |
Fitting, 90 Degree Price: $23.35 |
| 10 |
75-4370-03 |
BRACKET-SEAT This part replaces 75-4370. Price: $20.93 |
| 11 |
727-3177 |
OIL RETURN HOSE Not Available Price: |
| 11 |
92-8753 |
DISCONTINUED Price: Call Us |
| 12 |
3250-29 |
SCREW-PPH Price: $0.25 |
| 12 |
727-3178 |
OIL RETURN HOSE Not Available Price: |
| 13 |
727-3182 |
LIFT RETURN TUBE Not Available Price: |
| 13 |
92-8001 |
SENSOR-SWITCH, REED Price: $86.02 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
727-3184 |
LIFT CYLINDER HOSE Not Available Price: |
| 15 |
727-3199 |
RETURN MANIFOLD ASSEMBLY Not Available Price: |
| 15 |
75-4360-03 |
BRACKET-SUSPENSION, SEAT This part replaces 75-4360. Price: $17.81 |
| 16 |
727-3209 |
CYLINDER RETURN TUBE Not Available Price: |
| 16 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 17 |
2412-133 |
CLAMP-R Price: $3.19 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 21 |
2412-93 |
CLAMP-R Price: $1.02 |
| 22 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 23 |
351-78 |
EDGING Price: $60.98 |
