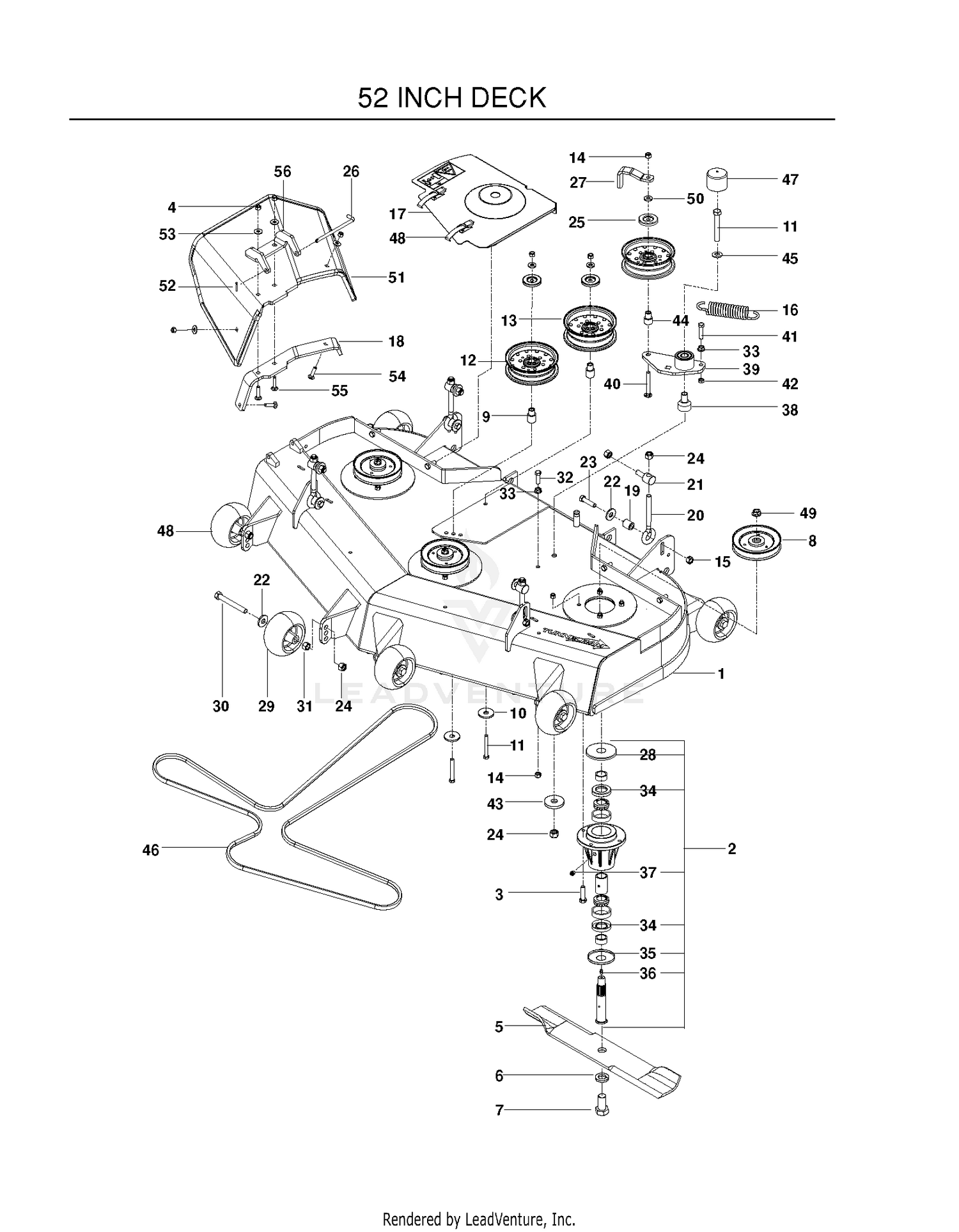

| Ref | Part Number | Description |
|---|
| 1 |
127-4879 |
HOOD ASM Price: $2,788.87 |
| 2 |
136-4456-03 |
MOUNT-HOOD Price: $686.76 |
| 2 |
966956101 |
KIT HSG ASM 52/61 This part replaces 539131383. Price: $129.99 |
| 3 |
115-0423 |
SEAL-BULB Price: $20.61 |
| 3 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 4 |
125-2881-03 |
SCREEN-HOOD Price: $240.74 |
| 4 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 5 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 5 |
539100341 |
BLADE OEM 18" Price: $19.99 |
| 6 |
104-7201 |
NUT-HF Price: $0.69 |
| 6 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 7 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 7 |
539103299 |
HCS 5/8F X 1 1/4 Price: $5.99 |
| 8 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 8 |
539112124 |
PULLEY, 52 Price: $39.99 |
| 9 |
125-4449 |
SEAL-FOAM Price: $4.74 |
| 9 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 10 |
103-2897 |
LATCH-CATCH Price: $7.99 |
| 10 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 11 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 11 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 12 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 12 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 13 |
125-2899-03 |
ROD-PROP Price: $16.85 |
| 13 |
521966601 |
PULLEY - IDLER, 6IN WIDE Price: $59.99 |
| 14 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 14 |
9335054 |
PIN-HAIR Price: $1.49 |
| 15 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 15 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 16 |
539130690 |
SPRING Price: $9.99 |
| 17 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 18 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
539130925 |
BRACKET, REINF-CHUTE Price: $139.99 |
| 19 |
539114404 |
SPACER Price: $6.99 |
| 20 |
104-1453 |
GROMMET Price: $6.57 |
| 20 |
539119227 |
BOLT, EYE Price: $14.99 |
| 21 |
505256501 |
SWIVEL, DECK HEIGHT ADJ Price: $14.99 |
| 22 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 23 |
596438501 |
Bolts This part replaces 539108073. Price: $2.99 |
| 24 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 25 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 26 |
539131813 |
PIN, CHUTE PIVOT Price: $6.99 |
| 27 |
539114982 |
GROMMET Price: $2.99 |
| 28 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 29 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 30 |
539108366 |
HCS 1/2-13 X 4 GR 5 ZD Price: $5.99 |
| 31 |
596433401 |
Nuts This part replaces 539990625. Price: $2.99 |
| 32 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 33 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 34 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 35 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 36 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 37 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 38 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 39 |
539130391 |
ARM-IDLER W/BRG Price: $37.99 |
| 40 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 41 |
539107042 |
HCS 3/8-16 X 1-1/2 Price: $2.99 |
| 42 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 43 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 44 |
539130242 |
BUSHING, IDLER Price: $2.99 |
| 46 |
522795901 |
BELT, DECK Price: $79.99 |
| 47 |
539114823 |
CAP, VINYL Price: $2.99 |
| 48 |
539109660 |
DRAW LATCH Price: $13.99 |
| 49 |
598490501 |
Nuts This part replaces 539130653. Price: $7.99 |
| 50 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 51 |
539130779 |
CHUTE, RUBBER DISCHARGE 52/61" Price: $59.99 |
| 52 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 53 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 54 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 55 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 56 |
539130923 |
PIVOT BRACKET - RUBBER CHUTE Price: $37.99 |
