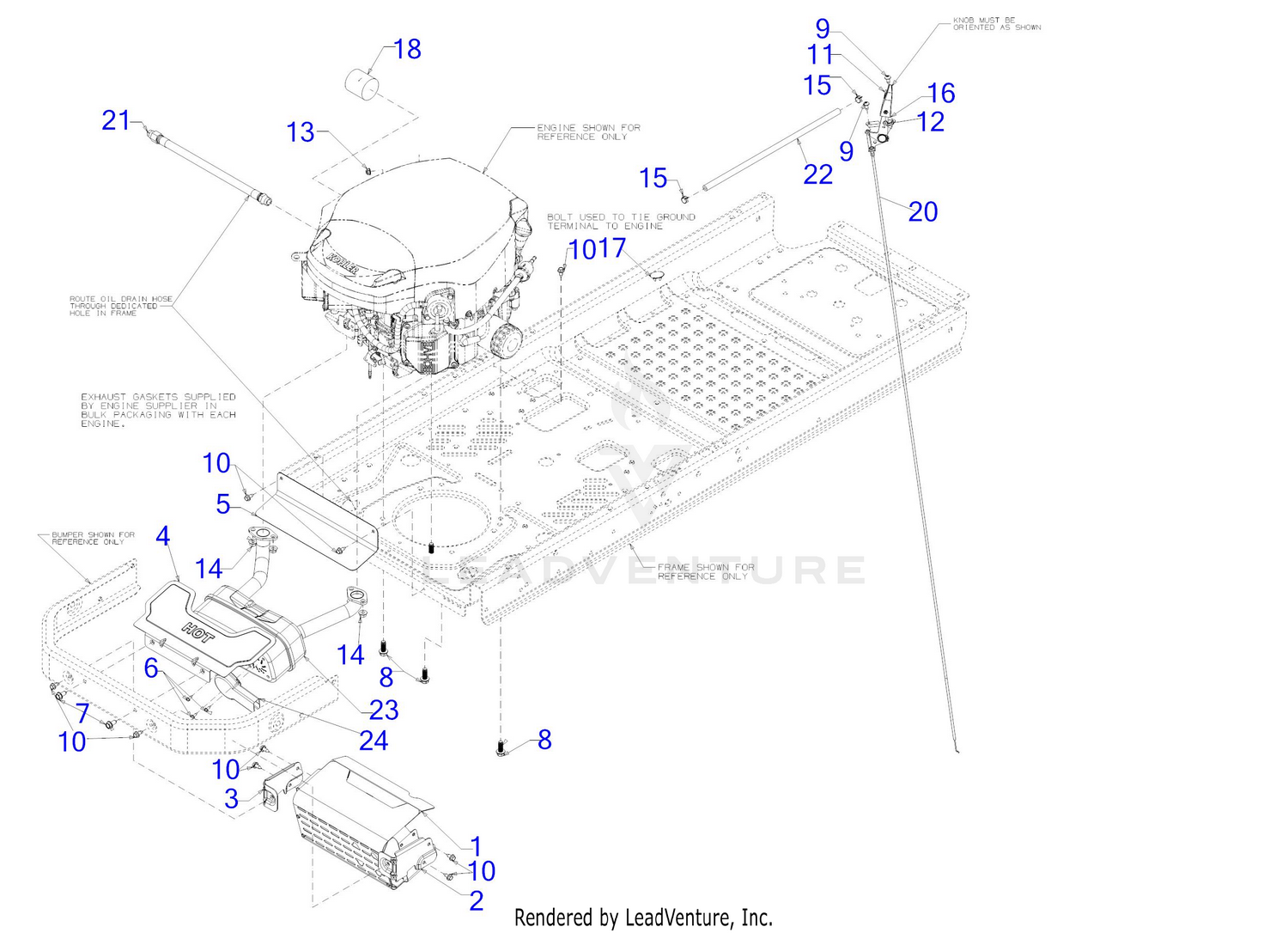

| Ref | Part Number | Description |
|---|
| 2 |
703-08671B |
MUFFLER SHIELD BRACKET (RH) Price: $6.02 |
| 3 |
703-08695A |
MUFFLER SHIELD BRACKET (LH) Price: $6.02 |
| 5 |
703-09195 |
LOWER HEAT SHIELD Price: $15.80 |
| 6 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 7 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 8 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 9 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 10 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 11 |
710-3217 |
SCREW #8-32X.38 LG Price: $5.94 |
| 12 |
712-0142 |
HEX NUT 8-32 Price: $3.90 |
| 13 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 14 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 15 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 16 |
731-09637 |
THROTTLE CONTROL KNOB Price: $7.44 |
| 17 |
731-1999 |
CHOKE PLUG Price: $8.98 |
| 18 |
(NOT |
SERVICED) OIL:SAE 10W30 Price: Call Us (NOT SERVICED) |
| 20 |
946-05145 |
THROTTLE/CHOKE CABLE 57" Price: $49.33 |
| 21 |
751-10291D |
OIL DRAIN HOSE W/VIBRA SEAL This part replaces 751-10291A. Price: $46.52 |
| 22 |
751-22813-36 |
FUEL HOSE 1/4-36" This part replaces 751-10349-28. Price: $41.21 |
| 23 |
751P10528E |
EXHAUST MUFFLER (KH TWIN) This part replaces 951-10528B. Price: $140.68 |
| 24 |
751-11053B |
EXHAUST DELECTOR (LONG) This part replaces 751-11053A. Price: $4.64 |
