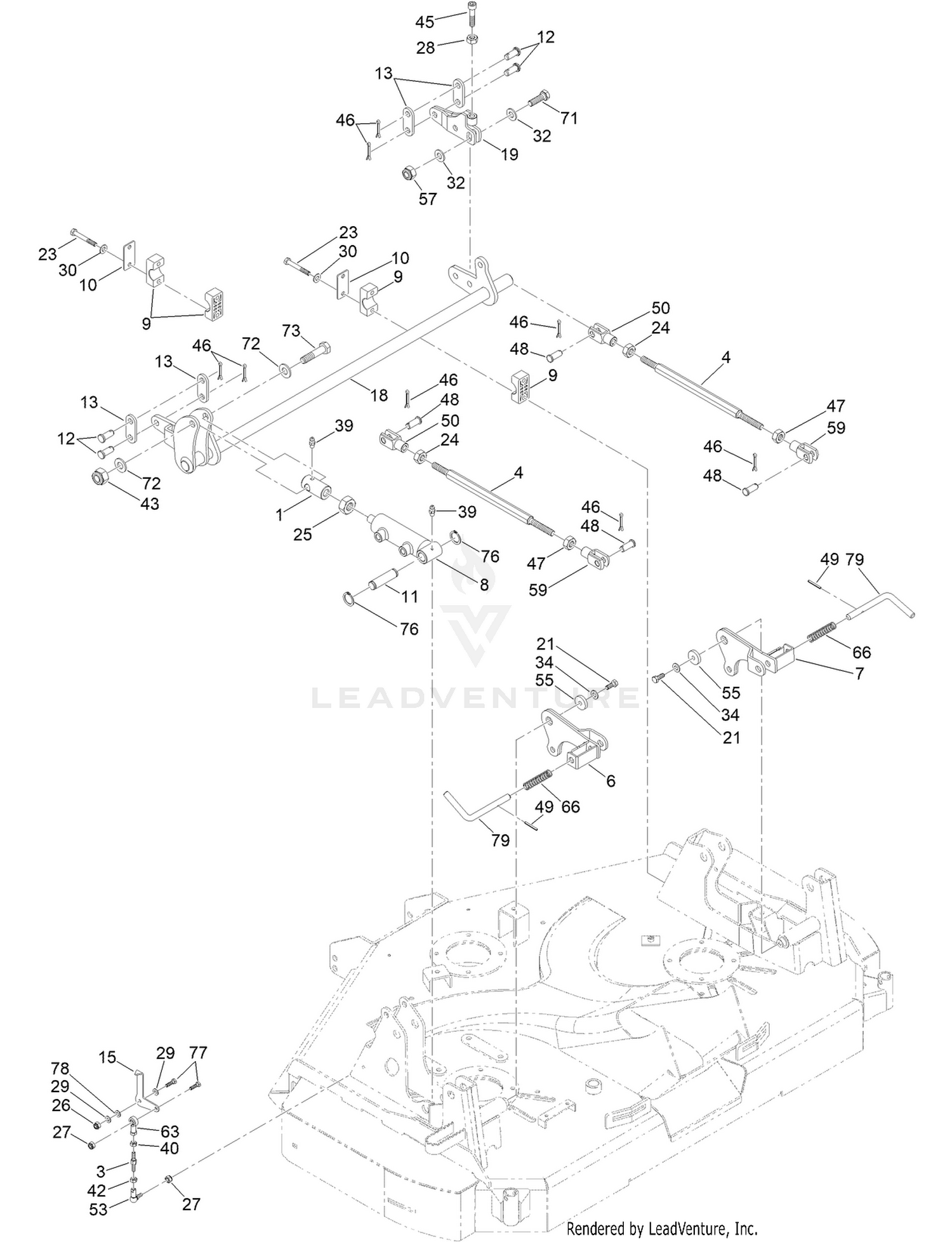

Flat Frame Assembly No. 2
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0692 | SUPPORT Price: $16.77 |
| 3 | 134-0738 | INDICATOR-HOC Price: $8.40 |
| 4 | 134-0739 | ROD Price: $32.69 |
| 6 | 134-0806 | LEVER Price: $43.69 |
| 7 | 134-0807 | LEVER Price: $42.02 |
| 8 | 134-0826 | CYLINDER-HYD Price: $296.02 |
| 9 | 134-0829 | BLOCK Price: $2.54 |
| 10 | 134-0856 | PLATE-SMALL Price: $1.68 |
| 11 | 134-0859 | PIN Price: $14.13 |
| 12 | 134-0865 | PIN Price: $11.51 |
| 13 | 134-0901 | PLATE-SMALL Price: $2.53 |
| 15 | 134-0903 | INDICATOR-HOC Price: $4.70 |
| 18 | 134-0944 | BRACKET Price: $94.82 |
| 19 | 134-0951 | BRACKET Price: $30.27 |
| 21 | 134-1011 | SCREW Price: $0.32 |
| 23 | 134-1024 | SCREW Price: $1.10 |
| 24 | 134-1035 | NUT Price: $0.49 |
| 25 | 134-1037 | NUT Price: $1.10 |
| 26 | 134-1041 | NUT Price: $0.25 |
| 27 | 134-1042 | NUT Price: $0.25 |
| 28 | 134-1043 | NUT Price: $0.32 |
| 29 | 134-1044 | WASHER Price: $0.25 |
| 30 | 134-1045 | WASHER Price: $0.25 |
| 32 | 134-1047 | WASHER Price: $0.25 |
| 34 | 134-1054 | WASHER Price: $0.32 |
| 39 | 134-1065 | FITTING-GREASE Price: $1.22 |
| 40 | 134-1080 | NUT Price: $0.25 |
| 42 | 134-1083 | NUT Price: $1.17 |
| 43 | 134-1090 | NUT Price: $2.25 |
| 45 | 134-1114 | SCREW Price: $1.42 |
| 46 | 134-1131 | PIN-SPRING Price: $0.32 |
| 47 | 134-1165 | NUT Price: $4.37 |
| 48 | 134-1182 | PIN Price: $7.20 |
| 49 | 134-1205 | PLUG-SPIROL Price: $1.46 |
| 50 | 134-1251 | FORK Price: $17.48 |
| 53 | 134-1327 | ARTICULATION Price: $5.85 |
| 55 | 134-1355 | WASHER Price: $4.91 |
| 57 | 134-0561 | NUT Price: $0.57 |
| 59 | 134-0616 | YOKE-LH Price: $7.02 |
| 63 | 134-0592 | HEAD-JOINT Price: $31.45 |
| 66 | 134-0641 | SPRING Price: $6.60 |
| 71 | 134-3011 | SCREW Price: $1.22 |
| 72 | 134-3012 | WASHER Price: $0.27 |
| 73 | 134-3013 | SCREW Price: $2.96 |
| 76 | 134-2964 | RING-SNAP Price: $0.39 |
| 77 | 134-1009 | SCREW Price: $0.32 |
| 78 | 134-3027 | WASHER Price: $0.25 |
