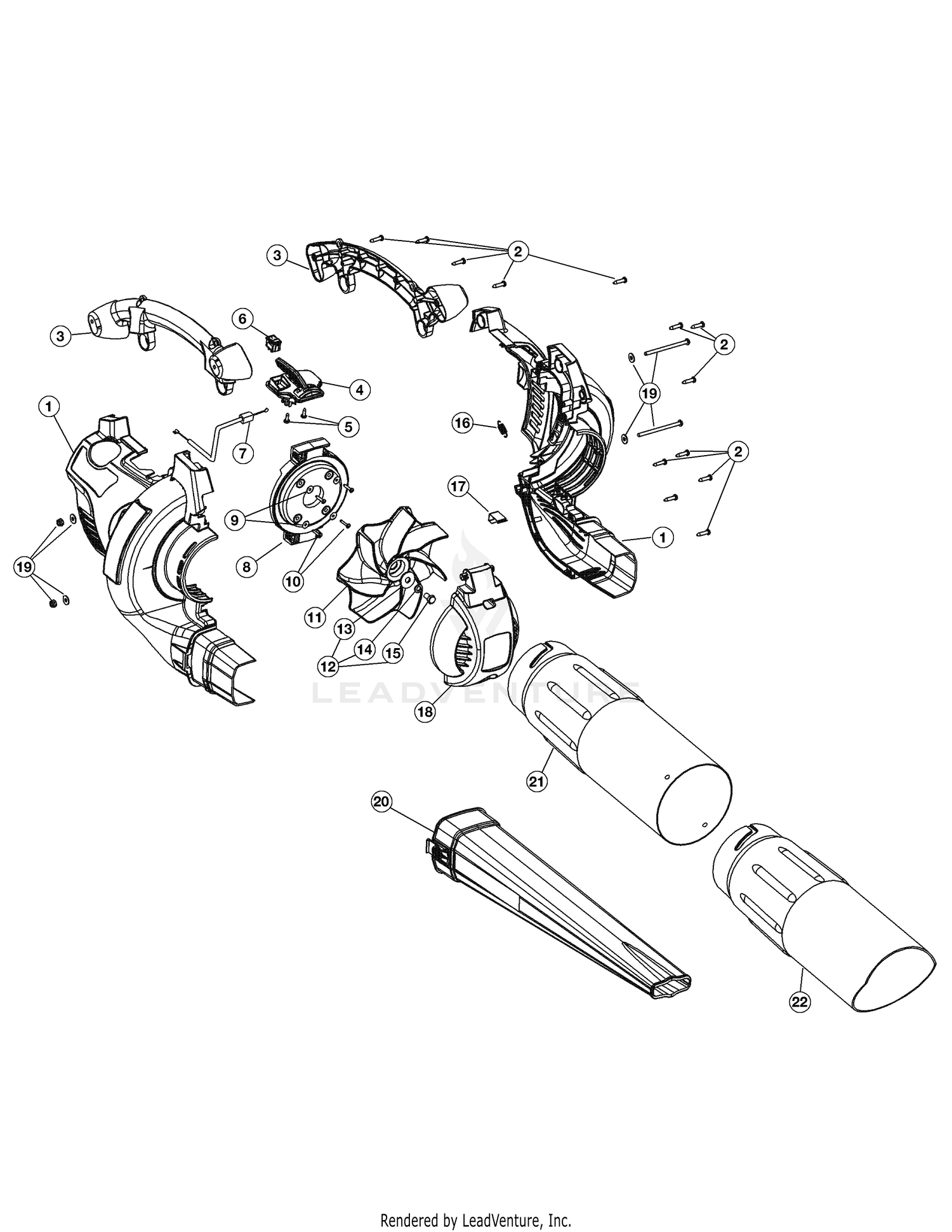

General Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 791-181345 | Screw Price: $3.75 |
| 5 | 791-182423 | SCREW, 6X.375X1/2 PL Not Available Price: |
| 6 | 791-182405 | Rocker Switch Assembly Price: $9.29 |
| 7 | 791-00049 | THROTTLE CABLE Not Available Price: |
| 9 | 791-182409 | Washer Price: $4.04 |
| 10 | 710-04215A | Screw Price: $4.09 |
| 11 | 731-04275 | Impeller Blade Price: $30.81 |
| 13 | 736-04107 | Washer Price: $3.86 |
| 14 | 736-04110A | Lock Washer Price: $4.55 |
| 15 | 791-182414 | Bolt Price: $3.96 |
| 16 | 753-04456 | SPRING-DOOR Not Available Price: |
| 17 | 732-04092A | DOOR LOCK CLIP Not Available Price: |
| 18 | 753-04454 | DOOR-VAC Not Available Price: |
| 19 | 791-182424 | MOUNTING PLATE HARDWARE Not Available Price: |
| 20 | 791-182647 | TUBE, BLOWER (HIGH Not Available Price: |
| 21 | 791-180466 | TUBE, UPPER VACUUM (ELEC BLWR- Not Available Price: |
| 22 | 791-180467 | Lower Vacuum Tube Price: $33.37 |
